As global demand for steel pipes continues to grow in industries such as construction, infrastructure, furniture manufacturing, automotive production, and oil & gas transportation, ERW tube mills have become one of the most important production systems in modern steel pipe manufacturing.
For many beginners entering the steel pipe industry, understanding how an ERW tube mill works is the first step toward selecting the right equipment and improving production efficiency.
This guide explains the basic working principle, main components, applications, and advanta
ges of an ERW tube mill in a simple and professional way.
ERW stands for Electric Resistance Welding.
In the tube manufacturing process, steel strip edges are heated by high-frequency electrical current and then welded together under pressure to form a strong and continuous weld seam. Unlike traditional welding methods that use filler materials, ERW welding relies on electrical resistance heat generated between the steel edges.
Because of its high efficiency, stable quality, and lower production cost, ERW technology is widely used in steel pipe manufacturing worldwide.

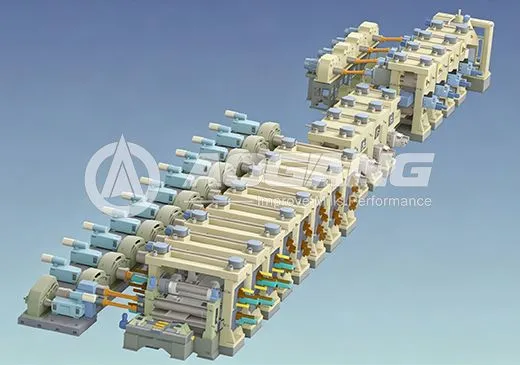

An ERW tube mill is a complete production line used to manufacture welded steel pipes and tubes from steel coils.
The production line gradually forms flat steel strip into a round tube shape through a series of forming rollers. After forming, the tube edges are welded together using high-frequency welding technology. The welded tube then passes through sizing, straightening, cutting, and collection systems to become finished steel pipes.
· Round pipes
· Square tubes
· Rectangular tubes
· Structural steel tubes
· Industrial pipes
The system is widely used for both light-duty and heavy-duty steel pipe production.
The production process of an ERW tube mill usually includes the following stages:
Steel coils are loaded onto the decoiler section and continuously fed into the production line.
The strip head is flattened and aligned to ensure stable feeding into the forming section.
Multiple roller stands gradually bend the flat steel strip into a tubular shape.
The open tube edges are heated by high-frequency current and pressed together to create a strong weld seam.
The external weld bead is removed and the weld area is cooled.
Sizing rollers adjust the final pipe diameter and improve dimensional accuracy.
A flying saw cuts the continuous tube into preset lengths without stopping production.
Finished pipes are transferred to the unloading or packaging area.
A complete ERW tube mill production line generally includes:
· Decoiler
· Forming machine
· Sizing machine
· Run-out table
· PLC control system
Modern automated systems can significantly improve production stability and reduce labor costs.
ERW tube mills are suitable for processing various steel materials, including:
· Carbon steel
· Galvanized steel
· Stainless steel
· Low alloy steel
The material selection depends on the final pipe application and customer requirements.
ERW steel pipes are widely used in many industries due to their high strength and cost efficiency.
Common applications include:
· Construction structures
· Water supply pipelines
· Furniture manufacturing
· Scaffolding systems
· Greenhouse pipes
· Automotive tubes
· Mechanical tubing
· Oil & gas transportation
· Solar structure systems
Because of their versatility, ERW tube mills are essential equipment for many steel processing factories.
Compared with traditional pipe manufacturing methods, ERW tube mills offer several important advantages.
Continuous production allows high output speeds and stable operation.
ERW production consumes less material and energy compared with seamless pipe manufacturing.
High-frequency welding technology ensures strong and consistent weld seams.
Modern PLC systems help reduce manual operation and improve accuracy.
One production line can often produce multiple pipe specifications after roller adjustments.
Many customers compare ERW pipes with seamless pipes before purchasing equipment.
ERW pipes are manufactured by welding steel strip edges together, while seamless pipes are produced without welding seams.
ERW pipe production offers:
· Higher efficiency
· Lower production cost
· Faster production speed
· Better dimensional consistency
Seamless pipes are generally used in extremely high-pressure applications, while ERW pipes are widely used for structural and industrial purposes.
When selecting an ERW tube mill, manufacturers usually consider several factors:
· Pipe diameter range
· Wall thickness
· Production speed
· Material type
· Automation level
· Factory space
· Future expansion requirements
Choosing an experienced tube mill manufacturer can help ensure stable production performance and long-term reliability.
With the development of intelligent manufacturing, modern ERW tube mills are becoming more automated and energy-efficient.
Future production lines are focusing on:
· Fully automatic operation
· Faster size change systems
· Lower energy consumption
· Intelligent fault diagnosis
· Higher precision forming technology
These improvements help manufacturers increase competitiveness and reduce operating costs.
An ERW tube mill is one of the core production systems in modern steel pipe manufacturing. By combining high-frequency welding technology with automated forming and sizing systems, ERW tube mills provide efficient, reliable, and cost-effective pipe production solutions for a wide range of industries.
As global demand for steel tubes continues to grow, investing in advanced ERW tube mill technology can help manufacturers improve production efficiency, product quality, and long-term profitability.
ERW pipes are manufactured by welding steel strip edges together using high-frequency welding technology, while seamless pipes are produced without any welding seam. ERW pipes offer higher production efficiency and lower manufacturing cost, while seamless pipes are commonly used in extremely high-pressure applications.
ERW tube mills can process various materials, including carbon steel, galvanized steel, stainless steel, and low-alloy steel. The material selection depends on the final pipe application and production requirements.
ERW steel pipes are widely used in construction, furniture manufacturing, water transportation, scaffolding systems, automotive production, oil & gas pipelines, greenhouse structures, and many other industrial applications.
Production speed depends on pipe size, wall thickness, and machine configuration. Modern high-speed ERW tube mills can typically produce steel pipes at speeds ranging from 30 to 120 meters per minute.
Yes. Modern high-frequency ERW welding technology provides strong and stable weld seams suitable for many industrial, structural, and transportation applications.
Aogang provides customized ERW tube mill machines for round pipes, square tubes, and industrial steel pipe production. Our production lines support different pipe diameters, wall thicknesses, and automation requirements for global steel manufacturers.
Contact us today to discuss your tube mill project and production requirements.
