Steel Pipe Bundling Machine for Tube Mill Line

Steel Pipe Bundling Machine

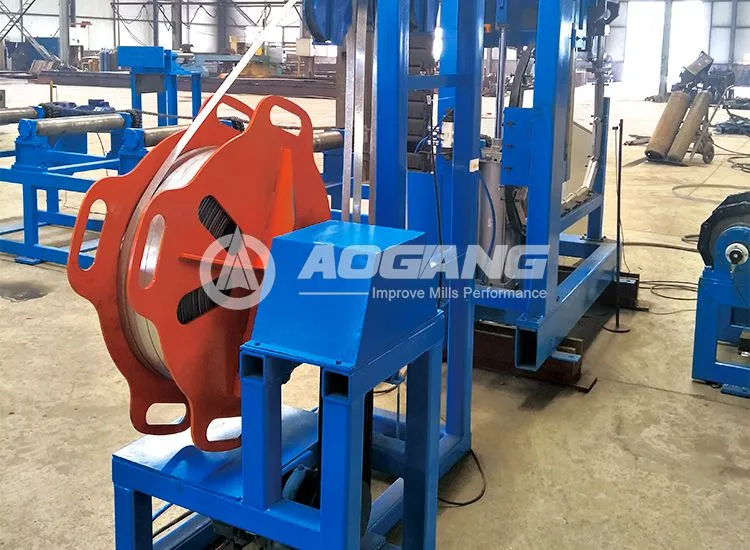

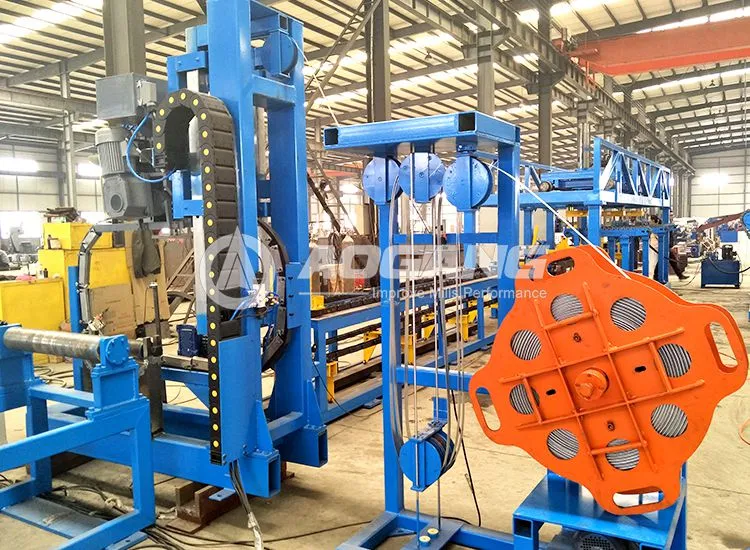

The Steel Pipe Bundling Machine is an intelligent packaging solution that combines pipe collection, organized stacking, and automatic strapping into a single system. It efficiently bundles round, square, and rectangular pipes into hexagonal or square packages. Fully automated with no manual intervention, the machine significantly improves packaging efficiency, enhances production safety, and serves as essential terminal automation equipment for modern steel pipe production lines.

Inquire Now + Next Product +

Product Description

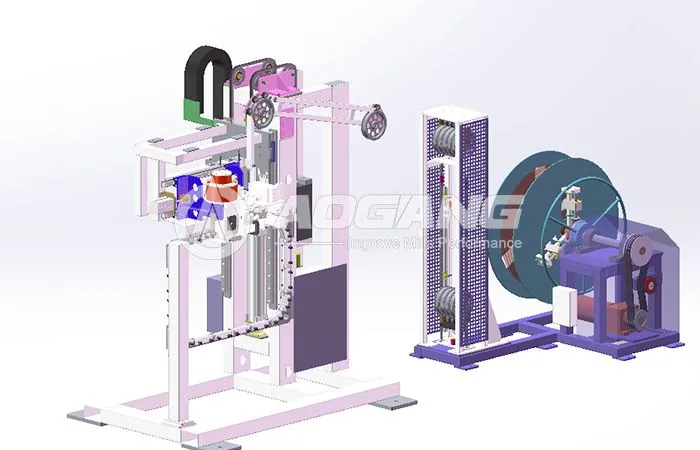

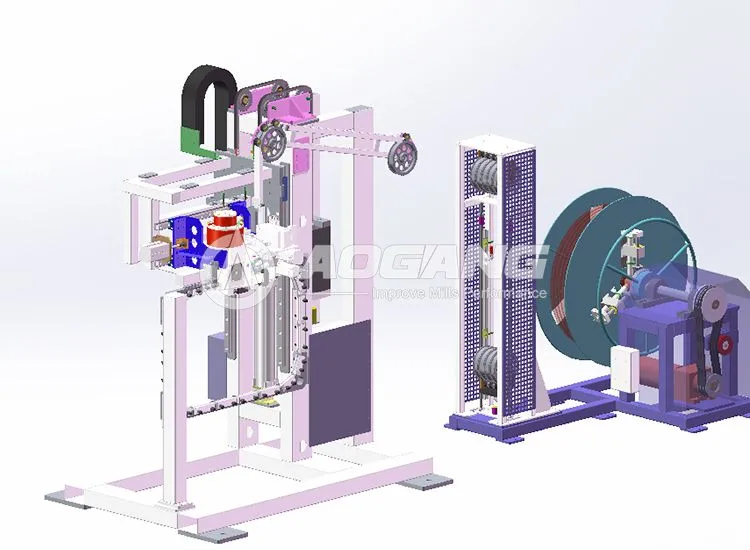

Aogang’s Steel Pipe Bundling Machine is designed with a modular structure, offering dedicated systems for round pipes, square/rectangular pipes, and integrated multifunctional solutions to meet diverse production requirements. The machine operates reliably with a high level of automation and can seamlessly connect to high-speed welding and roll forming lines, ensuring continuous and efficient production.

Round Pipe Strapping System

Suitable for round pipes with diameters from φ20 mm to φ325 mm, this system fully automates arranging, transferring, and strapping processes for maximum efficiency.

Square/Rectangular Pipe Strapping System

Handles square and rectangular pipes ranging from 20×20 mm to 400×400 mm, ideal for structural and industrial applications requiring precise and reliable packaging.

Integrated Round & Square Pipe System

A versatile solution compatible with both round and square pipes. Quick switching between pipe types ensures high efficiency, particularly for production lines handling multiple product specifications.

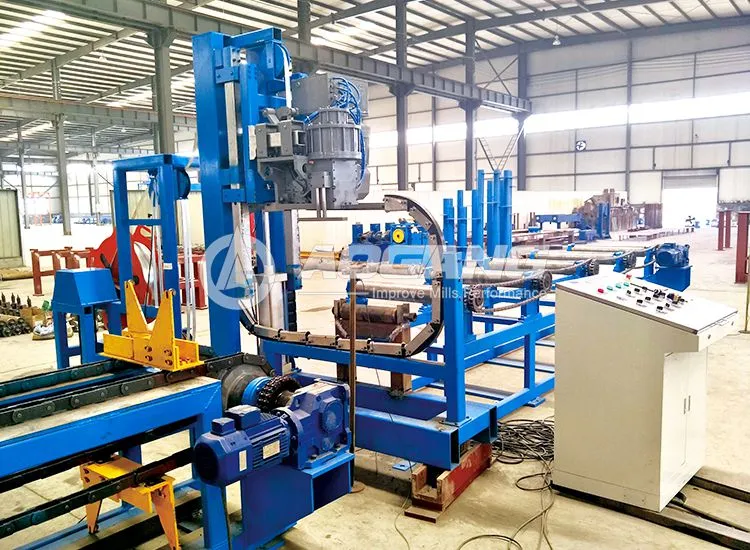

Aogang Steel Pipe Bundling Machine for tube mill lines

Product Advantages

Fully Automated Operation

From bundle alignment to strapping completion, the entire process runs automatically, reducing labor costs.

Flexible Strapping Modes

Supports hexagonal and square bundle formats to meet different storage and transportation needs.

High Stability

Operates reliably in sync with high-speed production lines, ensuring uninterrupted and efficient workflow.

Smart Detection & Precise Control

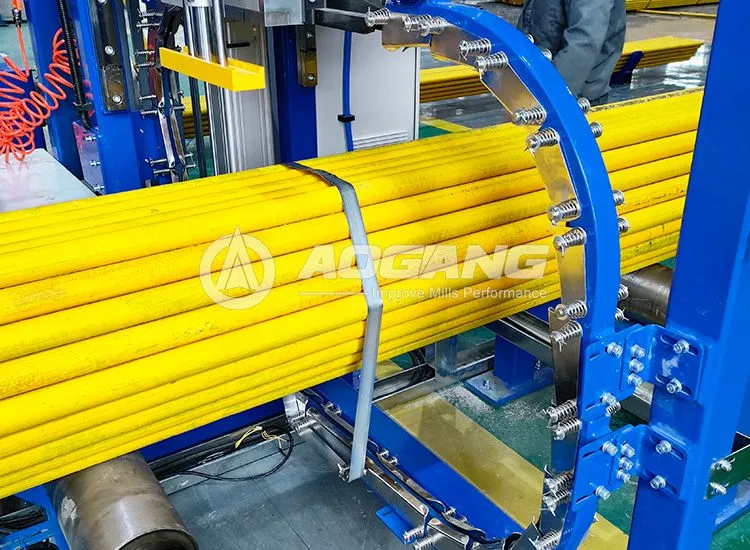

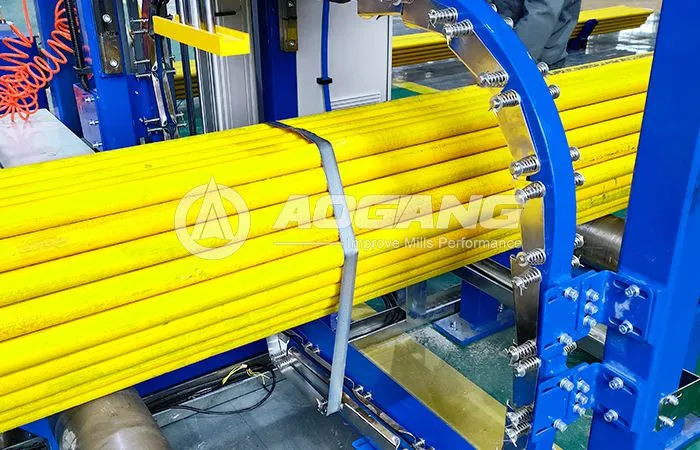

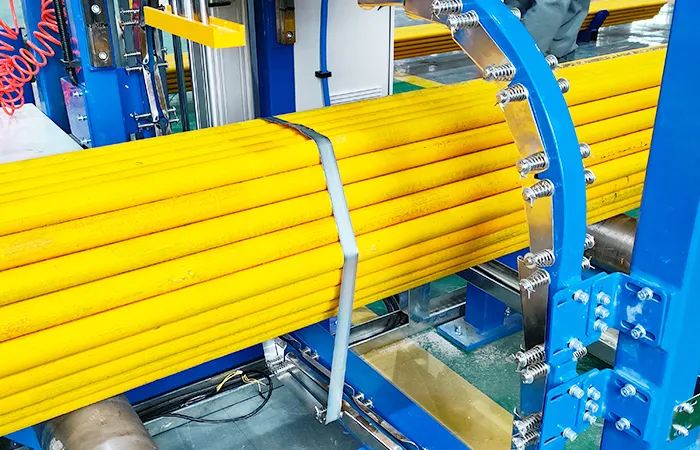

Automatically detects bundle position and applies accurate strapping tension, ensuring uniform, secure, and visually appealing bundles.

Strong Compatibility

Easily adapts to multiple pipe specifications, enabling quick switching and allowing one system to serve multiple production lines.

Reduced Labor and Improved Safety

Fully automated stacking and strapping minimize manual handling, reducing labor costs and workplace risks while ensuring consistent, high-quality bundles.

Steel Pipe Bundling Machine Technical Parameters

Customized as per customer requirements

Comparison Item	Automatic Stacking	Manual Stacking
Packing Method	Computer control, automatic stacking, alignment	Manual stacking, alignment
Amount of Personnel	No need for labor	At least 2 people or more
Labor Intensity	Just operate, no manpower required after adjustment	High labor intensity
Line Speed	Beyond the line speed, it can be increased more than 20%	Restrict the line speed
Safety	No safety hazards	Easy to cause work injuries
Noise	Low noise	Loud noise
Tube Quality	No appearance effect, good tube quality	Easy to bump, affecting the appearance and quality of the tube
Scalability	It can be connected with automatic bundling to realize database management, and can realize automatic empty water, weighing, length measurement and marking.	No expansion space, completely dependent on manpower
Value for Money	One-time investment, recoverable investment in a short period of time	Long-term investment, frequent staff changes, difficulty in recruiting
