High Frequency Solid State Welder

The High Frequency Solid State Welder serves as the core power source in modern welded pipe production lines, specifically designed for efficient and high-quality welding of precision tubes. It incorporates advanced solid-state power technology, combining high efficiency, superior stability, and exceptional energy savings. It is an ideal choice for ERW pipe mills seeking to enhance both production capacity and product quality.

Inquire Now + Next Product +

Product Description

The High Frequency Solid State Welder is designed for ERW pipe mills, welded tube factories, and pipe production lines. It is suitable for manufacturing precision round steel pipes with an outer diameter ranging from 8mm to 25mm and a wall thickness between 0.3mm and 1.2mm, as well as square and rectangular tubes of corresponding dimensions. Its outstanding performance enables it to easily handle welding challenges for various metal materials, including carbon steel, stainless steel, aluminum, and copper. It meets the stringent demands for high-quality pipes across industries such as furniture, automotive, construction, and HVAC.

Frequently Asked Questions About Solid State Welder

1. What is a solid state welder?

A solid state welder is a high-frequency welding power source designed for continuous welding in ERW pipe and tube production. It provides stable and precise high-frequency power to ensure consistent weld quality and reliable production performance.

2. What is a solid state high frequency welder used for?

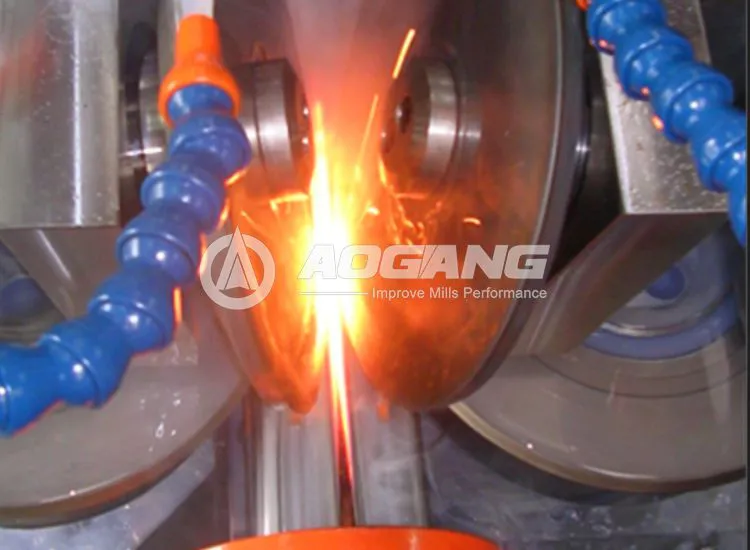

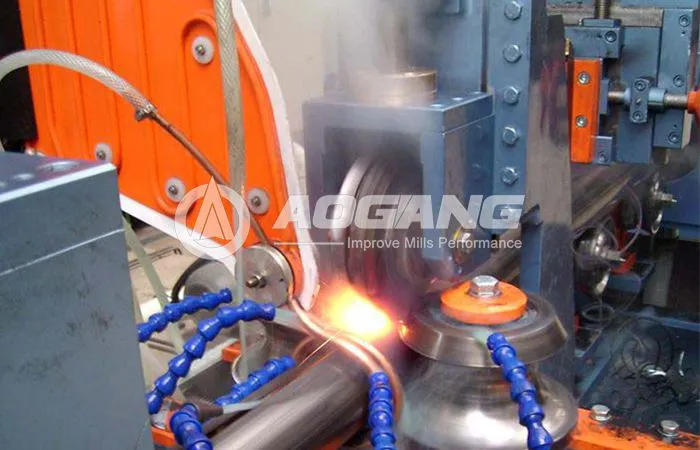

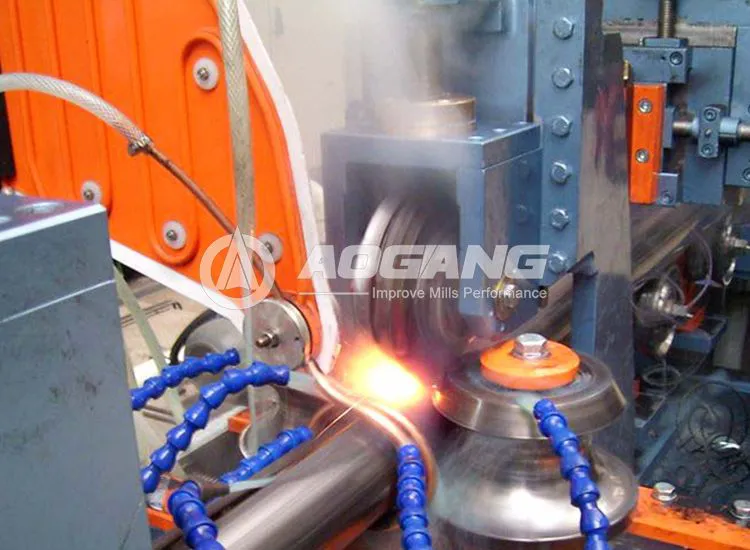

A solid state high frequency welder is used to heat and weld the edges of steel strip during ERW pipe and tube manufacturing. It supports efficient continuous welding and stable production of round, square, and rectangular tubes.

3. Can a solid state HF welder be used for ERW pipe mills?

Yes. The solid state HF welder is designed for ERW pipe mills, welded tube factories, and pipe production lines. It provides stable high-frequency welding power for different pipe specifications and production requirements.

4. What are the advantages of a solid state welding machine?

A solid state welding machine offers high efficiency, stable power output, precise control, and reduced energy consumption. These features help improve welding consistency, production efficiency, and overall operating stability.

5. What materials can the High Frequency Solid State Welder process?

The High Frequency Solid State Welder can be configured for different metal materials according to production requirements, including carbon steel, stainless steel, aluminum, and copper.

Product Advantages

High Efficiency & Energy Savings

Utilizes high-frequency inverter technology for high conversion efficiency and fast welding speed.

Stability & Reliability

Features an all-solid-state power structure with no vulnerable parts, low failure rate, and supports 24/7 continuous operation.

Strong Adaptability

Capable of welding multiple materials, with a wide power range suitable for various specifications and production needs.

Intelligent Control

User-friendly system with precise control, supports parameter customization, and enables easy integration and process optimization.

Low Maintenance-Easy Operation

Designed for minimal upkeep with simplified maintenance procedures, reducing downtime and operational costs.

Durable & Long Service Life

Built with high-quality components to withstand continuous industrial operation, ensuring long-term reliability.

High Frequency Solid State Welder Technical Parameters

Customized as per customer requirements

Model	AC Input	Rated DC Voltage	Rated DC Current	Frequency Range
GGP60-0.8-H	3AC380V 50/60Hz	450V	130A	650~800 kHz
GGP100-0.45-H	3AC380V 50/60Hz	450V	220A	400~450 kHz
GGP150-0.4-H	3AC380V 50/60Hz	450V	330A	350~400 kHz
GGP200-0.35-H	3AC380V 50/60Hz	450V	440A	300~350 kHz
GGP250-0.3-H	3AC380V 50/60Hz	450V	550A	250~300 kHz
GGP300-0.3-H	3AC380V 50/60Hz	450V	660A	250~300 kHz
GGP400-0.3-H	3AC380V 50/60Hz	450V	880A	250~300 kHz
GGP500-0.2-H	3AC380V 50/60Hz	450V	1100A	150~200 kHz
GGP600-0.2-H	3AC380V 50/60Hz	450V	1300A	150~200 kHz
GGP700-0.2-H	3AC380V 50/60Hz	450V	1500A	150~200 kHz
GGP800-0.2-H	3AC380V 50/60Hz	450V	1800A	150~200 kHz
GGP1000-0.2-H	3AC380V 50/60Hz	450V	2200A	150~200 kHz
GGP1200-0.2-H	3AC380V 50/60Hz	450V	2700A	150~200 kHz
GGP1400-0.15-H	3AC380V 50/60Hz	450V	3100A	100~150 kHz
GGP1600-0.15-H	3AC380V 50/60Hz	450V	3600A	100~150 kHz
GGP1800-0.15-H	3AC380V 50/60Hz	450V	4000A	100~150 kHz

High Frequency Solid State Welder Video Introduction

Through these video cases, you can directly experience Aogang’s strength and craftsmanship in high-end manufacturing—from precise installation and commissioning to the stable and efficient performance of our equipment. We provide fully customizable production lines to help customers achieve intelligent, one-stop solutions.

ERW 76 Tube mill

The ERW 76 Tube Mill is a high-efficiency pipe making machine designed for the production of round, square, and rectangular steel pipes. Suitable for pipe diameters ranging from 22mm to 76mm and wall thicknesses from 0.9mm to 4.0mm, this machine delivers stable HF welding performance, precise forming accuracy, and reliable continuous operation.

ERW 89 Tube Mill

The ERW 89 tube mill is a high-efficiency pipe making machine designed for the production of small and medium-diameter welded steel pipes. It is suitable for round pipes with an outer diameter of 22–76 mm and a wall thickness of 0.9–4.0 mm, and can also produce corresponding square and rectangular tubes.

ERW 127 Tube mill

ERW127 tube mill is designed for the production of round steel pipes with an outer diameter of 48 mm – 127 mm and a wall thickness of 1.5 mm – 5.0 mm, as well as corresponding square and rectangular tubes. The line features stable forming, reliable high-frequency welding, high production efficiency, and convenient operation.

ERW 165 Tube mill

ERW165 tube mill/pipe mill/welded pipe production/pipe making machine is used to produce steel pipes of 60mm-165mm in OD and 2.0mm-6.0mm in wall thickness, as well as corresponding square and rectangular pipe. It is widely used in construction, automotive, furniture, agricultural sectors, and other fields, featuring high stability and low defect rates. Customized motor configurations are also supported.

ERW 273 Tube Mill

The ERW 273 Tube Mill is a high-efficiency straight seam welding machine designed for medium to large-diameter steel pipe production, capable of manufacturing round, square, and rectangular pipes with an outer diameter of up to 273 mm. It adopts mature high-frequency resistance welding (HFRW) technology to achieve continuous production from steel strip to finished pipe. The production line operates stably with high forming precision, making it ideal for large-scale manufacturing across various industrial sectors.

ERW325 Tube Mill

The ERW325 tube mill is designed to produce round steel pipes with an outer diameter of 165mm–325mm and wall thickness of 3.0mm–14.0mm. It can also manufacture corresponding square and rectangular pipes. The line integrates processes such as decoiling, forming, high-frequency welding, sizing, and cutting, enabling continuous and efficient production. It is especially suitable for medium to large-size steel pipe manufacturing.
