Cold Flying Saw Machine for Tube Mill | Aogang

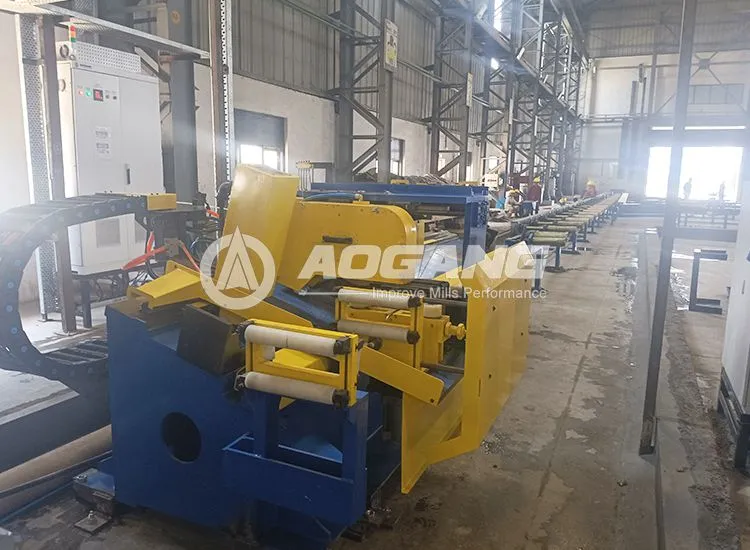

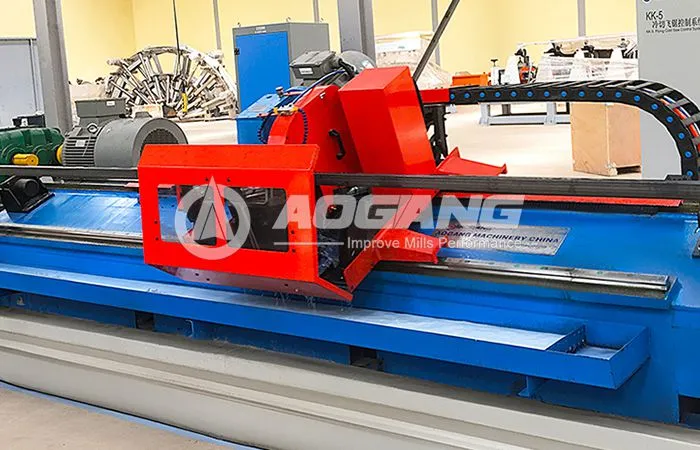

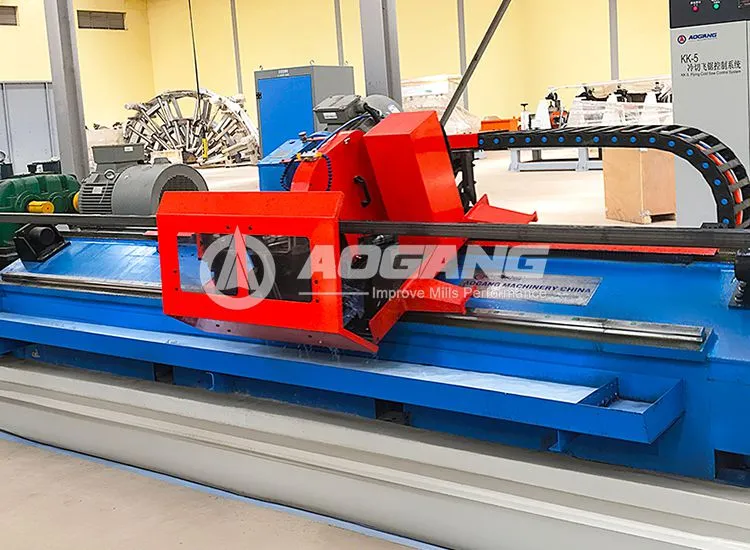

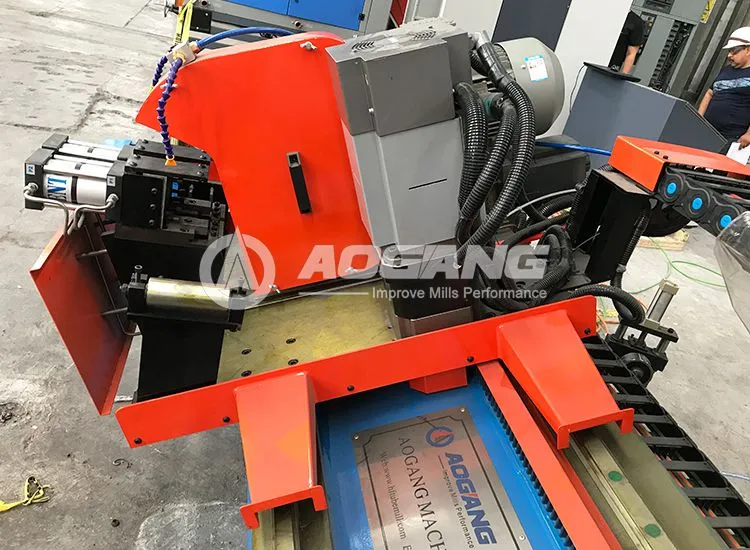

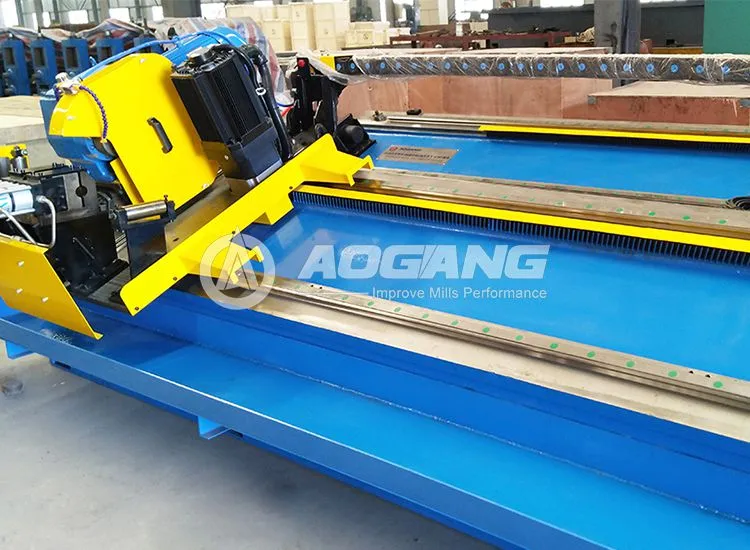

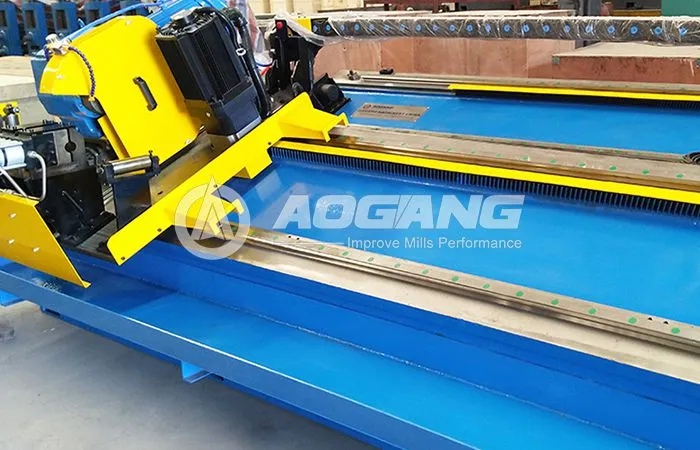

Cold Flying Saw Machine

The Cold Flying Saw Machine is an intelligent, high-precision pipe cutting solution designed for welded tube production lines. It supports high-speed online synchronous cutting as well as automated offline cutting operations.The machine is suitable for precision length cutting of round, square, rectangular, and other pipe profiles. With smooth, burr-free cuts that require no chamfering, the Cold Flying Saw Machine significantly improves cutting efficiency and enhances the finished product quality of welded pipe production lines.

Inquire Now + Next Product +

Product Description

Designed for modern welded pipe production lines, the Cold Flying Saw Machine enables precise synchronous cutting while pipes are moving at high speeds, supporting both continuous online production and flexible offline processing.

Equipped with an intelligent control system and a high-rigidity machine structure, it ensures stable cutting accuracy and consistent performance across a wide range of pipe materials, including carbon steel, stainless steel, and aluminum.

Backed by Aogang’s extensive experience in tube mill manufacturing, the equipment features reliable component selection, precise assembly, and optimized process integration. It is widely applied in furniture, automotive, construction, and other welded pipe industries where cutting quality and production stability are critical.

Product Advantages

One-Touch Calibration

Automatic tool alignment after blade changes, saving time and ensuring precise cutting.

Anti-Breakage Design

Three-saw clamping provides greater stability for large-diameter pipes, preventing jams and breakage.

Intelligent Anti-Collision

Dual buffering and emergency stop systems protect the equipment from abnormal operating conditions, ensuring safety and reliability.

Dual System Options

High-end Siemens or cost-effective self-developed control systems allow flexible adaptation to different production requirements.

High Cutting Accuracy

Precision-engineered saw blades and stable feed control ensure clean, accurate cuts, minimizing material waste and improving overall product quality.

Easy Maintenance

Modular design allows quick access to key components, simplifying routine maintenance, reducing downtime, and lowering operational costs.

Cold Flying Saw Machine Technical Parameters

Customized as per customer requirements

Model No.	Steel pipe diameter (mm)	Steel pipe thickness (mm)	Max Speed (M/min)
Φ25	Φ6-30	0.3-2.0	130
Φ32	Φ8-38	0.3-2.0	120
Φ50	Φ20-63.5	0.6-2.5	110
Φ76	Φ25-76	0.8-3.0	90
Φ89	Φ25-105	0.8-4.0	80
Φ114	Φ50-130	1.2-5.0	60
Φ165	Φ80-165	2.0-6.0	50

Cold Flying Saw Machine Video Introduction

Through these video cases, you can directly experience Aogang’s strength and craftsmanship in high-end manufacturing—from precise installation and commissioning to the stable and efficient performance of our equipment. We provide fully customizable production lines to help customers achieve intelligent, one-stop solutions.

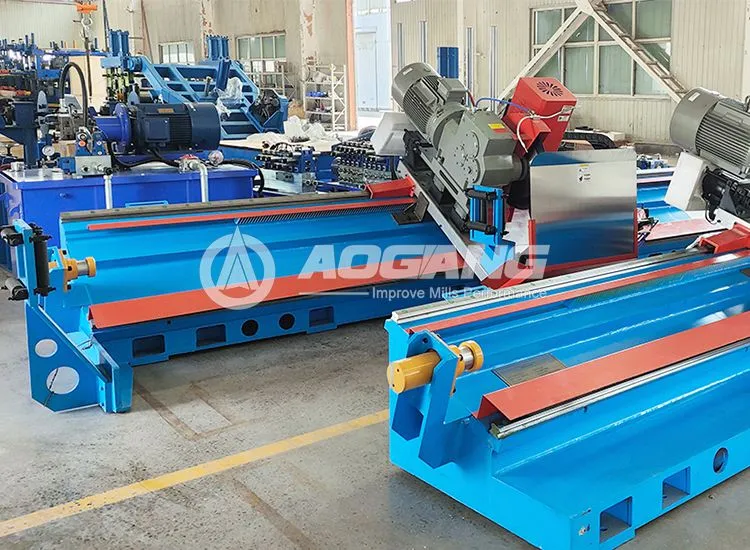

NC Milling Saw for Tube Mill

The NC milling saw is a high-precision and high-efficiency CNC cutting machine, specially designed for the end-face processing of steel pipes and other metal profiles. Equipped with Siemens motion control systems, it automatically programs the cutting path based on the tube’s cross-sectional shape, enabling intelligent profiling and milling. With cold milling technology, smooth cutting surfaces, and intelligent automation, it is widely used in welded pipe, structural tube, and fluid pipe production lines.

Steel Pipe Bundling Machine

The Steel Pipe Bundling Machine is an intelligent packaging solution that combines pipe collection, organized stacking, and automatic strapping into a single system. It efficiently bundles round, square, and rectangular pipes into hexagonal or square packages. Fully automated with no manual intervention, the machine significantly improves packaging efficiency, enhances production safety, and serves as essential terminal automation equipment for modern steel pipe production lines.

Steel Pipe Stacking Machine

The Auto Stacking Machine is specially designed for steel pipe production lines. It automatically collects finished pipes and stacks them neatly into hexagonal or square bundles, without the need for manual intervention. Featuring a high degree of automation, stable operation, and adaptability to different pipe sizes and materials, this machine improves production efficiency and ensures product consistency.

High Frequency Solid State Welder

The HF Solid-State High-Frequency Welder serves as the core power source in modern welded pipe production lines, specifically designed for efficient and high-quality welding of precision tubes. It incorporates advanced solid-state power technology, combining high efficiency, superior stability, and exceptional energy savings. It is an ideal choice for ERW pipe mills seeking to enhance both production capacity and product quality.

Uncoiler Machine

The uncoiler machine for tube mill is an essential front-end equipment designed for smoothly feeding steel coils into the tube mill line. It ensures stable coil unwinding, reduces material tension, and guarantees continuous and efficient tube production.

Horizontal Accumulator for Tube Mill

The horizontal accumulator is an advanced strip storage device designed for tube mill lines. It ensures continuous strip feeding during coil change, welding, or shear operations, allowing the tube mill to run without interruption. With high storage capacity, smooth strip handling, and energy-efficient performance, the horizontal accumulator is an essential component for modern, high-speed welded pipe production lines.
