CUT to LENGTH MACHINE
Aogang Machinery Co., Ltd.
Aogang Machinery Co., Ltd.

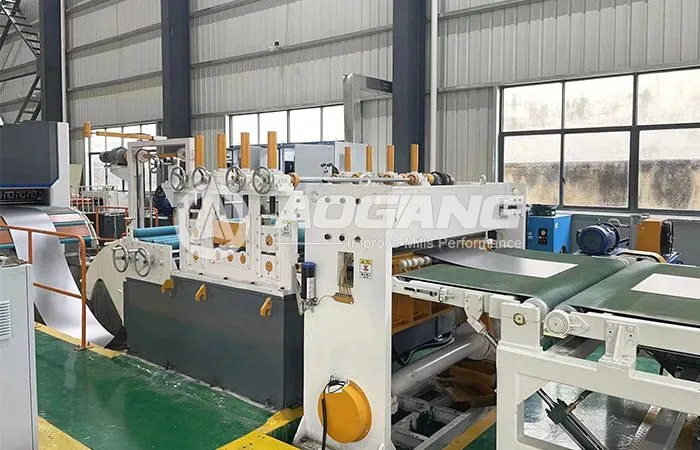

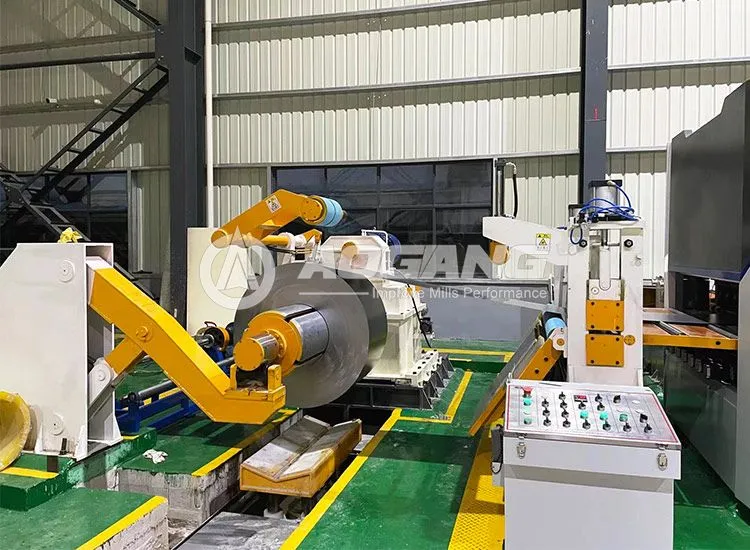

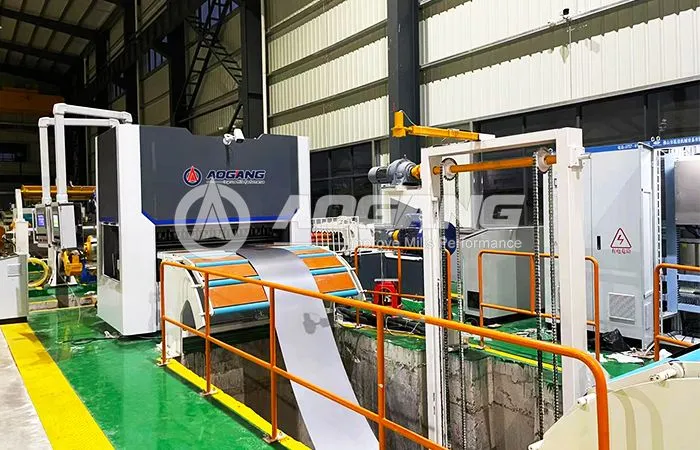

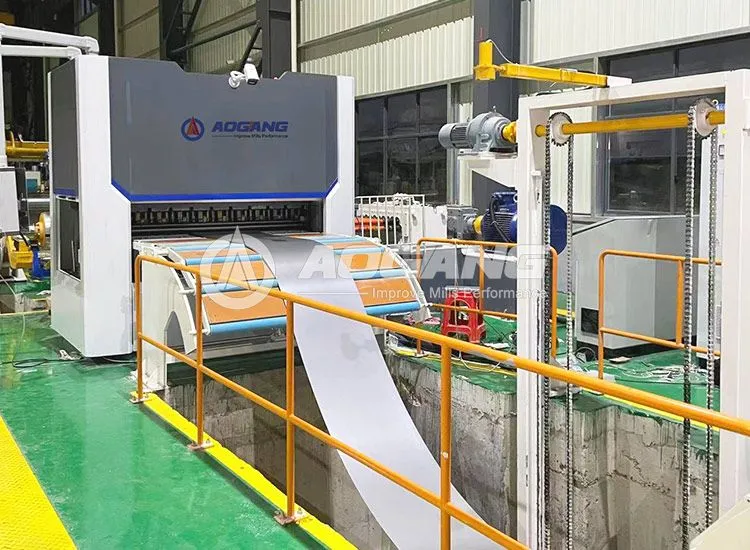

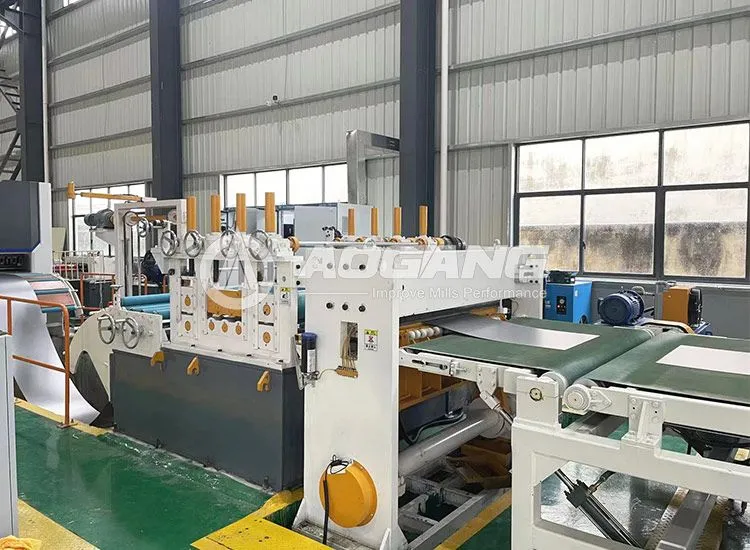

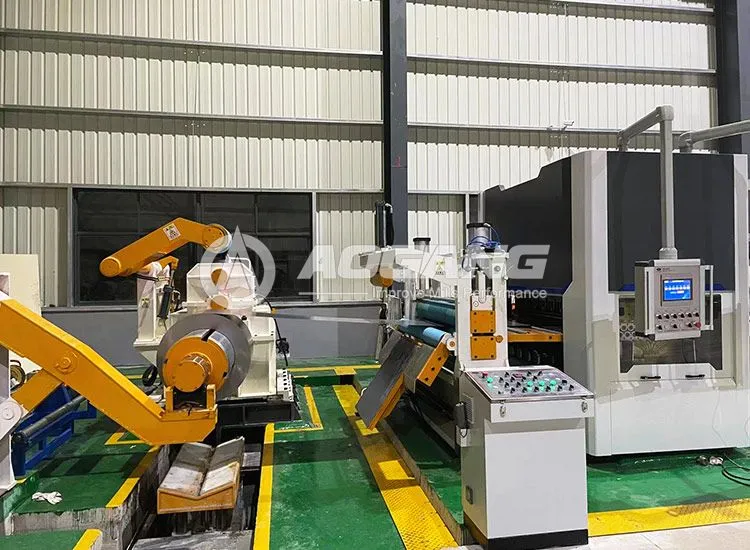

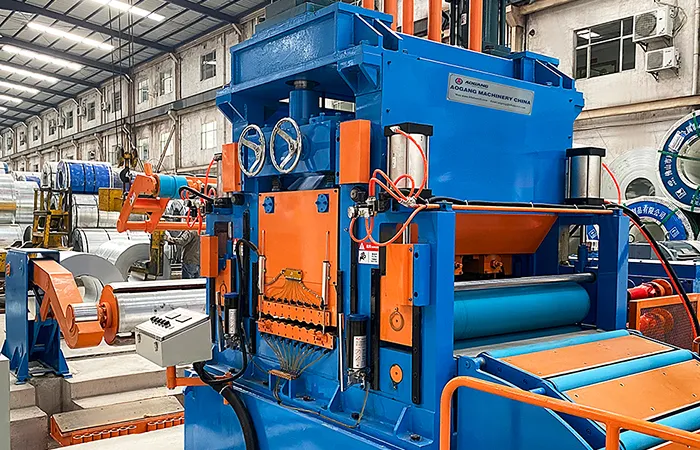

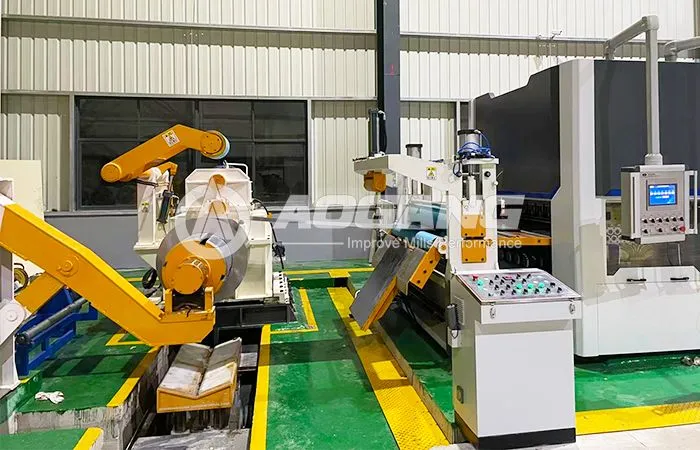

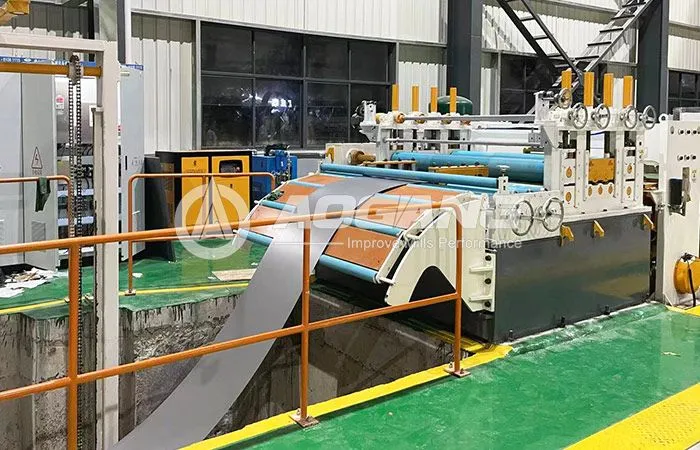

The Aogang Coil Cut to Length Line is designed to uncoil, level, and cut metal coils into flat sheets of predetermined lengths with high precision and efficiency. It is suitable for processing cold-rolled steel, hot-rolled steel, galvanized steel, stainless steel, silicon steel, aluminum, and other metal coils, making it ideal for steel service centers, construction, home appliances, automotive, machinery manufacturing, and other precision sheet processing industries. The equipment is a complete cut to length machine solution that can be customized according to different coil processing requirements.
The production line integrates uncoiling, leveling, precision feeding, cut-to-length shearing, automatic stacking, and discharge into a continuous automated process. Advanced leveling technology ensures excellent sheet flatness, while the precision shearing system delivers accurate cut lengths and clean, burr-free sheet edges.
Designed with a modular structure and an intelligent control system, the equipment can be customized according to material type, coil width, thickness, cut length, production capacity, automation level, and factory layout to meet different production requirements. Automatic stacking and material handling systems further improve production efficiency while reducing labor requirements.
A: The production line is suitable for processing cold-rolled steel, hot-rolled steel, galvanized steel, stainless steel, silicon steel, aluminum, and other metal coils. Customized configurations are available for different material specifications.
A: The processing thickness depends on the selected model and customer requirements. Aogang provides customized cut to length line solutions for light gauge, medium gauge, and heavy gauge metal coil processing.
A: Yes. The production line can be customized according to coil width, material thickness, cut length, production speed, automation level, and factory layout to meet different manufacturing requirements.
A: The equipment is widely used in steel service centers, construction, home appliances, automotive, machinery manufacturing, electrical equipment, metal fabrication, and other industries requiring precision sheet processing.
A: Aogang provides complete technical support, including project consultation, equipment design, manufacturing, installation, commissioning, operator training, spare parts supply, remote technical assistance, and long-term maintenance services throughout the equipment lifecycle.
Cutting length accuracy up to ±0.5 mm, ensuring consistent sheet length.
Flat, burr-free sheets with excellent surface quality.
PLC + servo control system for synchronized operation and minimal human error.
Customizable line speed, coil width, and cutting length range according to customer requirements.
Robust equipment design with long service life and easy maintenance.
Optimized hydraulic and electrical systems reduce energy consumption.
| Model | Material Width (mm) | Thickness Range (mm) | Speed (m/min) |
| CTL600 | 120-600 | 0.3-2.0 | 10-120 |
| CTL800 | 120-800 | 0.7-3.5 | 10-80 |
| CTL1300 | 400-1300 | 0.8-4.5 | 10-60 |
| CTL1600 | 600-1600 | 2.0-6.0 | 10-60 |
| CTL1800 | 900-1800 | 3.0-8.0 | 10-60 |
| CTL2000 | 1000-2000 | 6.0-16.0 | 10-30 |
| CTL2200 | 1000-2200 | 8.0-20.0 | 10-20 |
| CTL2500 | 1000-2500 | 8.0-20.0 | 10-20 |
Through these video cases, you can directly experience Aogang’s strength and craftsmanship in high-end manufacturing—from precise installation and commissioning to the stable and efficient performance of our equipment. We provide fully customizable production lines to help customers achieve intelligent, one-stop solutions.
