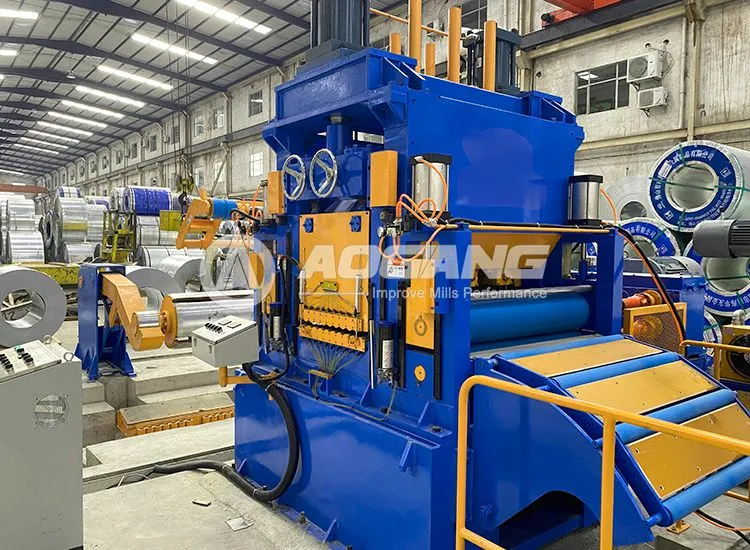

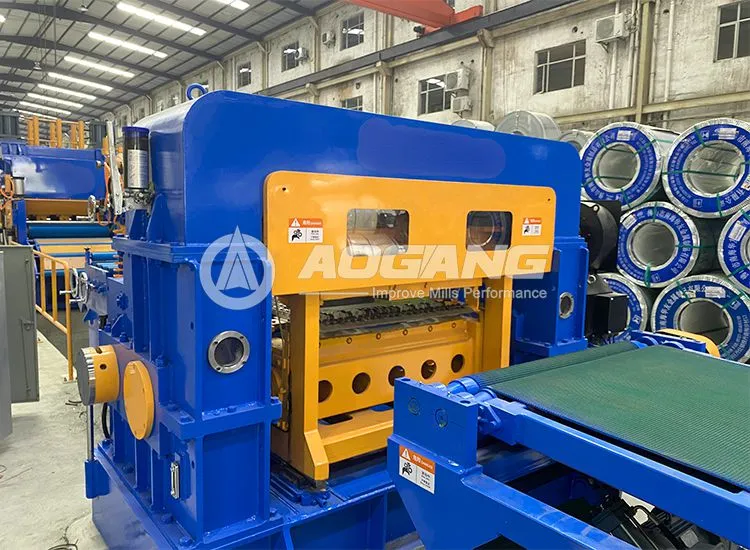

The Aogang Heavy Gauge Cut to Length Machine is designed for precision processing of thick steel plates and heavy-gauge steel coils. It is suitable for carbon steel, hot-rolled steel, high-strength steel, stainless steel, and alloy steel. Featuring high-rigidity leveling technology and precision shearing, the CTL Line delivers excellent sheet flatness, accurate cut lengths, and reliable performance for demanding heavy-duty metal processing applications.

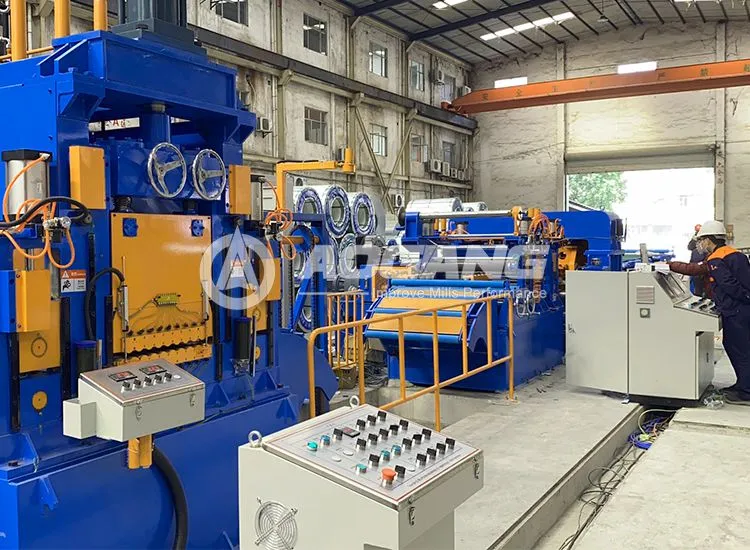

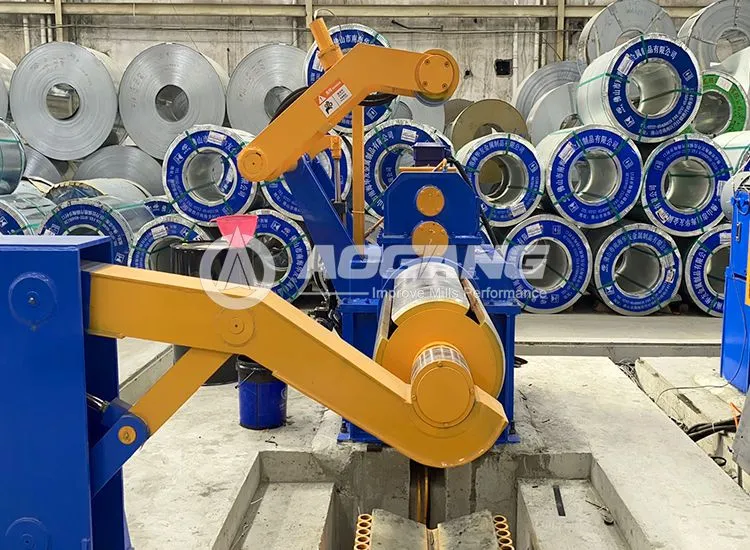

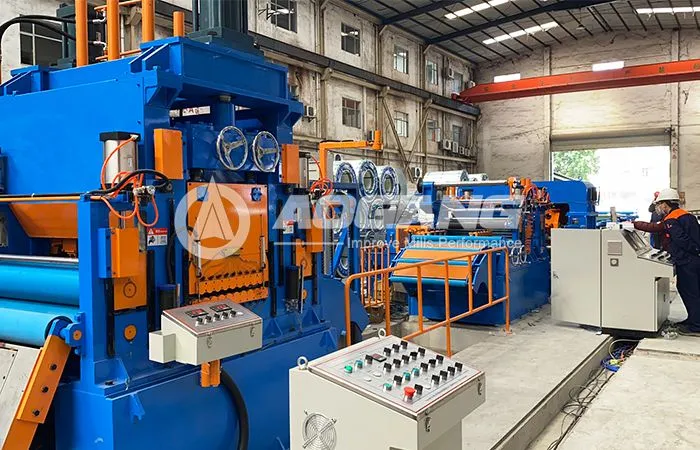

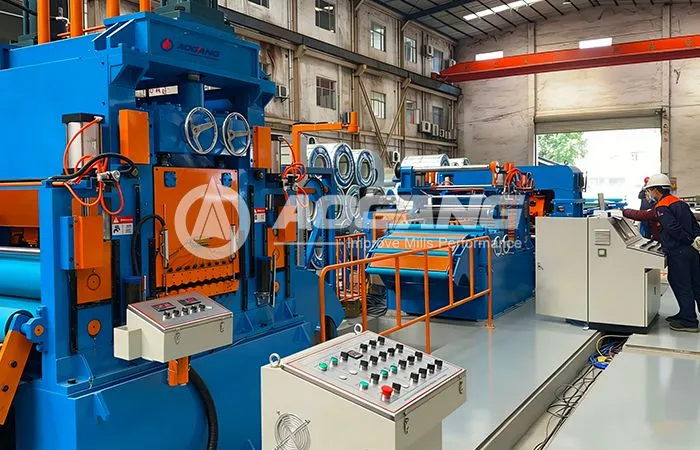

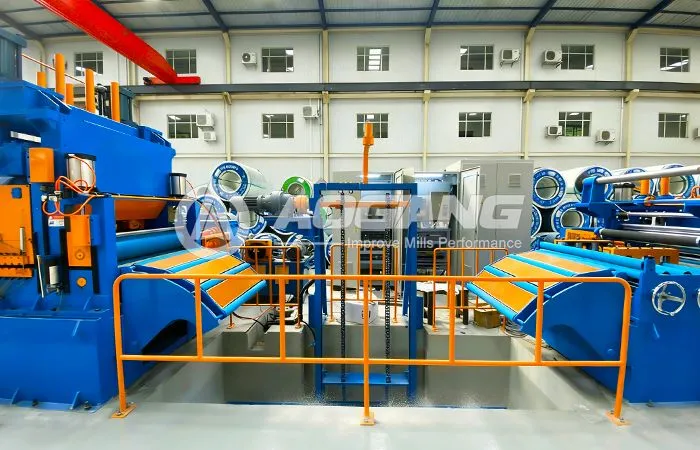

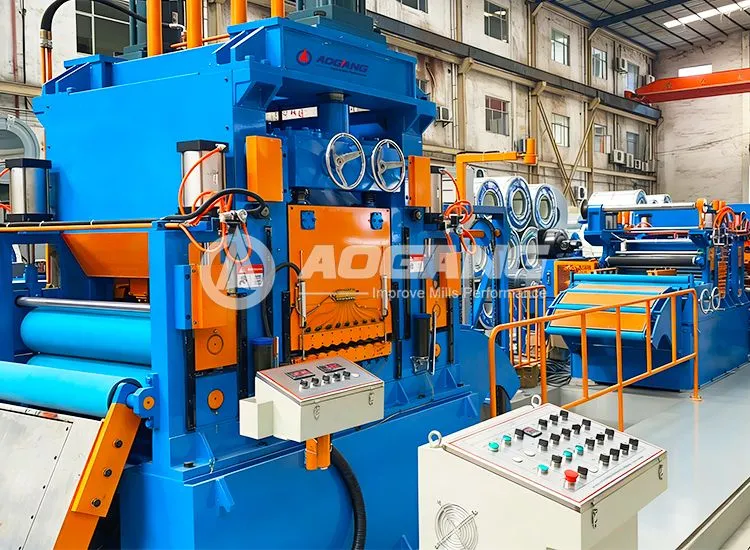

The Aogang Heavy Gauge Cut to Length Line integrates uncoiling, leveling, precision feeding, cut-to-length shearing, automatic stacking, and discharge into a highly automated production line. It is widely used in shipbuilding, bridge construction, steel structures, heavy machinery, energy equipment, and steel service centers requiring high-precision heavy plate processing.

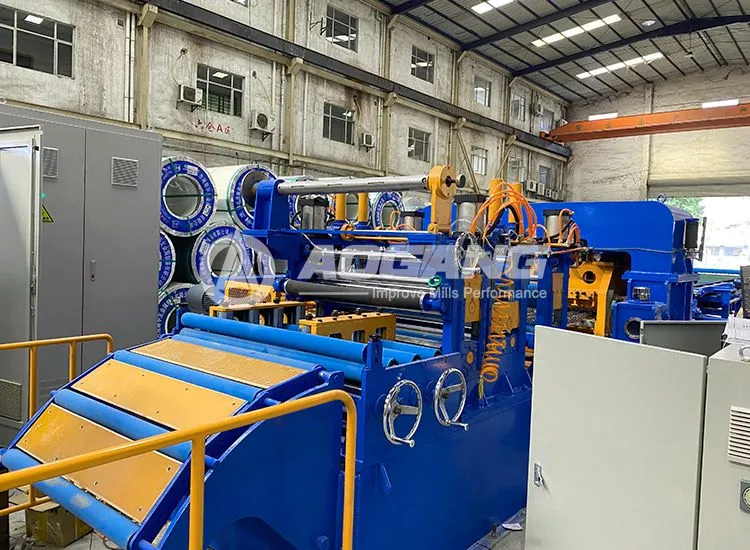

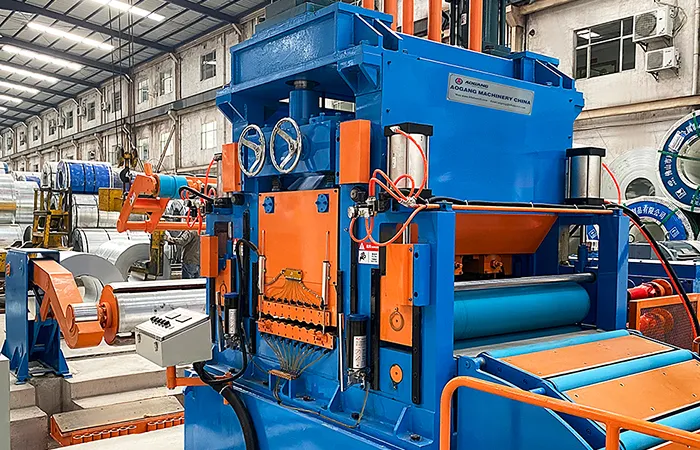

According to different production requirements, the production line can be equipped with hydraulic shears or mechanical shears. High-rigidity leveling systems with 4HI or 5HI roller configurations provide excellent leveling performance while accommodating various material thicknesses and high-strength steel materials.
For different processing requirements, the line can also be configured with double or interchangeable leveling units to improve production flexibility. Automatic stacking systems support steel plates up to 18 meters long, ensuring safe material handling, efficient production, and organized stacking.
Designed with a modular structure and an advanced automation control system, the equipment can be customized according to material thickness, plate width, cut length, production capacity, automation level, and factory layout to meet various heavy-duty steel processing requirements.
A: The line is suitable for processing carbon steel, hot-rolled steel, high-strength steel, stainless steel, and alloy steel. Customized configurations are available for different material specifications.
A: The processing thickness depends on the selected model and production requirements. Aogang provides customized configurations for various heavy plate and heavy-gauge steel coil applications.
A: The production line can be equipped with hydraulic shears or mechanical shears, together with 4HI or 5HI high-rigidity leveling systems, depending on material specifications and production requirements.
A: Yes. The production line can be customized according to plate width, material thickness, cut length, production capacity, automation level, and factory layout to meet different manufacturing requirements.
A: Aogang provides complete technical support, including project consultation, equipment design, installation, commissioning, operator training, spare parts supply, remote technical assistance, and long-term maintenance services throughout the equipment lifecycle.
Capable of processing steel plates ≤25mm thick, meeting the needs of heavy industry.
Utilizes a large-diameter roller design to ensure flatness of thick plates, eliminating ripples and bulges.
Can be equipped with dual levelers and interchangeable units to accommodate a wide range of thicknesses.
Hydraulic or mechanical shears support continuous processing with stability and reliability.
Robust construction supports stacks of steel plates up to 18 meters long, meeting the needs of large projects.
Equipped with advanced PLC and servo control systems for precise synchronization of leveling, feeding, and shearing, enabling stable, fully automated operation and reducing manual intervention.
| Model | Material Width (mm) | Thickness Range (mm) | Speed (m/min) |
| CTL600 | 120 ~ 600 | 0.3 ~ 2.0 | 10 ~ 120 |
| CTL800 | 120 ~ 800 | 0.7 ~ 3.5 | 10 ~ 80 |
| CTL1300 | 400 ~ 1300 | 0.8 ~ 4.5 | 10 ~ 60 |
| CTL1600 | 600 ~ 1600 | 2.0 ~ 6.0 | 10 ~ 60 |
| CTL1800 | 900 ~ 1800 | 3.0 ~ 8.0 | 10 ~ 60 |
| CTL2000 | 1000 ~ 2000 | 6.0 ~ 16.0 | 10 ~ 30 |
| CTL2200 | 1000 ~ 2200 | 8.0 ~ 20.0 | 10 ~ 20 |
| CTL2500 | 1000 ~ 2500 | 8.0 ~ 20.0 | 10 ~ 20 |
Through these video cases, you can directly experience Aogang’s strength and craftsmanship in high-end manufacturing—from precise installation and commissioning to the stable and efficient performance of our equipment. We provide fully customizable production lines to help customers achieve intelligent, one-stop solutions.
