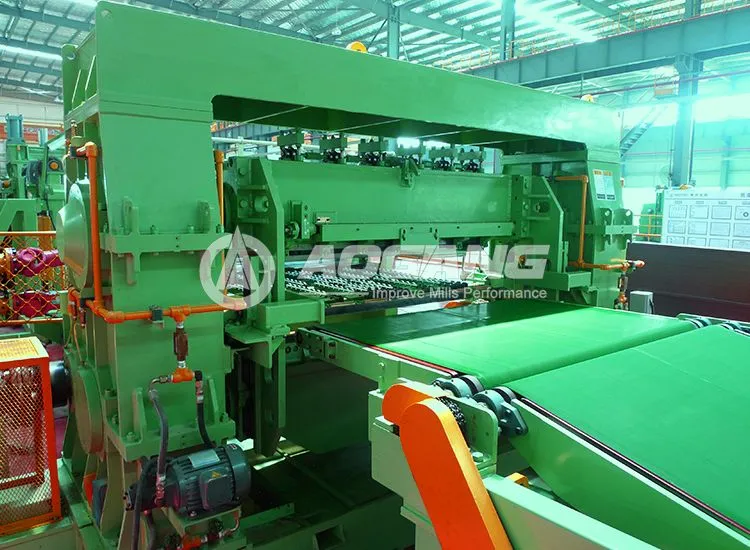

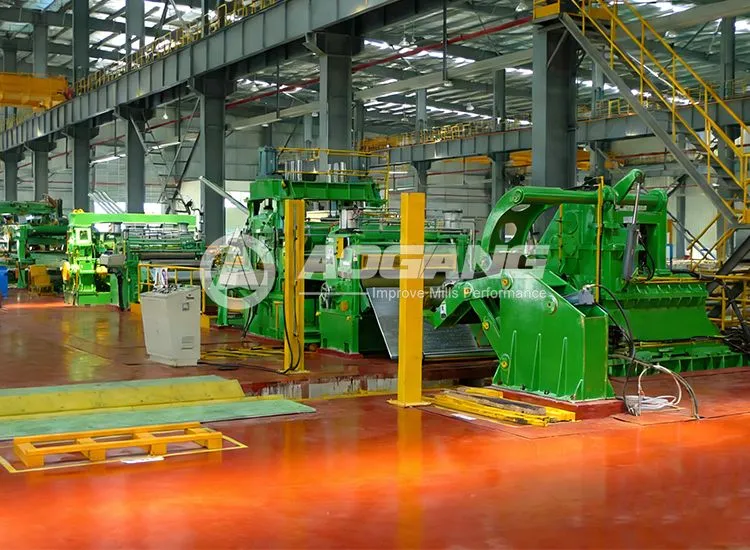

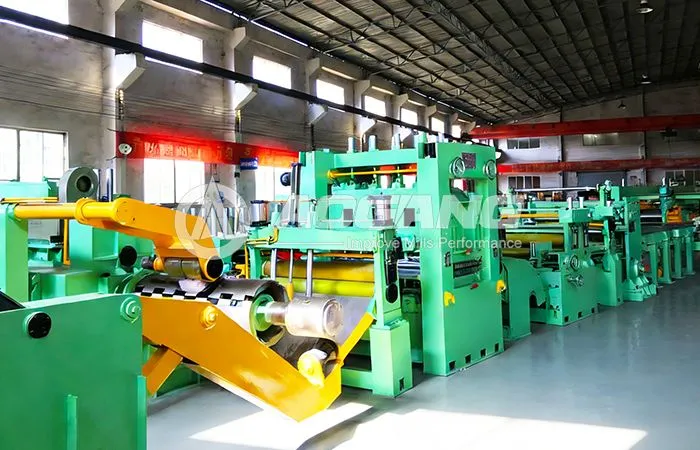

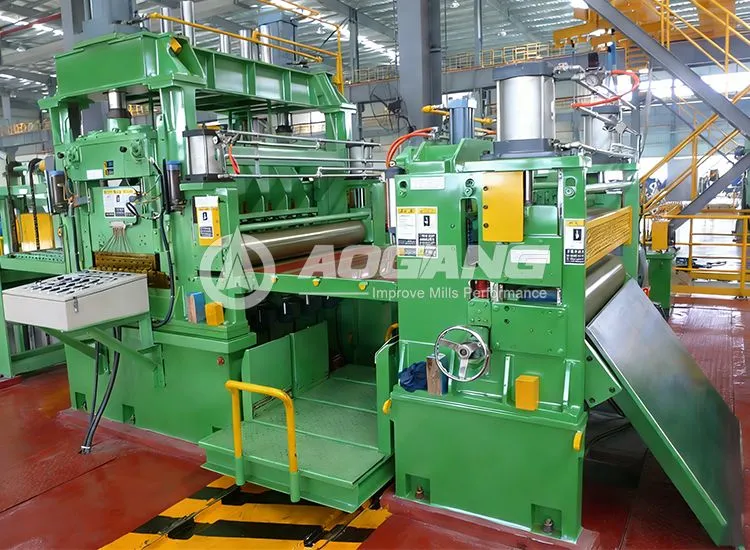

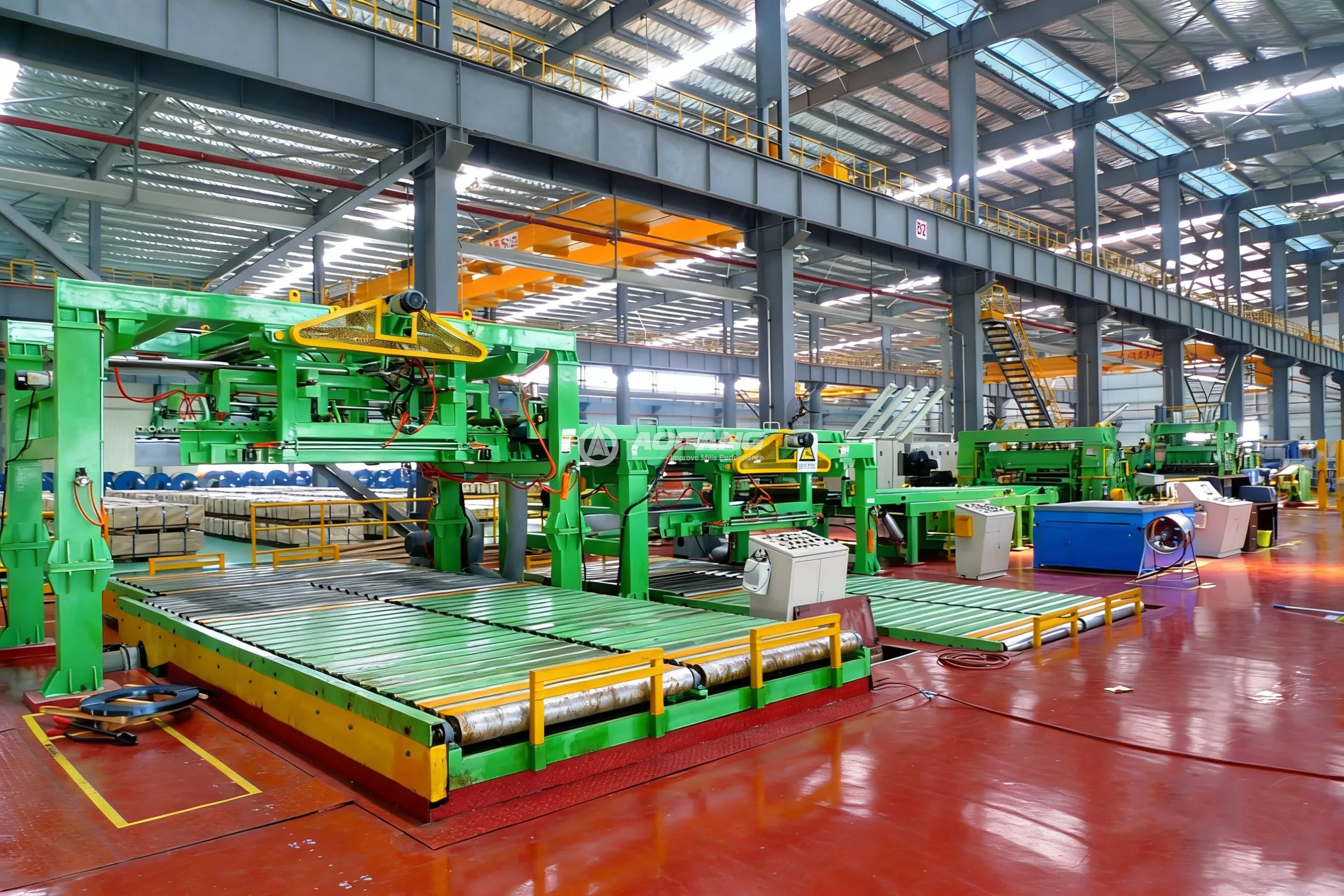

Light Gauge Cut to Length Line

The Aogang Light Gauge Cut to Length Line is specially designed for precision processing of thin metal coils. It is suitable for carbon steel, cold-rolled steel, stainless steel, galvanized steel, aluminum, and pre-painted steel coils. Featuring advanced leveling and precision shearing technology, the line delivers excellent sheet flatness, accurate cut lengths, and stable production performance for industries with high surface quality requirements.

Inquire Now +

Product Description

The Aogang Light Gauge Cut to Length Line integrates uncoiling, leveling, servo feeding, precision cutting, automatic stacking, and discharge into a fully automated production line. It is widely used in automotive, home appliances, stainless steel processing, electrical equipment, construction, and other industries requiring high-precision sheet production.

According to different production requirements, the line can be equipped with flying shear, rotary shear, or a storage pit feeding system to improve production efficiency and support continuous high-speed operation.

For surface-sensitive materials such as stainless steel, aluminum, and automotive body panels, optional interchangeable leveling units and roller cleaning devices help maintain excellent sheet flatness while protecting the material surface throughout the production process.

With a maximum production speed of 120 m/min, combined with automatic stacking and intelligent material handling systems, the production line delivers efficient, stable, and highly automated coil processing.

Frequently Asked Questions (FAQ)

Q1: What materials can the light gauge cut to length line process?

A: The line is suitable for processing carbon steel, cold-rolled steel, stainless steel, galvanized steel, aluminum, and pre-painted steel coils. Customized configurations are available for different material specifications.

Q2: What thickness range is suitable for a light gauge cut to length line?

A: The processing thickness depends on the selected model and production requirements. Aogang provides customized light gauge cut to length line solutions for various thin metal coil applications.

Q3: What cutting systems are available?

A: The production line can be equipped with either a flying shear, rotary shear, or a storage pit feeding system, depending on material specifications, production speed, and processing requirements.

Q4: Can the production line be customized?

A: Yes. The production line can be customized according to coil width, material thickness, cut length, production speed, automation level, and factory layout to meet different manufacturing requirements.

Q5: What after-sales support does Aogang provide?

A: Aogang provides complete technical support, including project consultation, equipment design, installation, commissioning, operator training, spare parts supply, remote technical assistance, and long-term maintenance services throughout the equipment lifecycle.

Product Advantages

High Speed and Efficiency

Continuous production speeds reach up to 120 m/min, suitable for large-scale processing.

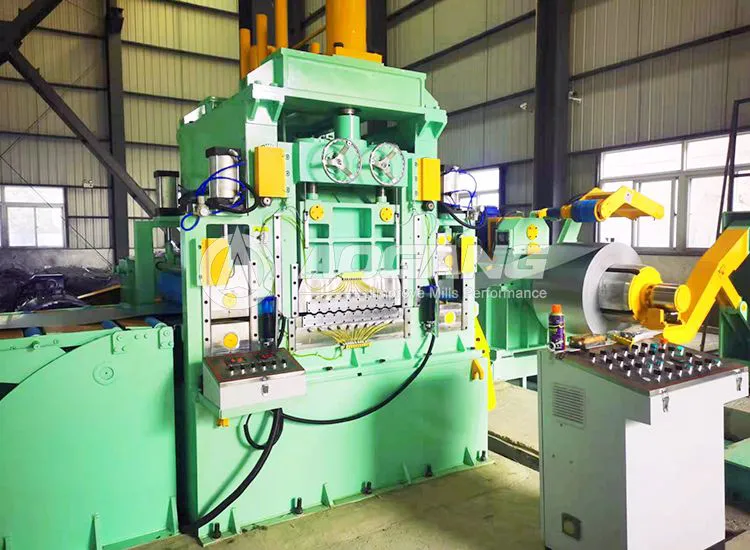

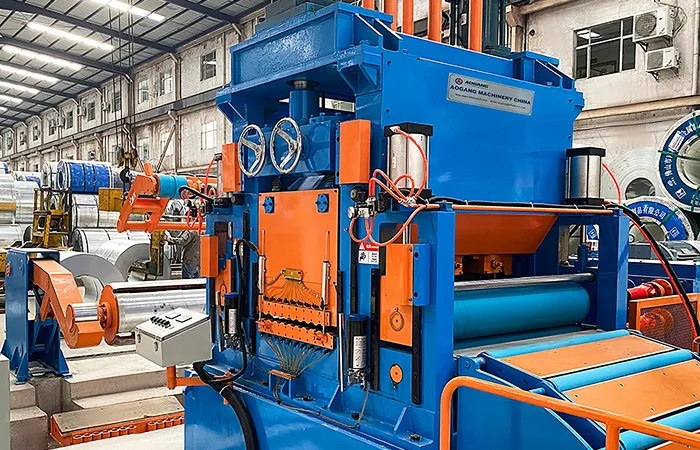

High-Precision Leveling

Optional four-roller or six-roller leveling ensures excellent flatness.

Flexible Configuration

Optional flying shear, rotary shear, or roller feed systems are available to meet diverse production needs.

Surface Protection

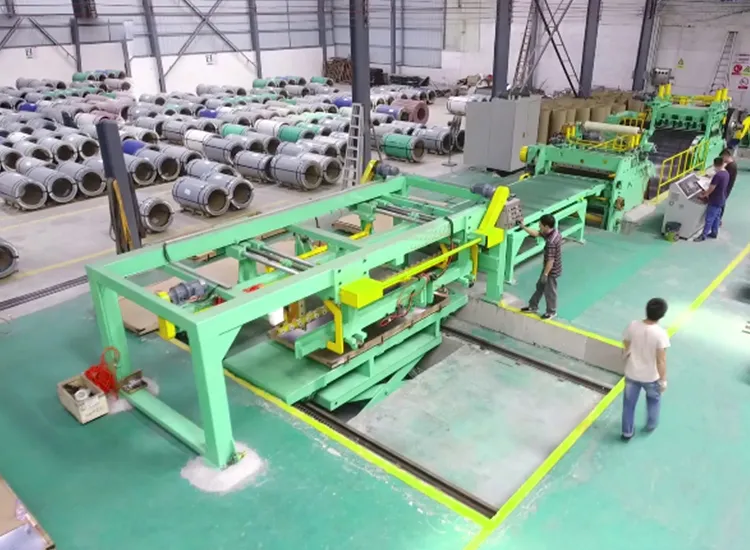

Utilizes vacuum, magnetic, mechanical stacking, and air cushion conveying, suitable for highly sensitive surfaces (such as automotive steel, stainless steel, and aluminum).

High Level of Automation

The fully automated packaging system supports horizontal and vertical strapping, automatic pallet loading, protective paper lamination, and automatic weighing and labeling.

Stability and Reliability

The modular design allows for long-term continuous operation, reducing manual intervention and maintenance costs.

Light Gauge Cut to Length Line Technical Parameters

Customized as per customer requirements

Model	Material Width (mm)	Thickness Range (mm)	Speed (m/min)
CTL600	120-600	0.3-2.0	10-120
CTL800	120-800	0.7-3.5	10-80
CTL1300	400-1300	0.8-4.5	10-60
CTL1600	600-1600	2.0-6.0	10-60
CTL1800	900-1800	3.0-8.0	10-60
CTL2000	1000-2000	6.0-16.0	10-30
CTL2200	1000-2200	8.0-20.0	10-20
CTL2500	1000-2500	8.0-20.0	10-20
