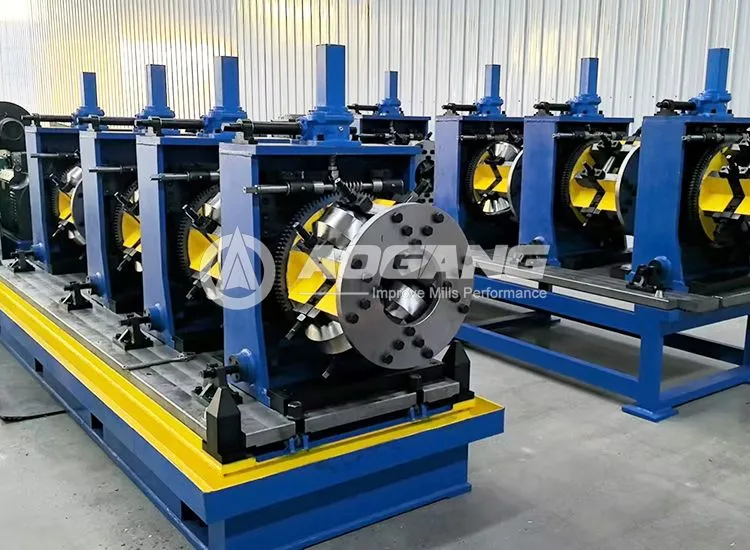

Steel Tube Mill High Frequency ERW Pipe Production Line

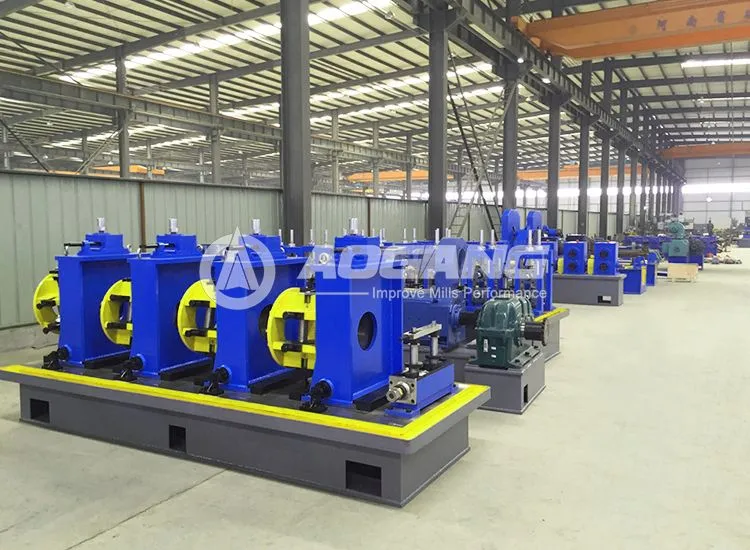

Steel Tube Mill for ERW Pipes with High Frequency Welding

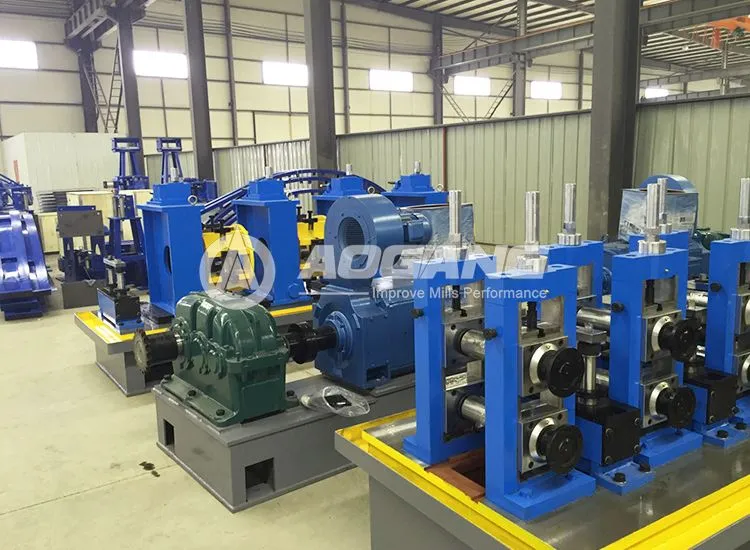

High Efficiency Steel Tube Mill for ERW Pipe Production

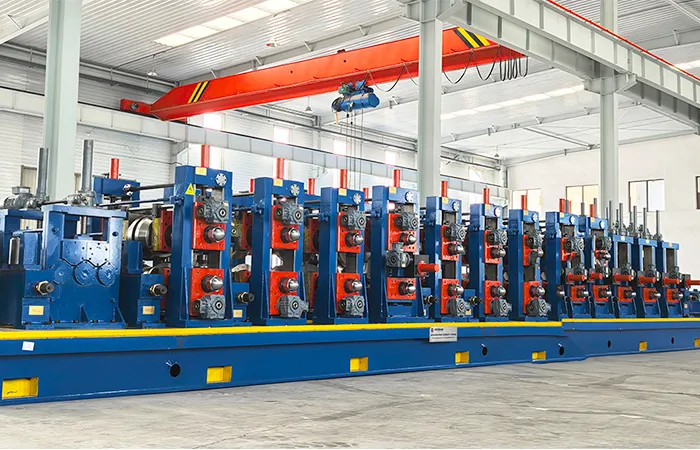

Steel Tube Mill

The Steel Tube Mill is a complete production line designed for manufacturing high-frequency ERW welded steel pipes. It integrates uncoiling, forming, welding, sizing, and cutting processes to achieve continuous and efficient pipe production. The equipment is widely used in structural construction, engineering pipelines, furniture manufacturing, and general industrial steel pipe applications.
The mill adopts high-frequency welding technology, ensuring stable weld quality and high forming accuracy, and is capable of meeting the production requirements of various pipe specifications.

Inquire Now + Next Product +

Product Description

The Steel Tube Mill gradually forms steel strips into tubular shapes through multiple forming rollers and welds the strip edges using high-frequency current to ensure strong and consistent weld seams. After welding, the pipes pass through sizing and straightening sections to achieve precise diameter dimensions and good straightness, followed by online cutting to preset lengths.

Main Components Include:

Uncoiling and leveling unit of tube mill
High-precision pipe forming unit
High-frequency welding system
Sizing and straightening unit for steel pipes
Automated online tube cutting system
Electrical control and steel tube mill automation

The entire production line can be customized according to pipe diameter range, wall thickness, material type, and production speed to meet different customer requirements.

As an advanced tube mill manufacturer, Aogang has years of experience in the research, development, and manufacturing of high-frequency ERW pipe production lines. The company places great emphasis on equipment stability and welding precision, using high-quality materials and key components, and is supported by a professional engineering team for installation, commissioning, and after-sales service. Whether for customized solutions or standard production lines, Aogang provides reliable, efficient, and sustainable steel pipe production solutions for its customers.

As one of Aogang's Tube Mill Line solutions, the Steel Tube Mill is designed for high-quality ERW pipe production across various industrial applications.

Frequently Asked Questions About Steel Tube Mill

1. What types of steel pipes can the Aogang Steel Tube Mill produce?

Aogang steel tube mills are versatile production lines engineered to manufacture high-quality round longitudinal welded pipes. They are widely used in structural construction, water and gas transportation, automotive components, furniture manufacturing, and other industrial applications.

2. How does the Steel Tube Mill ensure high-speed operation with stable welding?

Aogang Steel Tube Mills utilize heavy-duty forming stands, high-precision solid-state high-frequency (HF) welding systems, and optimized roller pass designs. These technologies ensure stable seam tracking, uniform heat distribution, and consistent welding quality during continuous production.

3. What is the average maintenance cycle for the Aogang Steel Tube Mill?

With a robust mechanical structure and automatic lubrication systems for key driving components, Aogang Steel Tube Mills are designed for reliable long-term operation. Under standard working conditions, regular inspections are recommended every three months to maintain equipment performance and reduce downtime.

4. Does Aogang provide customized roller designs for different pipe specifications?

Yes. Aogang has an experienced engineering team with extensive tube mill design expertise. Customized roller profiles can be developed according to raw material characteristics, pipe specifications, and production requirements to achieve precise dimensions, stable forming performance, and high-quality finished pipes.

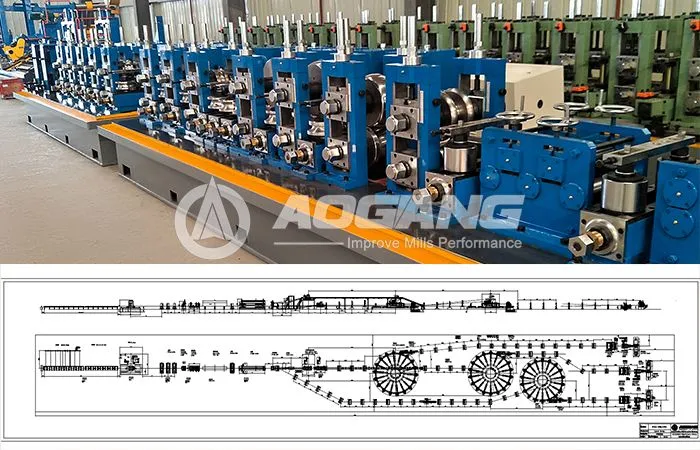

ERW Steel Tube Mill High Frequency Pipe Production System

Product Advantages

Stable and Reliable Welding

Mature high-frequency welding technology ensures uniform weld seams with high strength and consistent quality.

High Production Efficiency

Continuous production design increases overall output and reduces unit production costs.

Wide Application Range

Capable of producing round, square, and rectangular tubes for various applications.

High Forming Accuracy

Optimized roller design ensures precise pipe dimensions and good surface quality.

Customizable Solutions

The steel tube mill can be tailored in terms of pipe specifications, production speed, and automation level based on customer needs.

Stable Operation and Easy Maintenance

Rational structure and durable key components ensure stable operation and convenient maintenance.

Steel Tube Mill Technical Parameters

Customized as per customer requirements

Model	Diameter (mm)	Round Pipe Thickness (mm)	Speed (m/min)
ERW25	φ8-φ25	0.3-1.2	70-130
ERW32	φ10-φ38	0.5-2.5	70-120
ERW50	φ16-φ50	0.7-3.0	60-120
ERW60	φ19-φ63	0.8-3.5	60-100
ERW76	φ22-φ76	0.9-4.0	40-80
ERW101.6	φ42-φ101.6	1.0-4.5	40-70
ERW127	φ48-φ127	1.5-5.0	40-70
ERW140	φ60-φ140	1.5-5.0	35-60
ERW165	φ60-φ165	2.0-6.0	30-50
ERW219	φ89-φ219	2.0-8.0	30-50
ERW273	φ114-φ273	4.0-10.0	20-40
ERW325	φ114-φ325	4.0-14.0	20-40
ERW406	φ219-φ406	5.0-16.0	20-40
ERW508	φ325-φ508	6.0-18.0	10-25
ERW660	φ406-φ660	8.0-20.0	10-25

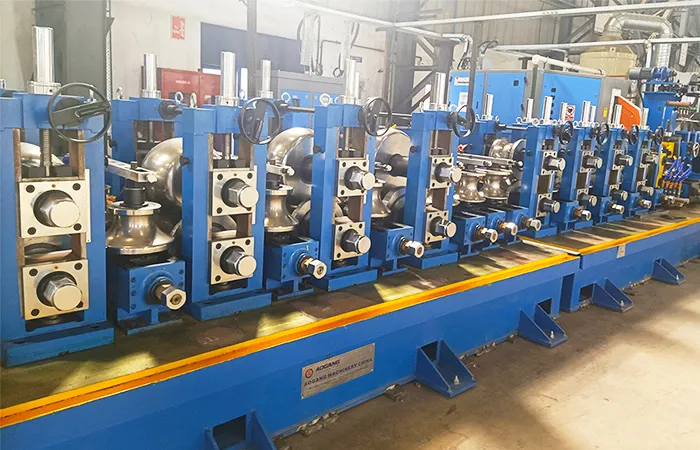

Steel Tube Mill Video Showcase

These video cases showcase real installation and commissioning processes, allowing you to directly see Aogang’s extensive industry experience, professional service, and the stable performance of our equipment. Our production lines can be customized to meet customer requirements, offering one-stop solutions.

Carbon Steel Tube Mill Machine

The Carbon Steel Tube Mill is a highly efficient and fully automated production line designed for manufacturing high-quality carbon steel welded pipes. This advanced Carbon Steel Tube Mill ensures high production efficiency, precise tube dimensions, stable welding quality, and reliable long-term operation.The production line can manufacture carbon steel pipes in various diameters and wall thicknesses. Pipes produced by the Carbon Steel Tube Mill are widely used in construction structures, automobile manufacturing, oil and gas transportation, machinery fabrication, power engineering, furniture manufacturing, and decoration industries.

Galvanized Pipe Making Machine

The Galvanized Pipe Making Machine is a professional production line designed for the efficient manufacturing of ERW galvanized steel pipes. The line processes steel strip or galvanized coils through precision forming, high-frequency welding, sizing, and cutting, continuously producing high-quality welded pipes.The finished pipes are widely used in construction, infrastructure, agriculture, and general industrial applications.

Pipe Mill

Aogang Pipe Mill is designed for efficient manufacturing of welded steel pipes, providing complete production solutions for round, square, rectangular, oval, and special-shaped pipes. The production line is suitable for processing mild steel (MS), galvanized steel (GI), carbon steel, and high-strength steel, meeting diverse requirements in construction, automotive, oil & gas, furniture, and general machinery industries.

Steel Pipe Making Machine

Aogang Steel Pipe Making Machines: Precision Engineering for Every Shape Built for efficiency, our solutions produce high-precision round, square, rectangular, oval, and custom-profile pipes from MS, GI, carbon steel, and high-strength alloys. Backed by over 20 years of experience and CE/SGS certifications, Aogang provides end-to-end support for the construction, automotive, and energy industries. We tailor every machine to your specific production goals, ensuring maximum output with minimal downtime.

Square Tube Mill Machine

Aogang Square Tube Mill is a high-efficiency, energy-saving, and intelligent pipe manufacturing solution designed for direct forming of square and rectangular tubes from steel strip. By eliminating the traditional “round forming → reshaping” process, it significantly improves production efficiency, reduces material waste, and lowers overall production costs.The production line features a high level of automation, enabling fully automatic operation from uncoiling, forming, welding, sizing, cutting, to final packaging. With advanced control systems and stable performance, it ensures consistent product quality and reliable operation.

API Tube Mill

Aogang API Tube Mill is a high-end production equipment specifically designed for manufacturing longitudinal welded pipes used in oil and gas transportation. It supports the production of high-strength steel pipes with an outer diameter ranging from 165mm to 660mm and a wall thickness of 3.0mm to 25.0mm. With its high automation and stable operation, this equipment is widely applied in oil and gas pipelines as well as structural support fields.
