Tube Mill Size Range Guide for Steel Pipe Production

May. 14, 2026

In the steel pipe manufacturing industry, selecting the appropriate tube mill size range is one of the most important factors determining production efficiency, product capability, and investment return. Different industries require different pipe diameters, wall thicknesses, and production capacities. Therefore, properly matching the tube mill model is essential for the long-term stable operation of a steel pipe production line.

Modern ERW high-frequency welded tube mill lines are widely used in the production of construction pipes, furniture tubes, scaffolding pipes, water pipes, structural pipes, and oil & gas transportation pipes. Understanding the full tube mill size range helps manufacturers better plan production capacity and equipment investment.

1. Why Tube Mill Size Range Matters

The size range of a tube mill directly determines the pipe diameter and wall thickness that the production line can process. If the selected equipment range is too small, it will limit future product expansion. If it is too large, it may lead to unnecessary investment, higher energy consumption, and increased production costs.

Proper tube mill selection can bring the following advantages:

· Stable forming quality and welding performance

· Higher production efficiency and capacity utilization

· Lower material waste and scrap rate

· More flexible specification changeover

· Reduced downtime and maintenance cost

· Better long-term return on investment (ROI)

2. Common Tube Mill (ERW Tube Mill) Size Range

Below is the commonly used tube mill size range in the steel pipe industry, covering from small to large diameter production lines:

Tube Mill Model	Pipe OD Range	Wall Thickness Range
ERW32 Tube Mill	10–32 mm	0.5–2.0 mm
ERW50 Tube Mill	16–50 mm	0.7–3.0 mm
ERW76 Tube Mill	25–76 mm	1.0–4.0 mm
ERW89 Tube Mill	32–89 mm	1.2–4.5 mm
ERW127 Tube Mill	50–127 mm	1.5–6.0 mm
ERW165 Tube Mill	76–165 mm	2.0–8.0 mm
ERW219 Tube Mill	89–219 mm	3.0–10.0 mm
ERW273 Tube Mill	114–273 mm	4.0–12.0 mm
ERW325 Tube Mill	140–325 mm	4.0–14.0 mm
ERW406 Tube Mill	165–406 mm	5.0–16.0 mm
ERW508 Tube Mill	219–508 mm	6.0–18.0 mm
ERW660 Tube Mill	273–660 mm	6.0–20.0 mm

Different tube mill configurations can also be designed to produce square tubes, rectangular tubes, and other special profiles according to customer requirements.

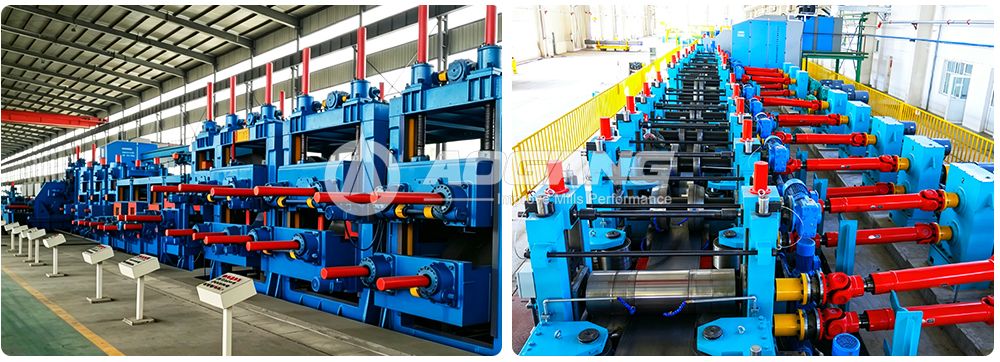

Tube Mill Size Range Guide for Steel Pipe Production

3. How to Choose the Right Tube Mill Size

When selecting a tube mill production line, it is not enough to only consider pipe diameter. Several key factors must be evaluated:

Pipe Diameter and Wall Thickness Range

This is the most basic selection criterion. Different applications require different pipe specifications:

· Furniture tubes: small diameter, thin wall

· Construction pipes: medium diameter, stable forming

· Oil & gas pipes: large diameter, high-strength thick wall

Production Speed and Capacity Requirements

High-speed tube mills are suitable for large-scale continuous production, significantly improving output and reducing unit cost. For factories with high order volumes, production speed is a key factor.

Application Industry Type

Different applications determine equipment configuration:

· Construction pipes (scaffolding, structural pipes)

· Furniture and decorative tubes

· Greenhouse pipes

· Water supply and municipal pipelines

· Oil & gas pipelines (API standard pipes)

Future Expansion Requirements

It is recommended to reserve certain capacity margins during selection to adapt to future market changes and avoid repeated investment.

Automation Level and Smart Configuration

Modern tube mills are usually equipped with:

· Automatic roll adjustment system

· Online sizing control

· Automatic cutting system

· Automatic packing system

· PLC intelligent control system

Higher automation improves production stability and consistency.

4. Applications of Large Diameter Tube Mills

Large diameter ERW tube mills (such as ERW273–ERW660) are mainly used for high-strength, large-size pipe production, including:

· Oil & gas transportation pipelines

· Large-scale water transmission projects

· Structural steel pipes for construction

· Infrastructure engineering projects

· API standard pipe production

These applications require higher welding stability, forming precision, and equipment rigidity.

5. The Role of High-Frequency Welding in Tube Mills

In ERW pipe production, high-frequency welding is one of the core processes that directly determines pipe quality.

Modern high-frequency tube mills feature:

· Stable weld seam quality

· Higher forming accuracy

· Faster production speed

· Lower defect rate

· Continuous production capability

Combined with precision forming and sizing systems, high-quality steel pipe production can be achieved consistently.

6. Conclusion

Selecting the correct tube mill size range is one of the most critical steps in planning a steel pipe production line. Manufacturers should consider pipe diameter range, wall thickness requirements, production efficiency, application fields, and future expansion potential to achieve optimal investment returns.

With the continuous advancement of ERW high-frequency welding technology and automation systems, modern steel pipe production lines are moving toward higher efficiency, greater precision, and lower production costs.

7. Frequently Asked Questions (FAQ)

Q1: How do I determine the correct Tube Mill size?

It mainly depends on the target pipe outer diameter and wall thickness. For small diameter pipes (such as furniture or decorative tubes), ERW32–ERW76 models are suitable. For medium to large structural pipes, ERW89–ERW325 is recommended. For oil & gas or large infrastructure projects, ERW406–ERW660 heavy-duty tube mills are typically required.

Q2: Can one tube mill produce multiple pipe sizes?

Yes, but within a limited range. One tube mill can usually cover a certain diameter range. For example, ERW76 can produce pipes from 25–76 mm. However, beyond its design range, a different machine or roller system adjustment is required.

Q3: Is a larger tube mill always better?

No. Larger equipment means higher investment cost, energy consumption, and maintenance expenses. If production mainly focuses on small diameter pipes, a large machine would lead to unnecessary cost waste. Proper matching is the best solution.

Q4: What industries use large diameter tube mills (ERW325–ERW660)?

· Oil & gas pipelines

· Municipal water supply and drainage projects

· Large structural steel pipe applications

· Infrastructure construction projects

· API standard pipe production

These industries require high strength and large pipe specifications.

Q5: Is specification changeover complicated in tube mills?

Modern automated tube mills have greatly simplified changeover processes. With automatic adjustment systems and quick roll change designs, downtime can be significantly reduced. However, the actual changeover time depends on machine configuration and product differences.
