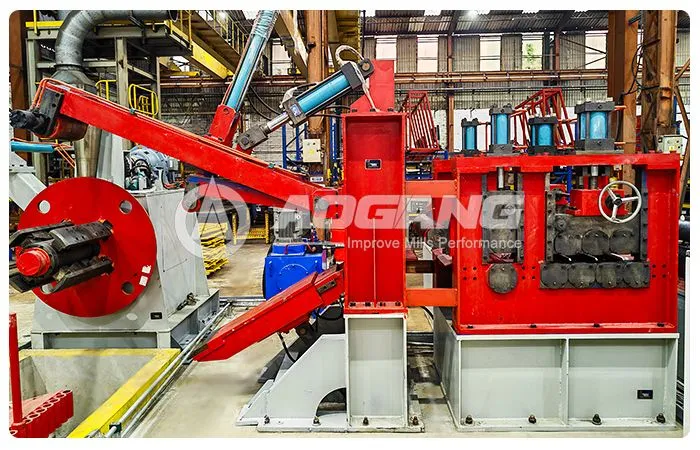

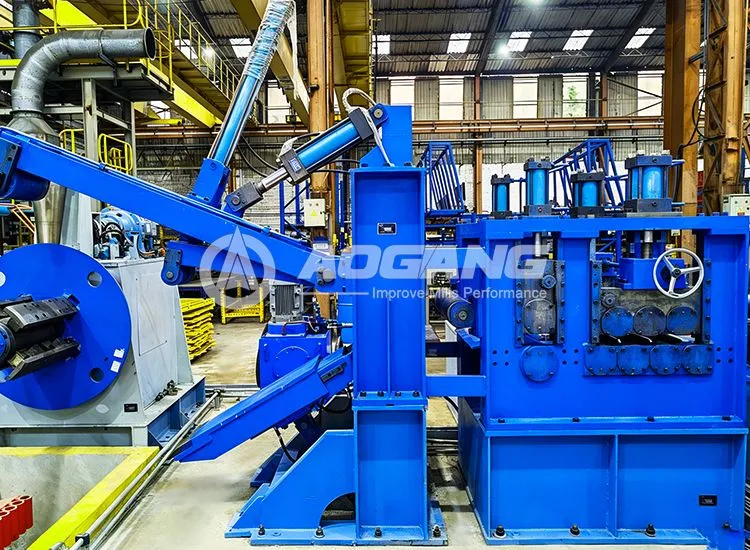

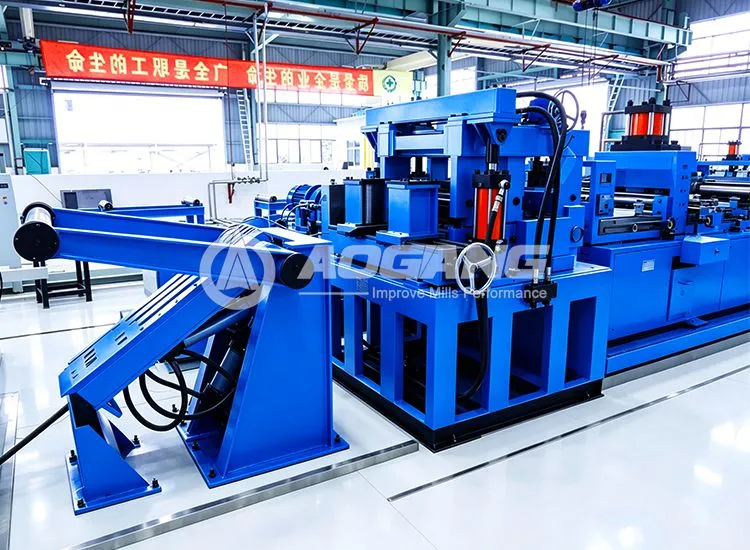

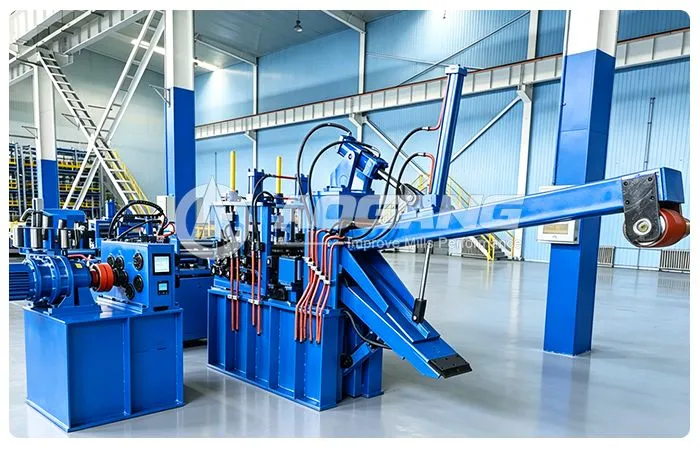

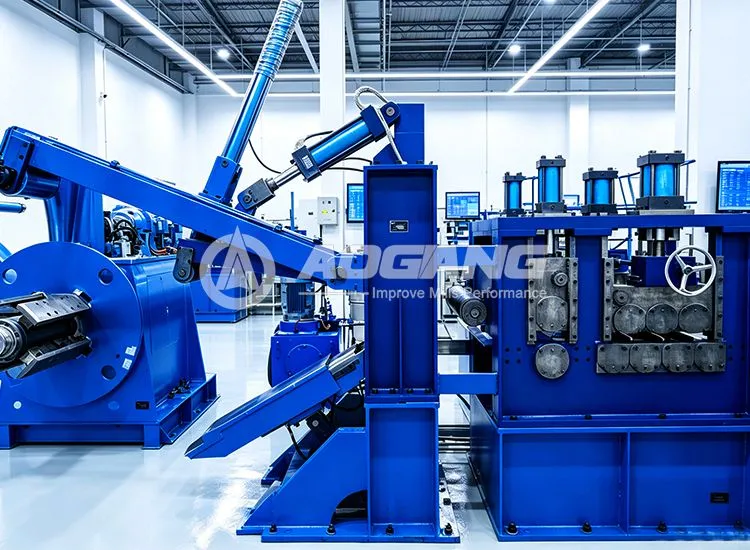

The Coil Peeler and Flattener is an important auxiliary machine in the ERW tube mill production line. It is mainly used to flatten the head and tail of the steel strip and smoothly feed the strip into the shear and welder. The equipment provides stable support for the strip welding process, ensuring smoother strip joining and improving the continuous production efficiency of the entire line.
The machine is suitable for processing steel strips of various widths and thicknesses and is widely used in tube mill production lines, cold roll forming lines, and various steel coil processing systems.
The Coil Peeler and Flattener is mainly installed in front of the shear and welder section of the ERW tube mill production line. It is designed to flatten and straighten the head and tail of the steel strip after uncoiling. Due to long-term coiling, the strip ends are often bent or warped, which can affect the accuracy of subsequent cutting and welding processes.
This machine uses multiple flattening rollers to level the steel strip and drive it forward smoothly, allowing the strip to enter the shear and welder section steadily, thereby improving welding stability and overall production line automation efficiency.
· Flatten the head and tail of the steel strip
· Improve strip flatness
· Feed the strip smoothly into the shear and welder
· Provide support for the strip welding process
· Reduce strip deviation and unstable feeding issues
· Improve production continuity and welding quality
· Strong machine frame structure with stable operation
· Multi-roller flattening design for better leveling performance
· Suitable for various steel strip specifications
· Stable feeding and precise strip conveying
· Easy operation and convenient maintenance
· Compatible with different ERW tube mill models
The Coil Peeler and Flattener is widely used in:
· ERW high-frequency tube mill production lines
· Steel pipe manufacturing industry
· Cold roll forming production lines
· Steel coil processing equipment
· Automatic shear and welder systems
· Hydraulic pressing system
· Servo feeding system
· Automatic centering device
· Customized flattening roller materials
· PLC automatic control system
The multi-roller flattening structure effectively improves strip head and tail bending and warping problems, enhancing strip flatness.
The machine smoothly drives the steel strip forward, reducing deviation and material jamming while ensuring continuous production.
It provides stable support for the shear and welder, enabling more accurate strip joining and better weld seam quality.
Suitable for various strip widths and thicknesses and compatible with different ERW tube mill models.
The heavy-duty frame and wear-resistant rollers ensure more stable operation and longer service life.
The machine can be equipped with a PLC control system to realize automated operation and reduce labor intensity.
| Type | Width(mm) | Thickness(mm) | Speed(m/min) | Structure |
| φ50 | 40~200 | 0.8~3.0 | 12 | 5 rollers |
| φ76 | 100~260 | 0.8~3.5 | 12 | 5 rollers |
| φ127 | 120~400 | 1.0~4.0 | 8 | 5 rollers |
| φ140 | 160~440 | 1.0~4.5 | 6 | 7 rollers |
| φ165 | 280~520 | 2.0~6.0 | 6 | 7 rollers |
| φ219 | 360~700 | 2.0~8.0 | 6 | 7 rollers |
| φ273 | 520~860 | 4.0~10.0 | 6 | 7 rollers |
| φ325 | 500~1020 | 4.0~12.0 | 6 | 7 rollers |
| φ426 | 600~1300 | 6.0~16.0 | 6 | 7 rollers |
| φ508 | 700~1650 | 6.0~18.0 | 6 | 7 rollers |
| Φ630 | 900-2000 | 6.0-22.0 | 6 | 7 rollers |
