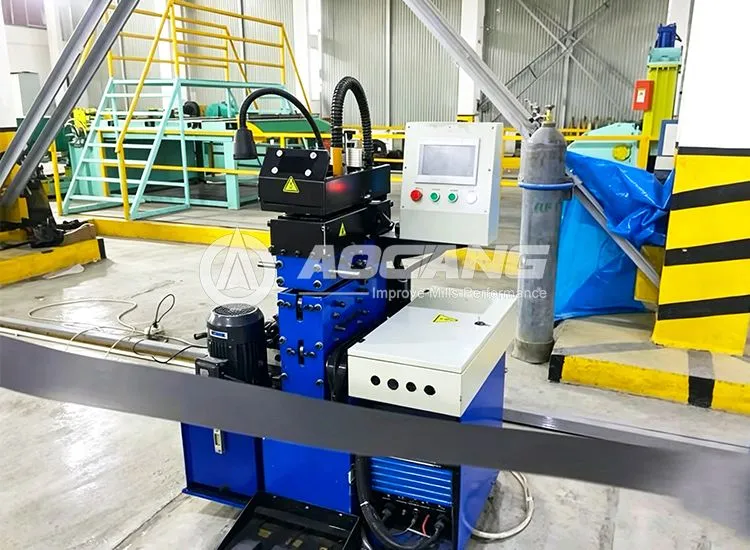

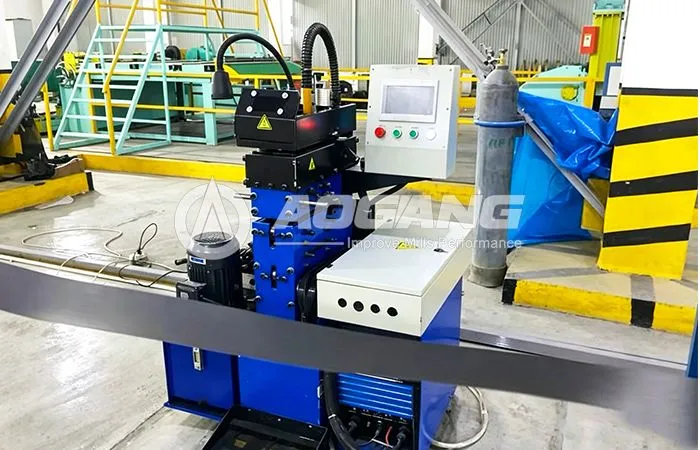

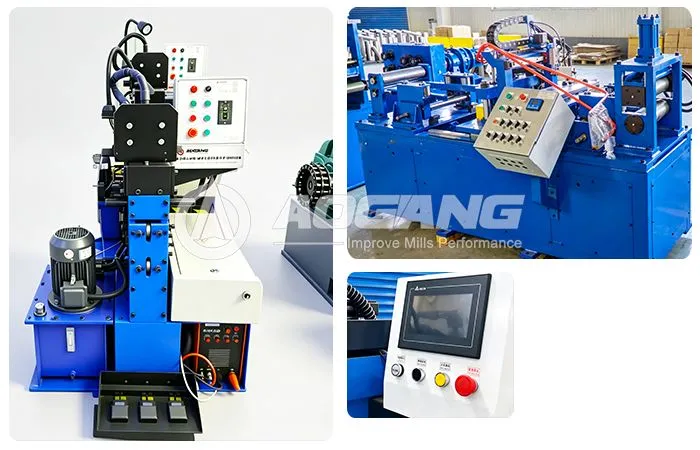

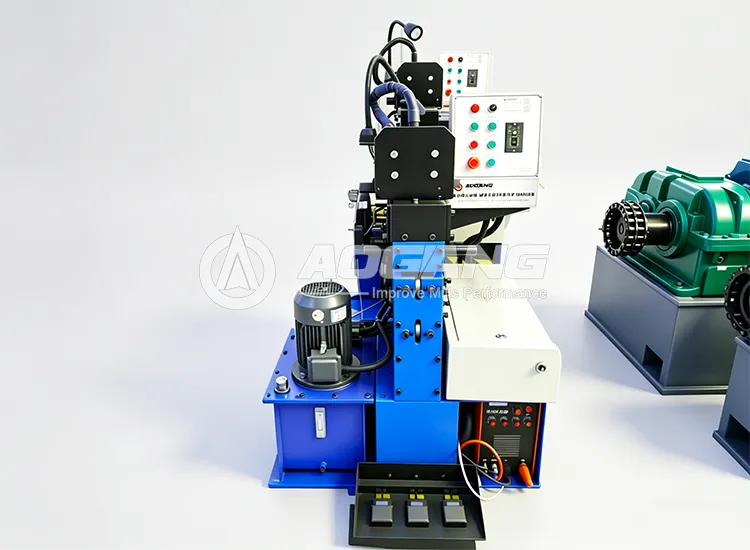

Shear End Welder

The Shear End Welder is an essential auxiliary machine in the tube mill production line, mainly used for automatic coil end cutting and strip joining before forming and welding. It ensures continuous production by connecting the tail of one steel coil to the head of the next coil, reducing downtime and improving production efficiency.

The machine integrates shearing and welding functions into one system. The shear blade and welding head are mounted on the welding trolley, enabling automatic cutting, alignment, clamping, and welding.

Inquire Now +

Product Description

Automatic Shearing and Welding Process

The shear end welder automatically cuts the strip head and tail, then performs precise alignment and welding. This continuous operation minimizes manual work and improves production stability.

Integrated Welding Trolley Design

The shear blade and welding head are installed on the same movable trolley, allowing efficient strip handling and compact machine structure.

Smart Seam Alignment System

The equipment features intelligent seam positioning and alignment technology, ensuring accurate strip connection and high welding quality.

Stable and Reliable Operation

With precise hydraulic and electrical control systems, the machine provides stable action, smooth operation, and consistent welding performance during continuous tube production.

Suitable for Various Tube Mill Sizes

The machine can match different tube mill models and strip specifications, supporting a wide range of strip widths and thicknesses.

Continuous Production Support

By quickly joining steel coils, the shear end welder helps maintain continuous tube mill operation, reduces downtime during coil replacement, and improves overall production efficiency.

Product Advantages

High Automation

Automatic cutting, alignment, clamping, and welding reduce labor intensity and improve production efficiency.

Fast Coil Joining

Quick strip connection shortens coil changing time and supports continuous tube mill production.

Accurate Welding Alignment

Smart seam alignment system ensures precise welding position and stable weld quality.

Compact Structure

Integrated trolley design combines shearing and welding functions, saving installation space and simplifying maintenance.

Stable and Reliable Performance

The machine adopts precise control technology for smooth operation and dependable welding action.

Wide Application Range

Suitable for multiple tube mill models and different steel strip specifications, from light gauge to heavy-duty production lines.

Shear End Welder Technical Parameters

Customized as per customer requirements

Type	Width(mm)	Thickness(mm)
φ50	40~200	0.8~3.0
φ76	100~260	0.8~3.5
φ127	120~400	1.0~4.0
φ140	160~440	1.0~4.5
φ165	280~520	2.0~6.0
φ219	360~700	2.0~8.0
φ273	520~860	4.0~10.0
φ325	500~1020	4.0~12.0
φ426	600~1300	6.0~16.0
φ508	700~1650	6.0~18.0
Φ630	900-2000	6.0-22.0

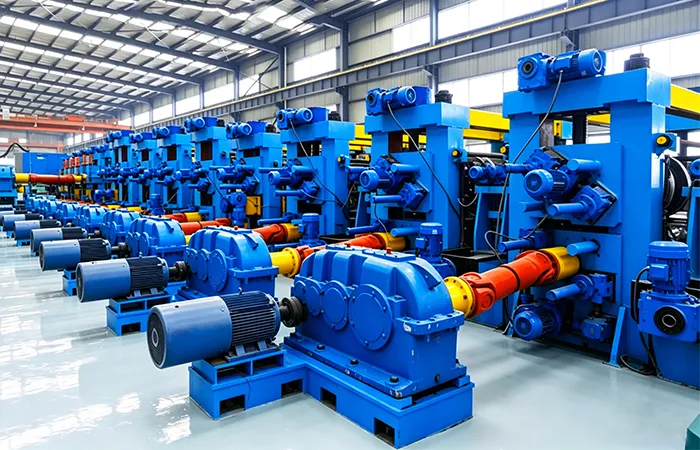

Tube Mill Line Video Showcase
