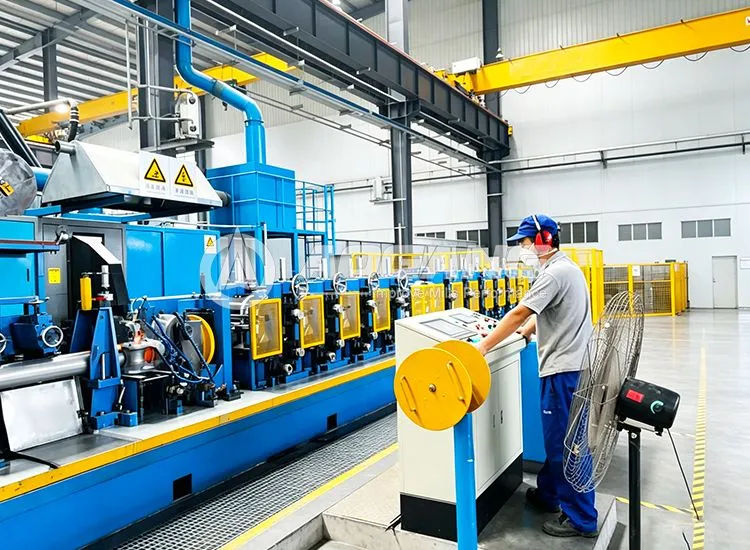

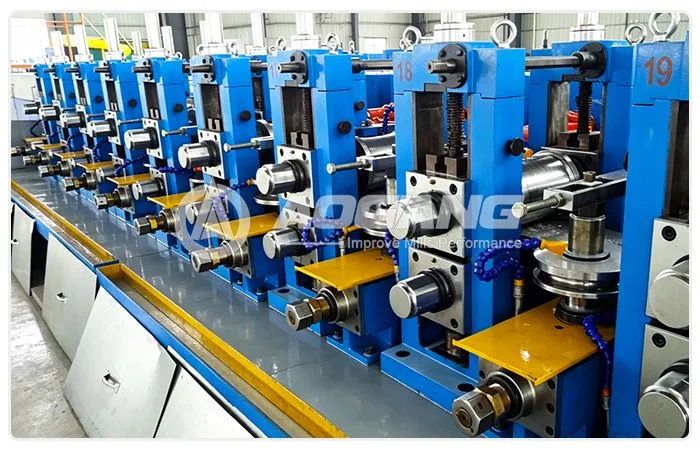

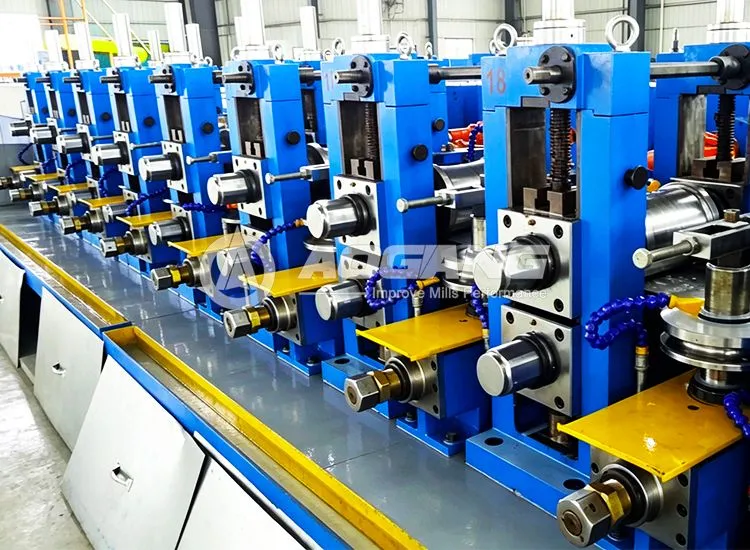

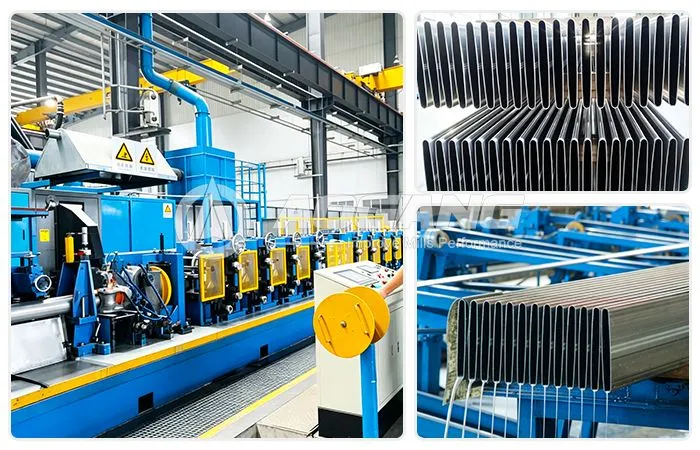

Aogang Air Cooling Condenser Flat Tube Mill

Air Cooling Condenser Flat Tube Mill

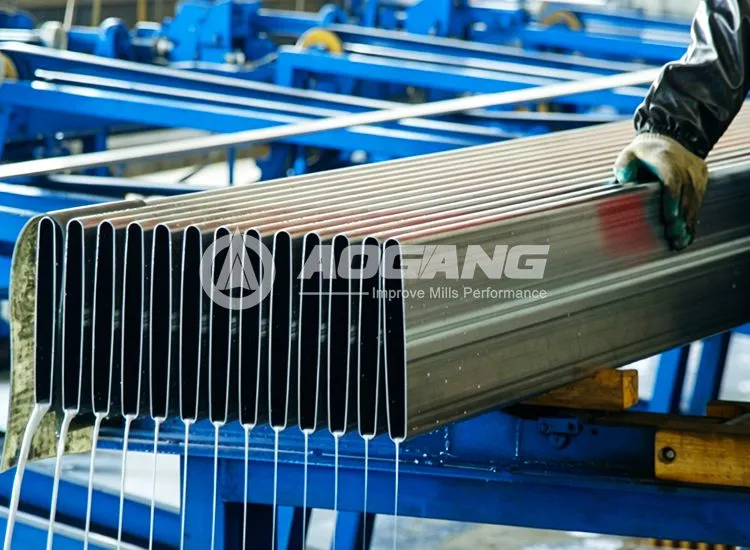

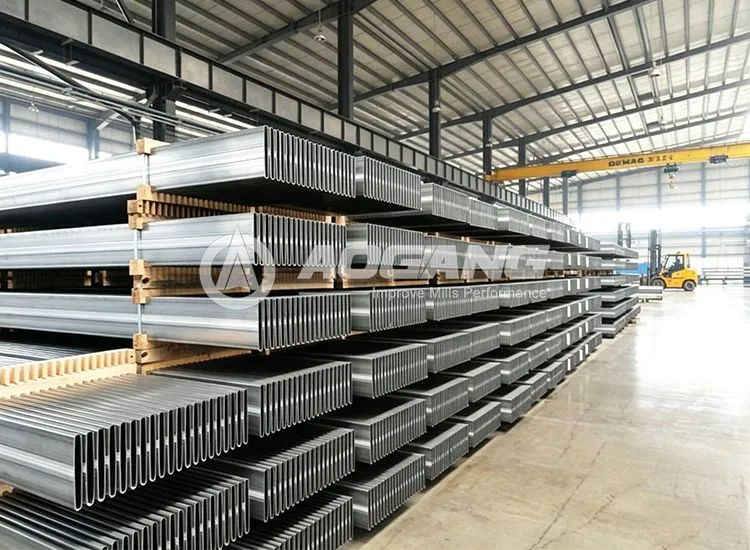

The Air Cooling Condenser Flat Tube Special Production Line is specially designed for manufacturing air cooling condenser flat tubes with a single-side aluminum layer. The standard tube size is 218.6 × 19 × 1.5 mm, while customized dimensions can be produced according to customer drawings. This production line is widely used for direct air cooling systems in power plants, steel mills, coking plants, chemical facilities, and pharmaceutical industries, offering high-speed production, stable operation, and precise dimensional control. Aogang also offers complete Tube Mill Line solutions for various welded steel pipe manufacturing applications.

Inquire Now +

Product Description

Applications

· Direct air cooling systems for thermal power plants

· Waste heat recovery and cooling systems in steel mills

· Air condenser equipment for coking plants

· Cooling and heat exchange systems in the chemical industry

· Air cooling systems for pharmaceutical facilities

Product Features

· Specially designed for producing air cooling condenser flat tubes with a single-side aluminum layer.

· Supports both standard specifications and customized tube sizes based on customer drawings.

· Production line speed up to 30 m/min.

· Length tolerance controlled within ±3 mm.

· Suitable for continuous and large-scale production.

Process Advantages

· Stable forming and welding technology ensures consistent tube dimensions and quality.

· High-efficiency cutting system accommodates fixed lengths from 2 m to 12 m.

· Designed to meet the stringent requirements of air cooling condenser manufacturing.

Product Advantages

High Production Capacity

Capable of producing approximately 45 tons per 8-hour shift, meeting the demands of large-scale projects.

High Precision

Length accuracy within ±3 mm, ensuring stable dimensional control and reducing downstream processing errors.

High-Speed Production

Production speed ranges from 0 to 30 m/min, allowing flexible adjustment according to production requirements.

Customization Capability

Supports the production of various flat tube sizes and specifications according to customer drawings.

Stable and Reliable Operation

Designed for long-term continuous operation, reducing downtime and maintenance costs.

Wide Industrial Application

Widely used in air cooling systems for power generation, steel production, coking plants, chemical processing, and pharmaceutical industries.

Air Cooling Condenser Flat Tube Mill Technical Parameters

Customized as per customer requirements

Items	Specification
Tube Size	218.6±0.8mm×19±0.25mm or as per drawing required by Buyer.
Thickness	1.5mm
Length	2~ 12m
Accuracy	±3mm
Line Speed	0 ～30 m/min
Production capacity	Approx. 45T/shift（8hours）

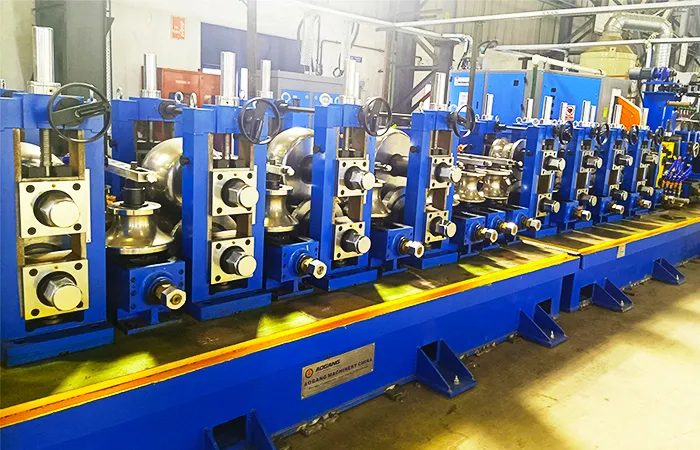

Pipe Mill Video Showcase

These video cases showcase real installation and commissioning processes, allowing you to directly see Aogang’s extensive industry experience, professional service, and the stable performance of our equipment. Our production lines can be customized to meet customer requirements, offering one-stop solutions.

ERW 76 Tube mill

The ERW 76 Tube Mill is a high-efficiency ERW Tube Mill designed for the production of round, square, and rectangular steel pipes. Suitable for pipe diameters ranging from 22mm to 76mm and wall thicknesses from 0.9mm to 4.0mm, this machine delivers stable HF welding performance, precise forming accuracy, and reliable continuous operation.

ERW 89 Tube Mill

The ERW 89 Tube Mill is a high-efficiency ERW Tube Mill designed for the production of small and medium-diameter welded steel pipes. It is suitable for round pipes with an outer diameter of 32–89 mm and wall thicknesses of 1.2–4.5 mm, and can also produce corresponding square and rectangular tubes.

ERW 127 Tube mill

The ERW 127 Tube Mill is a high-performance ERW Tube Mill designed for the production of round steel pipes with an outer diameter of 48 mm–127 mm and a wall thickness of 1.5 mm–5.0 mm, as well as corresponding square and rectangular tubes.

ERW 273 Tube Mill

The ERW 273 Tube Mill is a high-efficiency straight seam welding machine designed for medium to large-diameter steel pipe production, capable of manufacturing round, square, and rectangular pipes with an outer diameter of up to 273 mm. It adopts mature high-frequency resistance welding (HFRW) technology to achieve continuous production from steel strip to finished pipe. The production line operates stably with high forming precision, making it ideal for large-scale manufacturing across various industrial sectors.

ERW325 Tube Mill

The ERW 325 Tube Mill is a large diameter ERW Tube Mill designed to produce round steel pipes with an outer diameter of 165mm–325mm and wall thicknesses of 3.0mm–14.0mm. It can also manufacture corresponding square and rectangular pipes, providing a reliable solution for large diameter welded steel pipe production. The production line integrates uncoiling, forming, high-frequency welding, sizing, and cutting processes into a complete continuous production system. With an optimized line layout and stable operation performance, it is suitable for efficient manufacturing of large-size and thick-wall steel pipes.

ERW 660 Tube Mill

The ERW660 Tube Mill is a large-diameter welded pipe production line designed for manufacturing high-strength and heavy-wall steel pipes. It can stably produce longitudinal welded steel pipes with an outer diameter ranging from Φ406mm to Φ660mm, and can also be configured for producing square and rectangular tubes according to customer requirements. This equipment is widely used in industries such as construction structures, oil and gas transportation, steel structures, and heavy machinery, providing an efficient solution for large-diameter welded steel pipe production.
