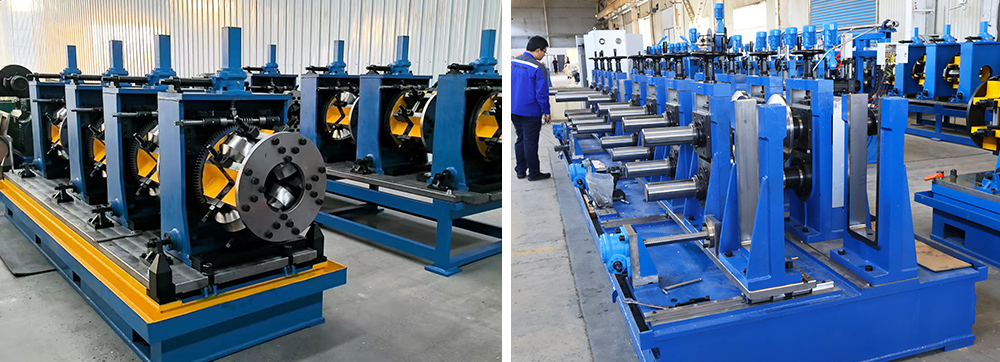

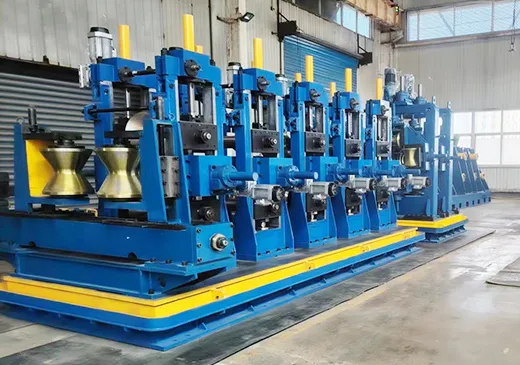

A High Frequency Welding Tube Mill, also known as a high frequency welded pipe mill, is a complete production line used for the continuous manufacturing of welded steel pipes.
The equipment uses steel strips (coils) as raw material and produces round pipes, square pipes, rectangular pipes, or special-shaped welded tubes through processes such as forming, welding, sizing, and cutting.
High frequency welding tube mill technology is widely applied in the production of ERW pipes (Electric Resistance Welded Pipes) and is recognized as one of the most mature and efficient welded pipe manufacturing processes in the steel pipe industry.
The core of a high frequency welding tube mill lines in high frequency induction heating and resistance welding technology. The basic working process includes the following steps:
The steel coil is uncoiled and preliminarily leveled to provide stable raw material for the subsequent forming process.
The steel strip is gradually bent by multiple forming rolls, transforming from a flat strip into an open-round tube or profile.
High frequency current is concentrated on the strip edges through induction or contact welding
The strip edges are rapidly heated to the welding temperature
Under the action of squeeze rolls, the two heated edges are fused together to form a solid weld seam
After welding, excess internal and external burrs are removed to improve the surface quality and inner wall finish of the pipe.
Sizing stands are used to ensure pipe dimensional accuracy and straightness.
The pipe is automatically cut to preset lengths to obtain finished welded steel pipes.
Fast heating speed with high frequency welding
Suitable for continuous and automated production
High output per unit time, ideal for large-scale industrial production
Uniform weld seam with high strength
Dense weld structure and good mechanical properties
Meets the requirements of structural pipes and mechanical tubes
No welding wire or flux required
Controllable energy consumption and high material utilization
Suitable for long-term stable operation
Capable of producing round, square, rectangular, and certain special-shaped pipes
Covers a wide range of pipe diameters and wall thicknesses
Can be equipped with automatic control systems
Reduces manual intervention and improves production stability and consistency
Welded steel pipes produced by high frequency welding tube mills are widely used in various industries, including:
Scaffolding pipes
Structural steel tubes
Guardrails and support structures
Mechanical structural tubes
Equipment frame pipes
Conveyor roller tubes
Automotive structural components
Seat tubes and exhaust pipes
Traffic facility pipes
Low-pressure fluid transportation pipes
Auxiliary pipelines for oil and natural gas
Agricultural irrigation pipes
Furniture steel tubes
Metal shelving
Fitness equipment tubes
As a professional tube mill manufacturer, Aogang has accumulated extensive project experience in the design, manufacturing, and delivery of high frequency welding tube mills, providing customers with stable and reliable solutions.
With years of practical experience in ERW tube mills, Aogang can reasonably configure solutions according to different pipe applications (structural pipes, mechanical tubes, low-pressure fluid pipes), including:
Forming stand structure
High frequency welding system
Sizing and straightening solutions
This ensures a good balance between welding stability, forming accuracy, and product consistency.
Aogang high frequency welding tube mills adopt proven high frequency welding technology solutions:
Concentrated welding energy with uniform seam heating
Stable welding process suitable for long-term continuous operation
Good weld strength and consistency
These systems meet production requirements for welded pipes with different diameters and wall thicknesses.
During the manufacturing process, Aogang focuses on machining and assembly precision of key components:
High-strength mill frames with stable operation
Controlled precision of forming rolls and key transmission components
Standardized assembly of welding and sizing sections to reduce vibration and deviation
This helps extend equipment service life and reduce long-term maintenance costs.
Aogang provides customized high frequency welding tube mill solutions based on customers’ actual production requirements, including:
Customized pipe diameter and wall thickness ranges
Production speed and automation configuration options
Solutions for round, square, and rectangular pipe production
This helps customers achieve a reasonable balance between investment cost, production capacity, and product positioning.
In addition to supplying the equipment itself, Aogang also provides:
Installation and commissioning support
Operation and maintenance training
Technical upgrades and spare parts support
These services help customers achieve stable production quickly and improve overall manufacturing efficiency.
High frequency welding tube mills are key equipment in welded steel pipe production.
With mature process design, stable welding systems, and standardized manufacturing practices, Aogang high frequency welding tube mills provide reliable and efficient welded pipe production solutions for a wide range of industrial applications.
