How Are ERW Pipes Manufactured? Complete Production Process

ERW (Electric Resistance Welded) pipes are widely used in construction, infrastructure, automotive, furniture, and fluid transportation applications due to their high production efficiency, consistent quality, and cost advantages.

Unlike seamless pipes, ERW pipes are manufactured by forming steel strips into a round shape and welding the edges through high-frequency electric resistance welding. The entire production process involves multiple stages, including coil preparation, forming, welding, sizing, cutting, and quality inspection.

Understanding how ERW pipes are manufactured helps steel pipe producers select suitable production methods and improve manufacturing efficiency.

1. Steel Coil Preparation

The ERW pipe manufacturing process starts with high-quality steel coils.

Before production, the steel coil is inspected to ensure it meets the required standards for:

· Material strength

· Thickness accuracy

· Surface quality

· Chemical composition

The coil is then loaded onto the uncoiler, which continuously feeds the steel strip into the production line.

Proper coil preparation helps maintain stable production and ensures consistent pipe quality during later processing.

2. Steel Strip Forming

After entering the production line, the steel strip passes through a series of forming rollers.

The rollers gradually bend the flat steel strip into a cylindrical shape until both edges meet.

During this stage, accurate forming control is important because it directly affects:

· Pipe roundness

· Welding stability

· Dimensional accuracy

· Final product quality

Modern ERW pipe production uses precision forming technology to achieve stable and efficient manufacturing.

3. High-Frequency Welding Process

The key step in ERW pipe manufacturing is high-frequency electric resistance welding.

When the formed steel strip edges approach each other, high-frequency electrical current generates heat at the welding area. The heated edges are pressed together to create a strong welded joint.

The high-frequency welding process provides advantages such as:

· High welding speed

· Strong and reliable welds

· Continuous production capability

· Reduced material waste

This technology is widely used for manufacturing carbon steel pipes, structural tubes, and various welded pipe products.

4. Sizing and Straightening

After welding, the pipe passes through sizing and straightening sections.

The purpose of this stage is to achieve precise pipe dimensions and improve product consistency.

The sizing process controls:

· Outer diameter

· Pipe shape

· Straightness

· Dimensional tolerance

For applications requiring high accuracy, advanced sizing technology helps ensure stable pipe performance.

5. Online Cutting and Length Control

After sizing, the continuous pipe is cut into required lengths according to customer specifications.

Common cutting methods include:

· Cold saw cutting

· Flying saw cutting

Accurate cutting ensures that finished pipes meet production requirements and are ready for packaging or further processing.

6. Quality Inspection of ERW Pipes

Quality inspection is an essential part of ERW pipe manufacturing.

Manufacturers usually perform inspections such as:

· Weld quality inspection

· Dimensional measurement

· Surface inspection

· Mechanical property testing

Some applications, including structural projects and industrial pipelines, require strict quality control to ensure safe and reliable operation.

7. Applications of ERW Pipes

Due to their excellent manufacturing efficiency and versatility, ERW pipes are widely used in:

· Construction structures

· Steel frameworks

· Automotive components

· Furniture manufacturing

· Water and gas transportation

· Industrial equipment

Different applications require different pipe sizes, materials, and production capabilities.

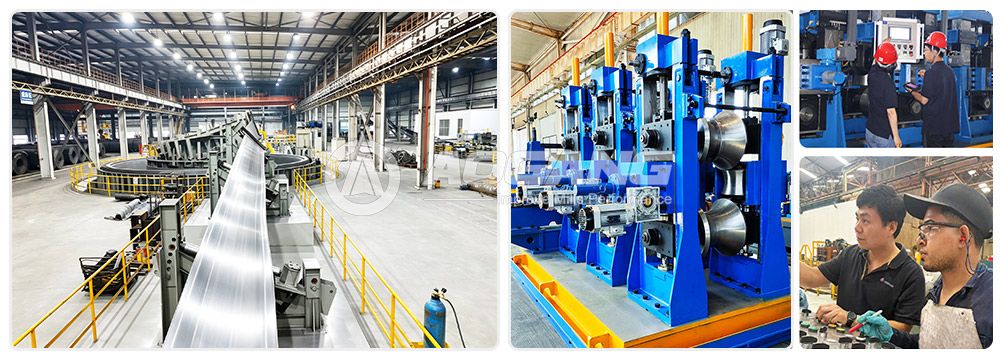

ERW Pipe Manufacturing Equipment

A complete ERW pipe production system usually includes:

· Coil handling system

· Forming section

· High-frequency welding system

· Sizing section

· Cutting system

· Quality inspection equipment

For manufacturers planning to produce welded steel pipes, selecting a reliable ERW pipe production solution is essential for achieving stable output and consistent quality.

Aogang provides ERW Tube Mill solutions designed for producing round, square, rectangular, and special-shaped welded pipes with efficient production performance and reliable operation.

Conclusion

The ERW pipe manufacturing process involves multiple precise stages, from steel coil preparation and forming to high-frequency welding, sizing, cutting, and inspection.

With advanced production technology and proper equipment configuration, manufacturers can achieve high-quality welded pipes with improved efficiency and reduced production costs.

Understanding the complete ERW pipe production process is the first step for companies looking to optimize their steel pipe manufacturing operations.
