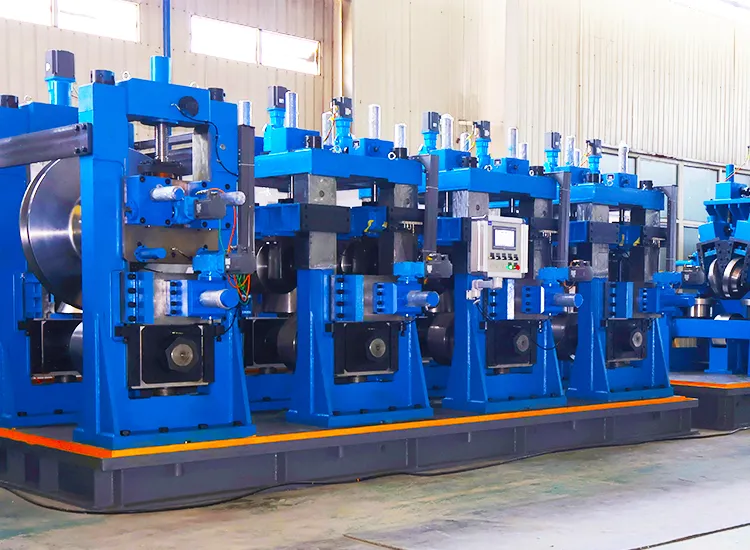

High Frequency Tube Mill - Core Equipment for Steel Pipe Production

With the steel pipe industry moving toward higher precision and efficiency, high frequency welded tube mills have become the core equipment in modern steel pipe manufacturing. This article highlights their key technologies, commissioning cycle, advantages, and performance evaluation, providing professional insights for industry users.

Core Technology: Stable Welding and Precision Forming

The core of high frequency welded tube mills lies in high frequency welding technology. By generating localized heating along the edges of the tube blank with high frequency current, steel pipes can be welded at high speed. Key technologies include:

High Frequency Welding Power: Provides stable and controllable welding current, ensuring uniform welds with high strength.

Precision Forming System: Uses precision roll sets and straightening devices to control pipe dimensions and minimize deformation.

PLC Inelligent Control: Integrates automated control for feeding, forming, welding, straightening, and cutting throughout the production process.

Cooling and Inspection System: Ensures timely cooling and online non-destructive testing (such as ultrasonic or eddy current inspection) to guarantee weld quality.

2. Commissioning Cycle: Efficient and Precise

Thanks to intelligent control systems and modular design, the commissioning cycle of high frequency welded tube mills is usually shorter than that of traditional pipe production lines. From installation to production readiness, an experienced team can complete commissioning within 5–8 weeks, approximately 30% faster than conventional furnace-welded pipe mills.

3. Equipment Advantages: Efficiency, Quality, and Cost Improvement

High Efficiency: High-speed welding combined with automated operation increases output and reduces production time.

High recision: Precision forming and automatic straightening ensure consistent pipe dimensions and lower scrap rates.

Low Energy Consumption: Concentrated high frequency welding reduces heat loss and saves electricity.

Strong Material Versatility: Capable of processing carbon steel, low-alloy steel, galvanized sheets, and other materials to meet diverse market demands.

4. Differences from Traditional Pipe Equipment

Welding Method: Traditional equipment mainly uses resistance or furnace welding; high frequency welding is faster and produces higher-quality welds.

Automation Level: Traditional equipment relies on manual operation with unstable output; high frequency welded tube mills achieve full automation and continuous production.

Energy Efficiency: High frequency welding consumes less energy by minimizing heat loss.

Maintnance and Commissioning: Modular design allows quick commissioning and maintenance, reducing downtime.

5. Performance Evaluation: Ensuring Production Reliability

Key performance indicators for high frequency welded tube mills include:

Weld Srength and Integrity: Non-destructive testing ensures defect-free welds.

Dimensional Accuracy: Pipe diameter, wall thickness, and straightness meet standard specifications.

Production Efficiency: Output per unit time and equipment uptime.

Energy Consumption: Welding power and energy consumption per unit of pipe.

Equipment Stability: Fault rate, ease of maintenance, and service life.

6. Aogang High Frequency Tube Mill Advantages

Aogang high frequency tube mills stand out in the industry with the following advantages:

Modular Design: Facilitates fast installation and commissioning, reduces downtime, and increases production efficiency.

Full Automation and Intelligent Control: Achieves fully automated forming, welding, straightening, and cutting, providing easy operation and stable output.

Precision Welding and Forming: Uniform welds with high strength and internationally standard pipe dimensions reduce rework and scrap.

Comptibility with Multiple Sizes and Materials: Supports round, square, rectangular pipes, and various materials, meeting diverse customer requirements.

High Reliability and Durability: Key components use premium materials and advanced manufacturing processes, ensuring long service life and low maintenance costs.

High frequency welded tube mills, with their advanced core technologies, short commissioning cycle, high efficiency, and precision, are leading steel pipe manufacturing toward intelligent and high-end production. For steel pipe enterprises pursuing quality and efficiency, choosing a high frequency welded tube mill is not only key to increasing output but also an important strategy to optimize costs and enhance competitiveness. Aogang tube mill, with modular design, full automation, and precision welding, provides a reliable solution for enterprises aiming at efficient and intelligent manufacturing.
