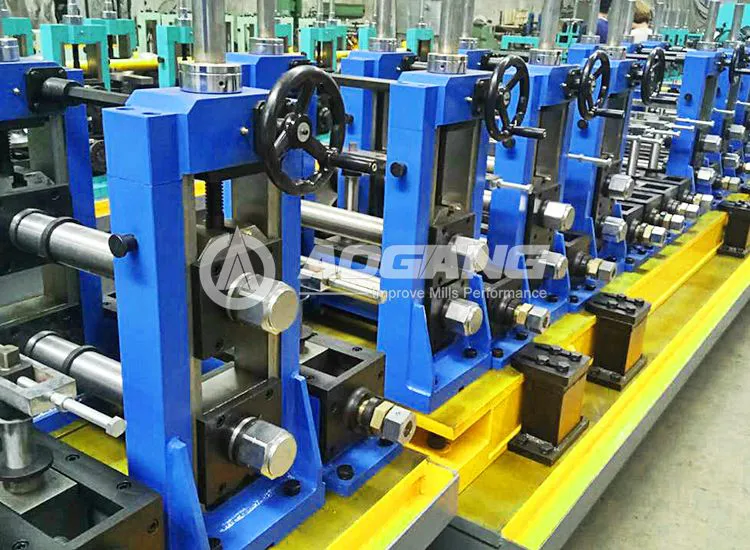

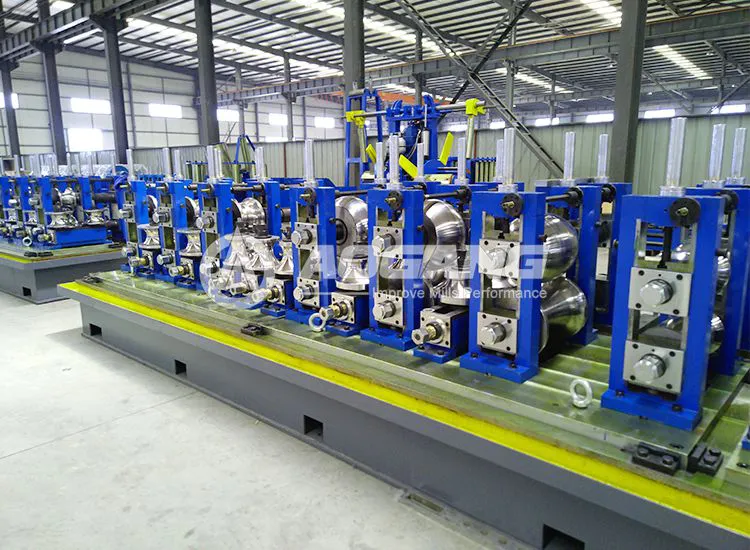

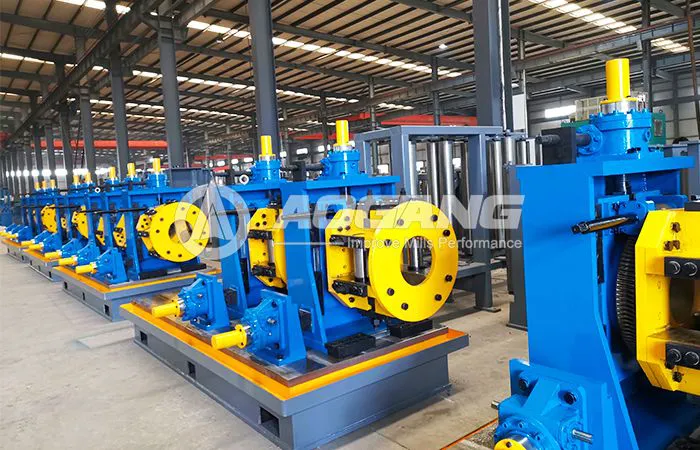

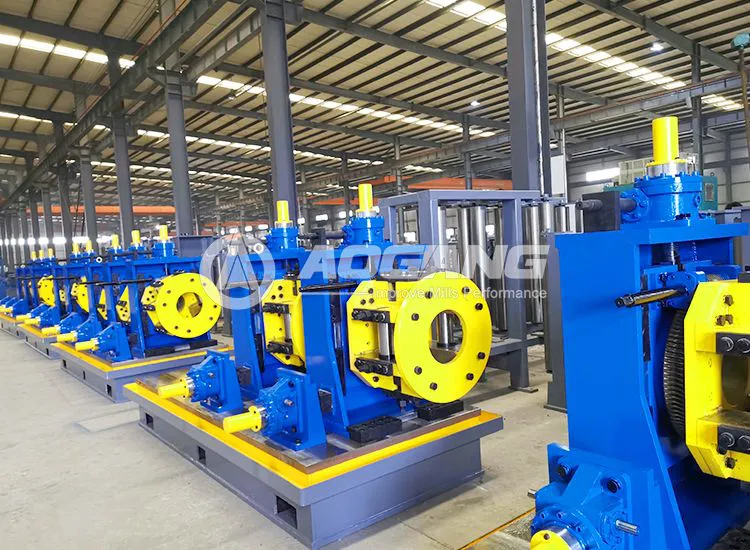

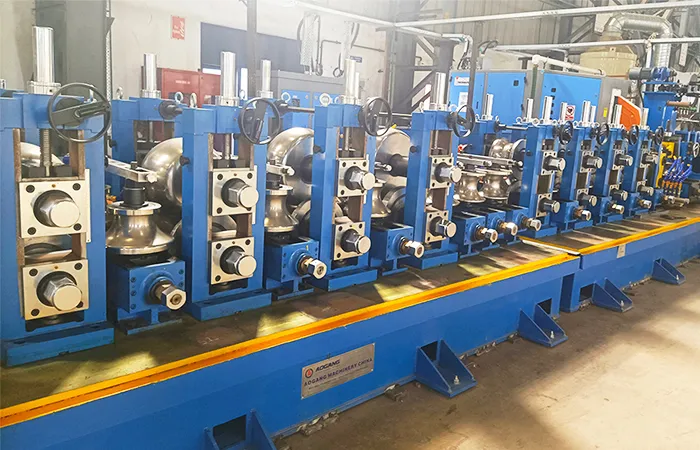

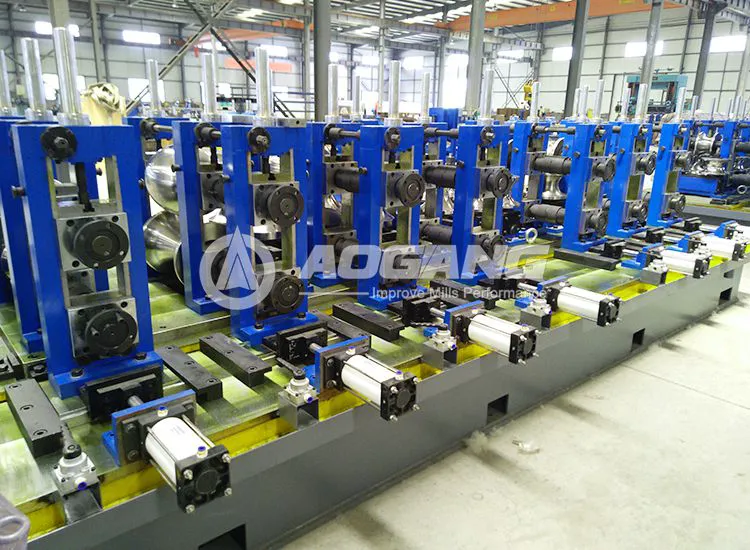

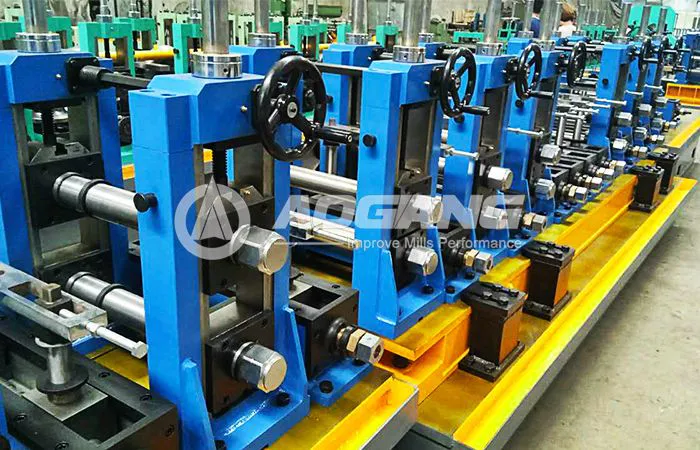

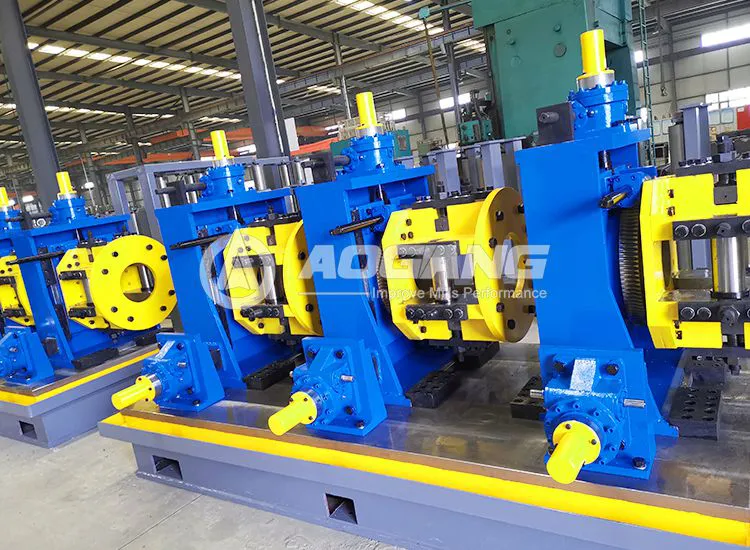

The ERW 101.6 Tube Mill is a high-efficiency ERW Tube Mill designed for welded steel pipe production. It is capable of producing steel pipes with outer diameters of 42mm–101.6mm and wall thicknesses of 1.0mm–4.5mm, as well as corresponding square and rectangular tubes. The machine is widely used in construction, automotive, furniture, agricultural, and other industrial applications, featuring stable operation, high production efficiency, and low defect rates. Customized motor configurations are also available according to customer requirements.
The ERW 101.6 Tube Mill is a high-performance welded pipe production line that utilizes advanced ERW (Electric Resistance Welding) technology to efficiently manufacture steel pipes and profiled tubes in various specifications. Its modular design allows flexible configuration for different industrial applications, including pipeline engineering, machinery manufacturing, and chemical equipment production.
The production line supports continuous operation with speeds of 20–70 m/min depending on pipe specifications and material conditions. It can be equipped with internationally recognized motor brands such as Siemens and Yaskawa to ensure precise power transmission and reliable performance. With an automated control system and high-strength structural design, the ERW 101.6 Tube Mill provides stable operation, consistent welding quality, and long-term service life.
A: The ERW 101.6 Tube Mill can produce welded steel pipes with outer diameters of 42mm–101.6mm and wall thicknesses of 1.0mm–4.5mm, as well as corresponding square and rectangular tubes.
A: The machine is suitable for carbon steel, galvanized steel, and low-alloy steel strips used for welded pipe production.
A: Yes. With suitable tooling and configurations, the production line can manufacture corresponding square and rectangular steel tubes.
A: Yes. Motor brands, electrical components, and control systems can be customized according to customer requirements and local standards.
A: Yes. Aogang provides technical support including installation guidance, commissioning assistance, operator training, and after-sales service.
With a line speed of 20-70 m/min, it significantly boosts productivity and shortens delivery cycles.
Fully automated process control minimizes manual intervention, reducing operational costs.
The reinforced frame design ensures low vibration even at high speeds, guaranteeing dimensional accuracy of pipes.
Advanced welding technology keeps defect rates at industry-leading lows, minimizing material waste.
Supports optional high-end motors from Siemens, Yaskawa, and other brands to accommodate diverse production needs.
Optimized structural design provides stable forming performance for larger pipe sizes, ensuring consistent shaping and reliable wall thickness control.
| Finished product | Round Pipe | Φ42mm-φ101.6mm Thickness: 1.0mm-4.5mm |
| Square & rectangle tube | 35mm×35mm-80mm×80mm Thickness:1.0mm-4.5mm | |
| Length | 5m-12m | |
| Length Tolerance | ±1.5mm | |
| Production Speed | 20-70 m/min | |
| Raw Material | Coil material | ● HR/CR carbon steel or galvanized steel ● High-Strength Low -Alloy- Steel(HSLA) ● Advanced High-Strength Steels (AHSS) |
| Width | 130mm-320mm Thickness: 1.0mm-4.5mm | |
| Coil ID | Φ550-φ610mm | |
| Coil OD | Φ1000～φ1800mm | |
| Coil Weight | 4.0-5.0Tons |
These video cases highlight actual installation and commissioning processes, demonstrating Aogang’s proven expertise, attentive service, and the dependable performance of our equipment. Each production line can be tailored to customer specifications, delivering comprehensive one-stop solutions.
