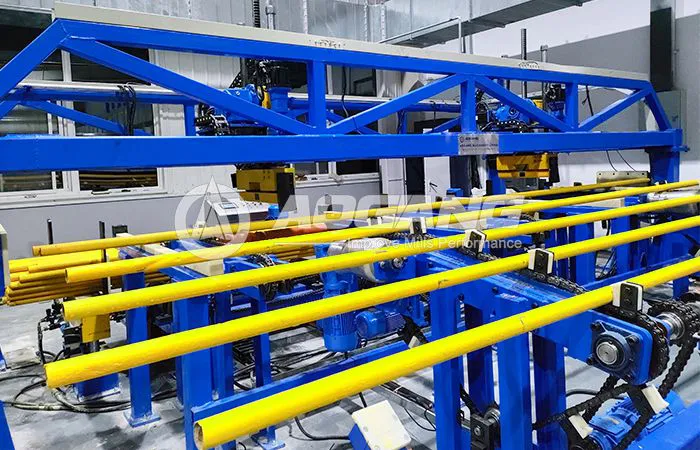

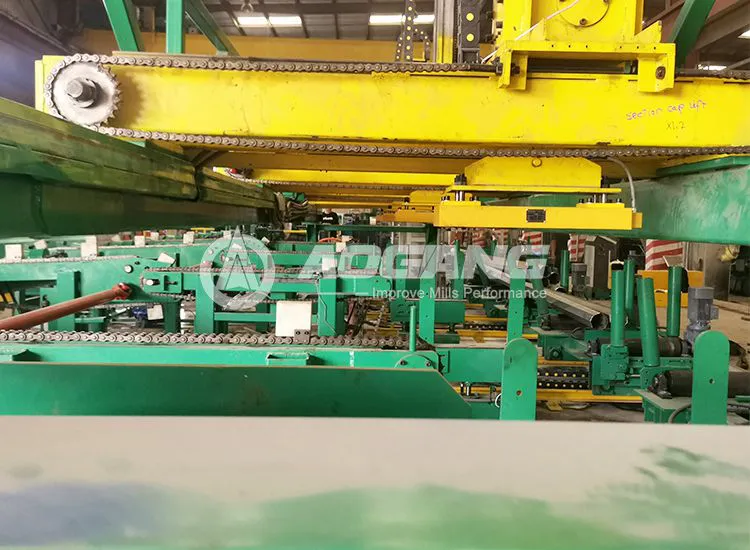

Steel Pipe Stacking Machine

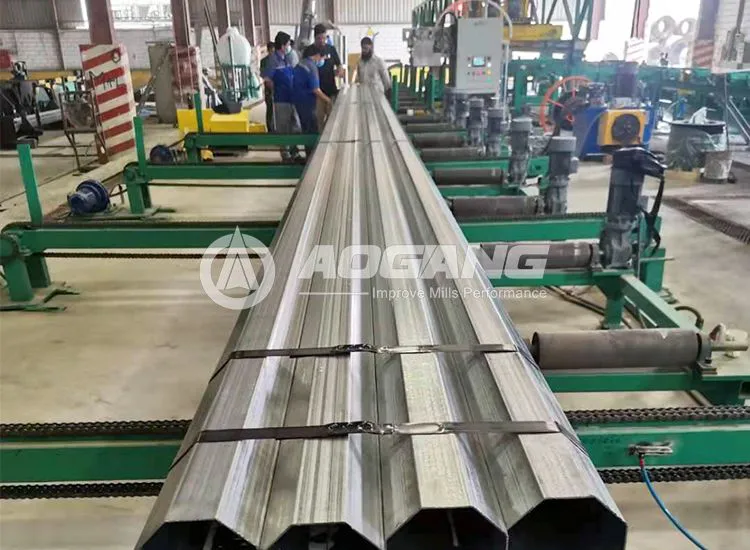

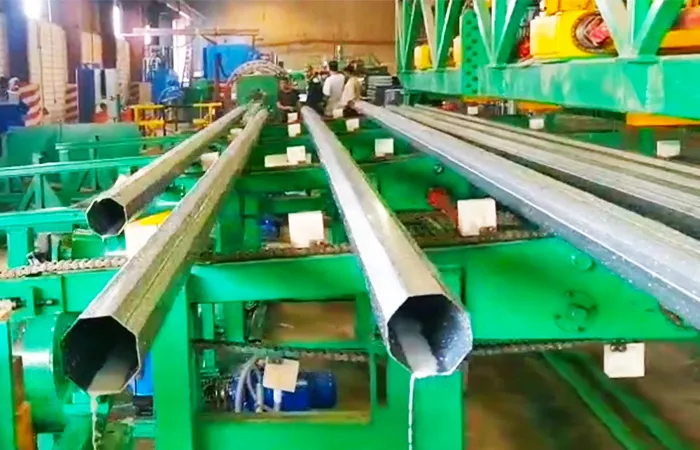

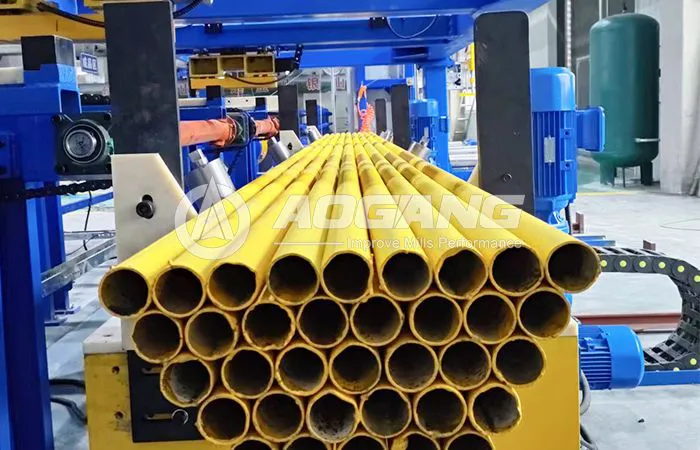

The Steel Pipe Stacking Machine is specially designed for steel pipe production lines. It automatically collects finished pipes and stacks them neatly into hexagonal or square bundles, without the need for manual intervention. Featuring a high degree of automation, stable operation, and adaptability to different pipe sizes and materials, this machine improves production efficiency and ensures product consistency.

Inquire Now + Next Product +

Product Description

Equipped with an intelligent control system, the Steel Pipe Stacking Machine enables fully automated pipe handling—from conveying and positioning to stacking. The equipment allows flexible adjustment of stacking patterns, suitable for both round and square pipes with high precision. Its efficient, low-noise, and safe design not only meets the pace of modern pipe production but also facilitates subsequent packing and transportation.

It is widely applied in high-frequency welded pipe mills, cold roll forming mill, steel pipe making machine, and square tube mill lines—making it an ideal choice for modern steel pipe manufacturers.

Product Advantages

Steel Pipe Stacking Machine Fully Automatic Operation

Handles the entire stacking process automatically, reducing labor costs and minimizing manual handling.

High Stability for Fast Production Lines

Operates reliably in sync with high-speed welding and roll forming equipment.

Ultra-Low Noise Design

Reduces pipe collision and impact noise, creating a safer and more eco-friendly working environment.

Reduced Defect Rate, Improved Safety

Ensures precise pipe stacking, minimizing damage and preventing human error.

Enhanced Packing Efficiency

Produces neatly stacked bundles, simplifying packing and transport, and improving overall product quality.

Flexible Compatibility

Designed to work with a wide range of pipe sizes and production lines, the auto stacking machine adapts easily to different materials and line configurations, ensuring smooth integration and versatile operation.

Steel Pipe Stacking Machine Technical Parameters

Customized as per customer requirements

Item	Specification
Applicable Pipe Type	Round / Square / Rectangular Steel Pipes
Round Pipe Diameter	≤ 254 mm
Maximum Square Pipe Size	≤ 200 × 200 mm
Pipe Length	6 – 12 m (customizable)
Wall Thickness	0.8 – 12 mm (depending on pipe material)
Stacking Type	Layer-by-layer / Side-by-side
Maximum Stacking Height	≤ 1.5 m (customizable)
Stacking Speed	Up to 60 pipes/min (depending on pipe size)
Control System	PLC Automatic Control
Operation Mode	Automatic / Manual
Installation Type	Floor-mounted
Application Line	ERW Tube Mill / Pipe Production Line
Optional Functions	Pipe counting, automatic alignment, bundling interface

Steel Pipe Stacking Machine Video Introduction

These video cases highlight actual installation and commissioning processes, demonstrating Aogang’s proven expertise, attentive service, and the dependable performance of our equipment. Each production line can be tailored to customer specifications, delivering comprehensive one-stop solutions.

Steel Pipe Bundling Machine

The Steel Pipe Bundling Machine is an intelligent packaging solution that combines pipe collection, organized stacking, and automatic strapping into a single system. It efficiently bundles round, square, and rectangular pipes into hexagonal or square packages. Fully automated with no manual intervention, the machine significantly improves packaging efficiency, enhances production safety, and serves as essential terminal automation equipment for modern steel pipe production lines.

Cold Flying Saw Machine

The Cold Flying Saw Machine is an intelligent, high-precision pipe cutting solution designed for welded tube production lines. It supports high-speed online synchronous cutting as well as automated offline cutting operations.The machine is suitable for precision length cutting of round, square, rectangular, and other pipe profiles. With smooth, burr-free cuts that require no chamfering, the Cold Flying Saw Machine significantly improves cutting efficiency and enhances the finished product quality of welded pipe production lines.

High Frequency Solid State Welder

The HF Solid-State High-Frequency Welder serves as the core power source in modern welded pipe production lines, specifically designed for efficient and high-quality welding of precision tubes. It incorporates advanced solid-state power technology, combining high efficiency, superior stability, and exceptional energy savings. It is an ideal choice for ERW pipe mills seeking to enhance both production capacity and product quality.

NC Milling Saw for Tube Mill

The NC milling saw is a high-precision and high-efficiency CNC cutting machine, specially designed for the end-face processing of steel pipes and other metal profiles. Equipped with Siemens motion control systems, it automatically programs the cutting path based on the tube’s cross-sectional shape, enabling intelligent profiling and milling. With cold milling technology, smooth cutting surfaces, and intelligent automation, it is widely used in welded pipe, structural tube, and fluid pipe production lines.

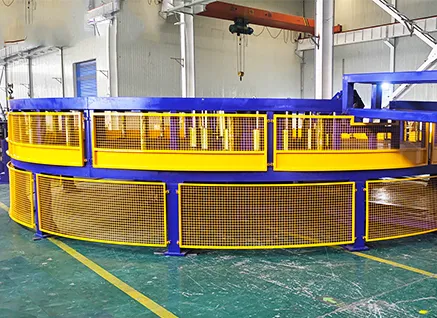

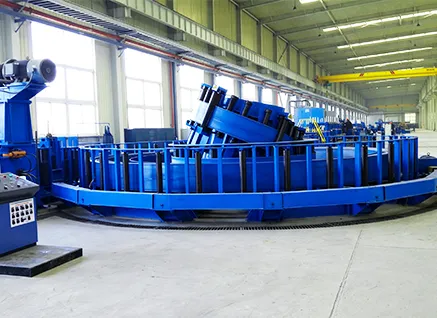

Horizontal Accumulator for Tube Mill

The horizontal accumulator is an advanced strip storage device designed for tube mill lines. It ensures continuous strip feeding during coil change, welding, or shear operations, allowing the tube mill to run without interruption. With high storage capacity, smooth strip handling, and energy-efficient performance, the horizontal accumulator is an essential component for modern, high-speed welded pipe production lines.

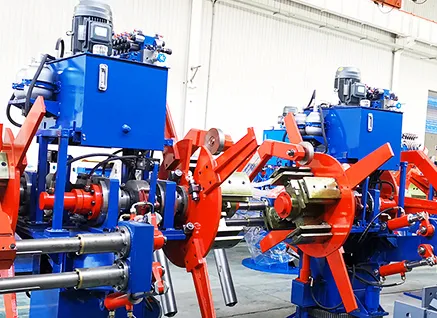

Uncoiler Machine
