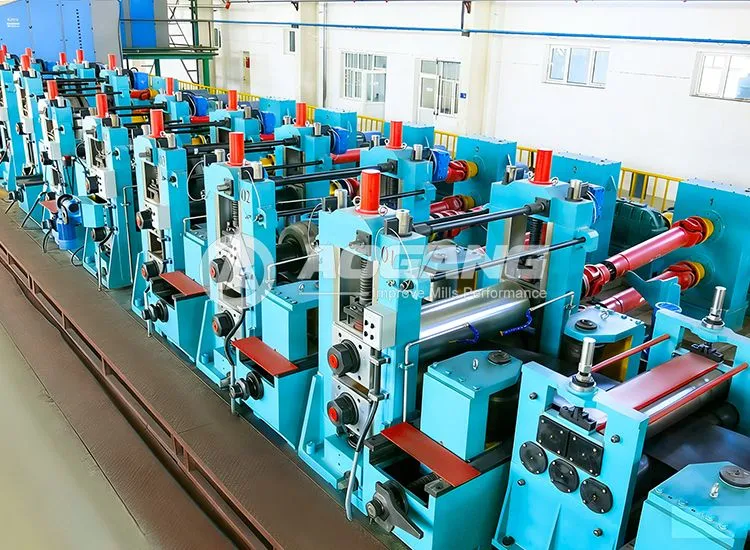

Square Tube Mill

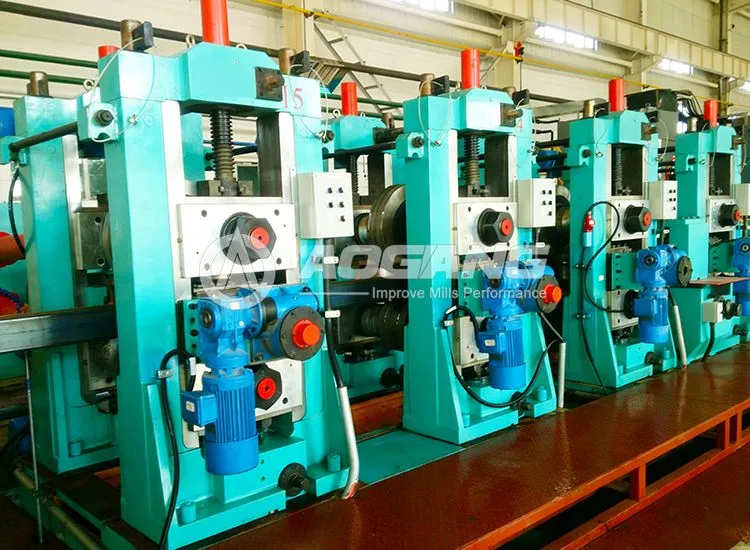

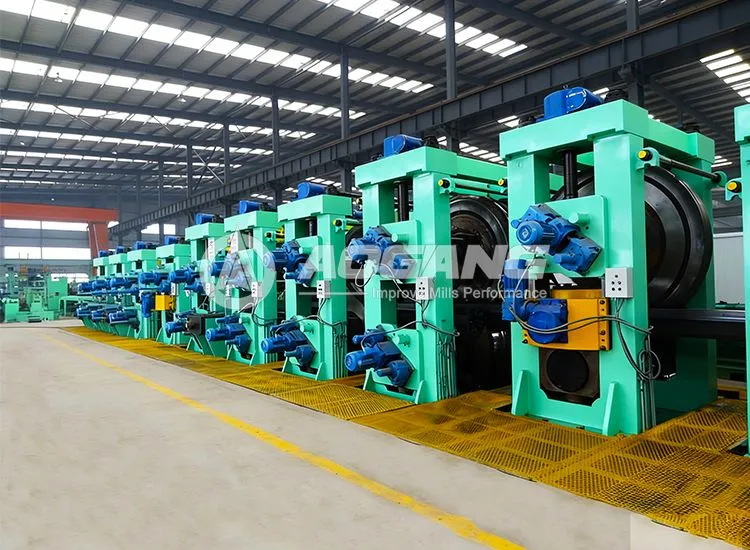

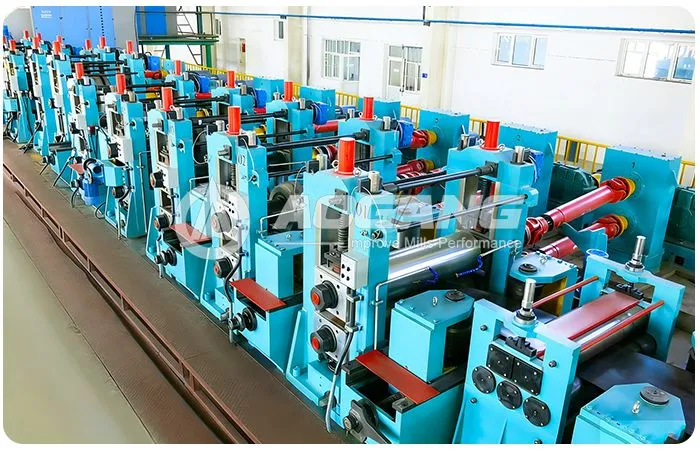

Aogang square tube mill is a high-efficiency, energy-saving intelligent pipe making equipment that can directly form strip steel into square or rectangular tubes, eliminating the traditional process of “round forming → reshaping.” The entire line features a high degree of automation, enabling fully automatic operation from uncoiling to packaging, and is widely used for producing MS pipes, GI pipes, and high-strength steel pipes.

Inquire Now + Next Product +

Product Description

Aogang has over 20 years of experience in the R&D and manufacturing of tube mills. With three dedicated design centers and a professional installation team, we offer strong research, development, and project execution capabilities. Supported by international certifications such as CE and SGS, and with over 2,000 production lines successfully installed worldwide, Aogang has become a trusted partner for customers across the globe.

Aogang Square Tube Mill – Five Key Advantages

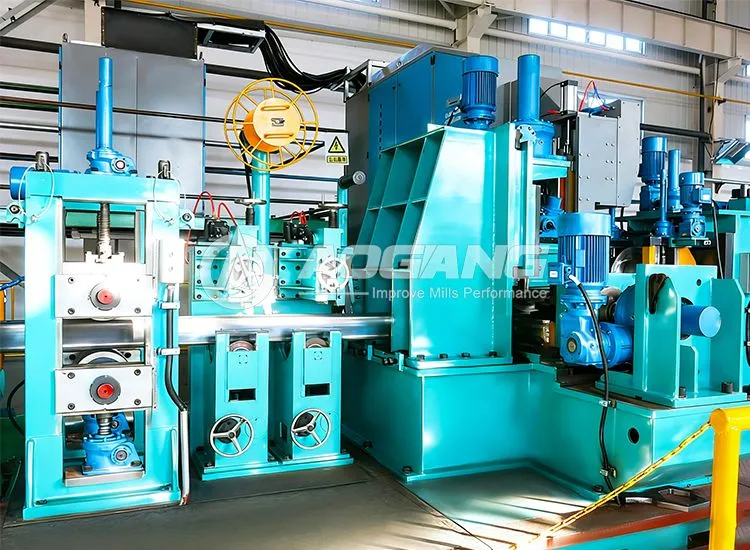

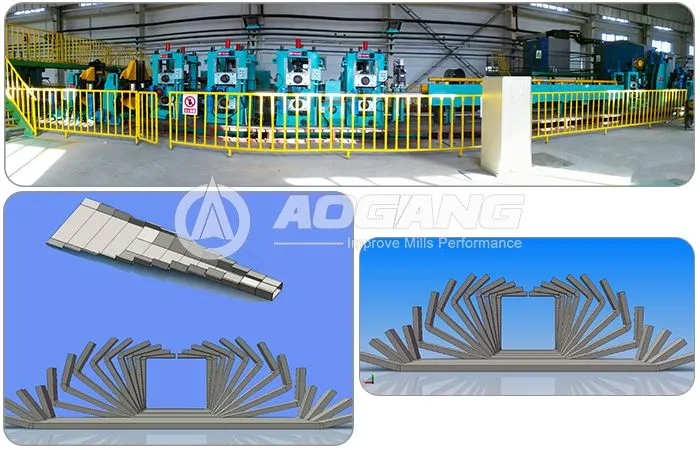

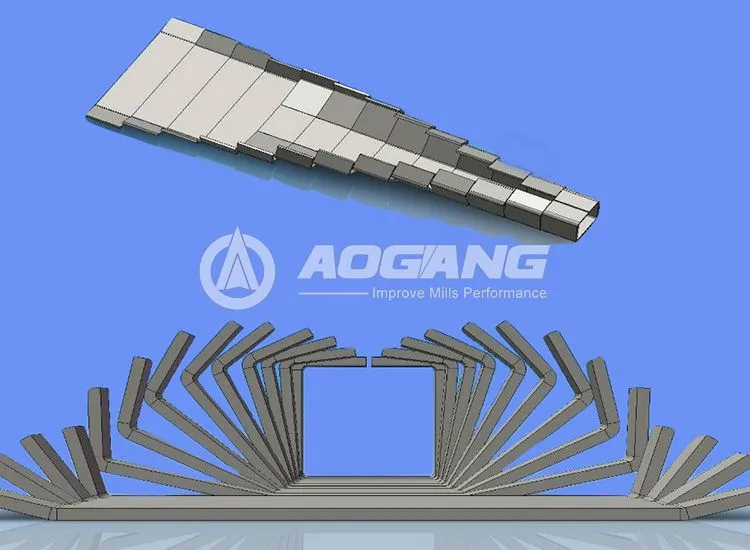

Direct Forming Technology

Steel strips are directly formed into square or rectangular tubes, eliminating the traditional “round forming → reshaping” process.

Advantage over competitors: Simplifies production, improves efficiency, and reduces material waste.

High Automation and Intelligent Control

Full-line automation from uncoiling to packaging, with intelligent mold-changing systems.

Advantage over competitors: Minimizes manual intervention, ensures stable operation, and allows quick changeovers for multi-specification production.

High Precision and Consistent Quality

Ensures accurate tube dimensions, precise corners, and uniform welds for MS, GI, and high-strength steel pipes.

Advantage over competitors: Produces high-quality tubes suitable for construction, machinery, furniture, and industrial applications.

Energy and Cost Efficiency

Optimized forming and welding processes reduce energy consumption, material loss, and operational costs.

Advantage over competitors: Lower total cost of ownership while maintaining production capacity.

Flexible and Multi-Specification Production

Supports small-batch, multi-size orders with rapid mold adjustment.

Advantage over competitors:Offers higher adaptability for diverse customer requirements, reducing downtime and improving market responsiveness.

The Square Tube Straight Forming Unit features advanced straight-forming technology, enabling flexible multi-specification production and rapid changeovers. It is ideal for customers with diverse production needs, including small-batch and multi-size orders. Equipped with a highly automated and intelligent mold-changing system, the unit not only improves production efficiency but also significantly reduces both investment and operational costs.

Product Advantages

Material Savings

The straight forming process reduces material costs by approximately 5% compared to traditional methods.

High-Precision Corner Control

Precise adjustment of the four-corner arc radius ensures a visually appealing finish and high strength.

Quick Size Changeover

Enables multi-size, small-batch production without the need to replace rollers.

Intelligent Mold Change

Electric adjustment + fully automated computer control allows one-touch mold change, significantly reducing setup time.

Cost-Effective Investment

A single set of rollers covers all specifications, eliminating the need for additional rollers and storage space.

Enhanced Structural Strength

Optimized forming and welding processes ensure stable dimensions, improved corner integrity, and higher overall tube strength, making it ideal for demanding structural applications.

Square Tube Mill Technical Parameters

Customized as per customer requirements

Finished Pipe Specifications	Square Tube Size	20 mm × 20 mm – 500 mm × 500 mm
	Rectangular Tube Size	20 mm × 30 mm – 500 mm × 600 mm
	Pipe Wall Thickness	1.5 mm – 16.0 mm (customizable)
	Fixed Length	6 m – 12.5 m (customizable, special lengths available)
Equipment Performance	Production Speed	10 m/min – 80 m/min
	Forming Method	High-frequency welded forming
	Cutting Method	Flying saw cutting / Saw blade cutting
Raw Material Specifications	Strip Width Range	60 mm – 1600 mm (customizable)
	Strip Thickness Range	1.5 mm – 16.0 mm (customizable)
	Material	Carbon steel, galvanized steel, stainless steel
Other Parameters	Operation Mode	Automatic control / PLC + touch screen
