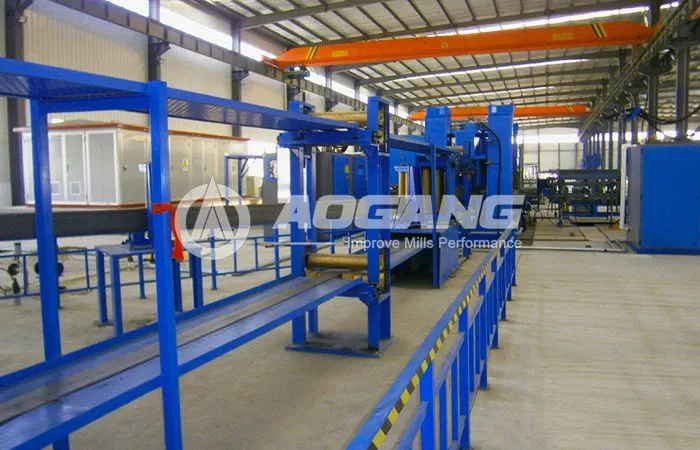

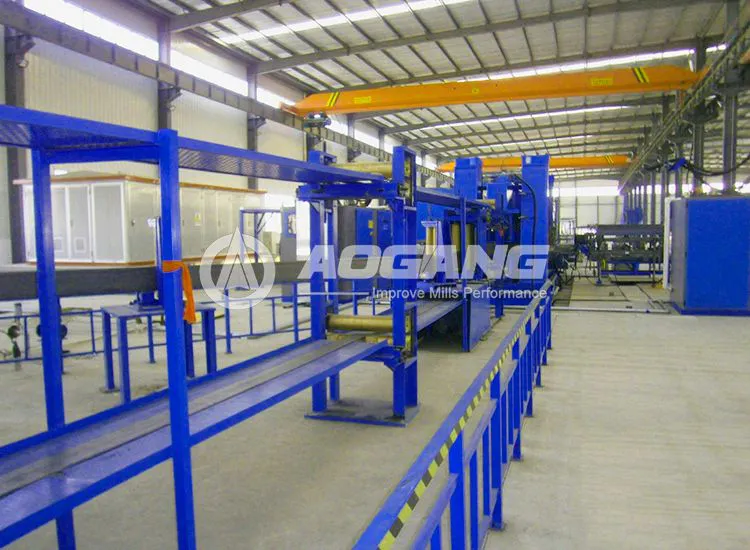

H-Beam Welding Line

The Aogang High-Frequency H-Beam Welding Line is an advanced manufacturing solution based on High-Frequency Welding (HFW) technology, designed for efficient and precise production of lightweight welded H-beams. The line supports flexible production by allowing customized flange widths, web heights, plate thicknesses, and beam lengths to meet diverse structural requirements. It is widely used in industrial buildings, warehouses, factory workshops, bridges, railway platforms, agricultural greenhouses, and other steel structure applications.

Inquire Now + Next Product +

Product Description

Aogang Machinery specializes in the research, development, and manufacturing of advanced welding and roll forming equipment. As an advanced solution within Aogang's Tube Mill Line portfolio, the High-Frequency H-Beam Welding Line integrates intelligent automation, precision assembly, High-Frequency Welding (HFW), fixed-length cutting, and straightening into a complete production system, ensuring stable operation, consistent weld quality, high production efficiency, and reliable long-term performance.

Compared with conventional hot-rolled H-beams, high-frequency welded H-beams can reduce structural weight by up to 25% while maintaining comparable structural performance. The production line also supports fixed-length manufacturing, helping reduce material waste, cutting operations, and production costs while improving material utilization.

The highly automated production process integrates flange and web plate assembly, High-Frequency Welding (HFW), intelligent online adjustment, fixed-length cutting, and straightening into one continuous workflow. The advanced control system ensures excellent straightness, dimensional accuracy, and consistent weld quality, providing efficient, flexible, and reliable H-beam manufacturing for modern steel structure projects.

Frequently Asked Questions About High-Frequency H-Beam Welding Line

1. What are the main processing steps included in the High-Frequency H-Beam Welding Line?

The production line integrates flange and web plate assembly, High-Frequency Welding (HFW), online adjustment, fixed-length cutting, and straightening into one continuous automated manufacturing process. This improves production efficiency while ensuring stable weld quality and dimensional accuracy.

2. What welding technology does the H-Beam Welding Machine use?

The Aogang H-Beam Welding Machine utilizes advanced High-Frequency Welding (HFW) technology to achieve efficient, stable, and high-strength welding. HFW provides excellent weld consistency, high productivity, and energy-efficient operation for modern steel structure manufacturing.

3. How does the production line ensure the straightness of welded H-beams?

The production line is equipped with an integrated straightening system that automatically corrects flange deformation after welding. Combined with intelligent process control, it ensures excellent straightness, dimensional accuracy, and consistent product quality.

4. Can the High-Frequency H-Beam Welding Line be customized?

Yes. Aogang provides customized solutions based on production capacity, H-beam dimensions, material grades, and factory layout requirements. Our engineering team can tailor the complete production line to meet different steel structure manufacturing applications.

Product Advantages

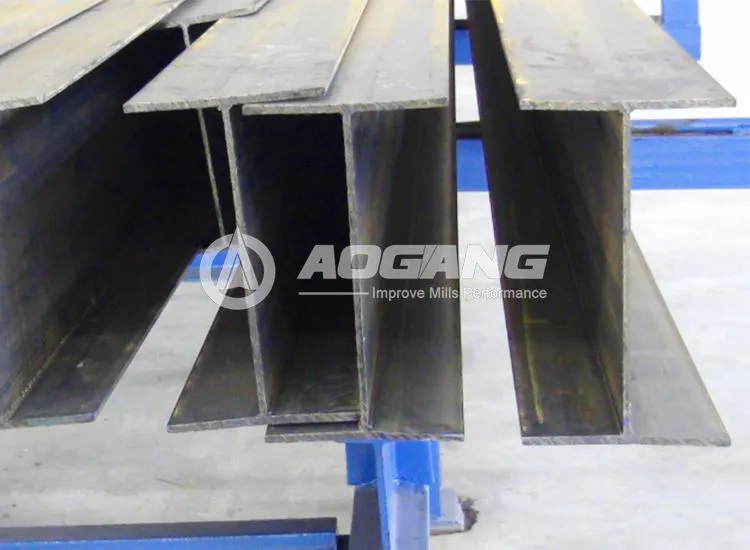

Lightweight Structural Design

Flexible Customization

The production line supports customized flange widths, web heights, plate thicknesses, and beam lengths, allowing manufacturers to produce H-beams tailored to different structural and engineering requirements.

High Production Efficiency

Based on advanced High-Frequency Welding (HFW) technology and automated production, the line delivers continuous manufacturing with stable operation, high productivity, and consistent welding quality.

Reduced Material Waste

Fixed-length production minimizes scrap, reduces secondary cutting operations, improves material utilization, and helps lower production costs.

Lower Investment Cost

Compared with conventional hot rolling mills, the High-Frequency H-Beam Welding Line requires significantly lower initial investment while providing flexible production for multiple H-beam specifications.

Wide Application Range

The production line is suitable for manufacturing lightweight welded H-beams for industrial buildings, warehouses, factory workshops, bridges, railway platforms, agricultural greenhouses, commercial buildings, and various steel structure applications.

H-Beam Welding Line Technical Parameters

Customized as per customer requirements

Web Height	50 mm - 700 mm
Flange Width	50 mm - 350 mm
Flange Thickness	2 mm - 14 mm
Web Thickness	1.8 mm - 12 mm
Steel Section Length	3 m - 15 m
Production Line Speed	12 m/min - 40 m/min
