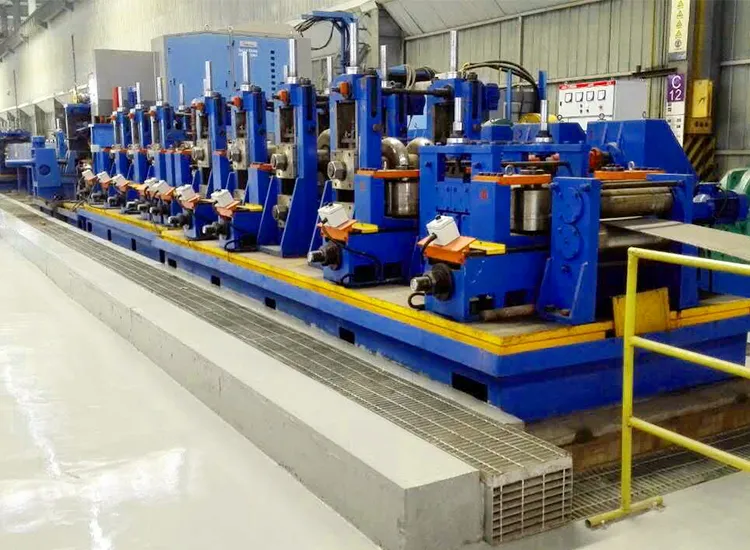

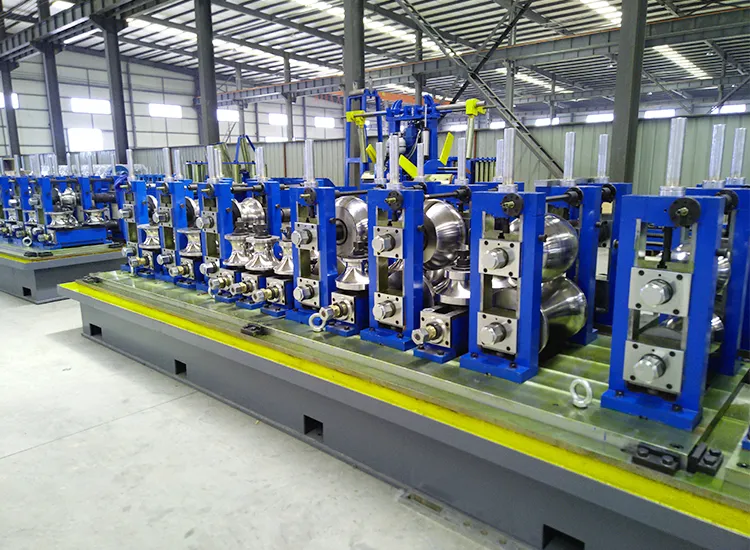

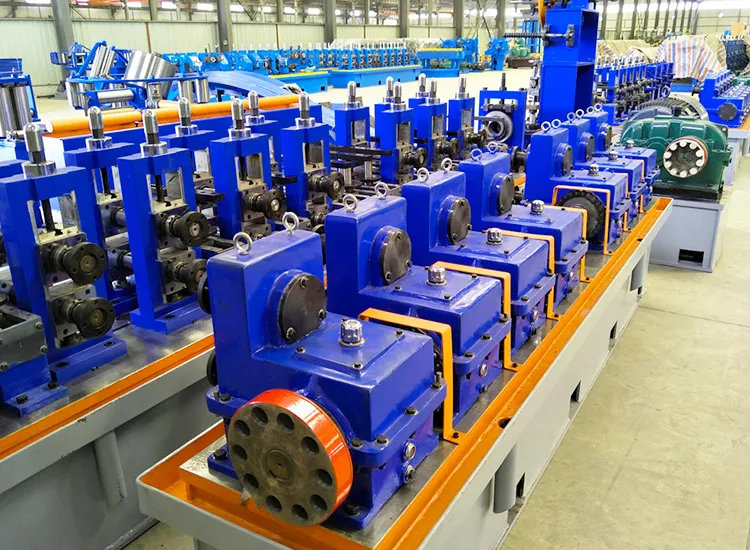

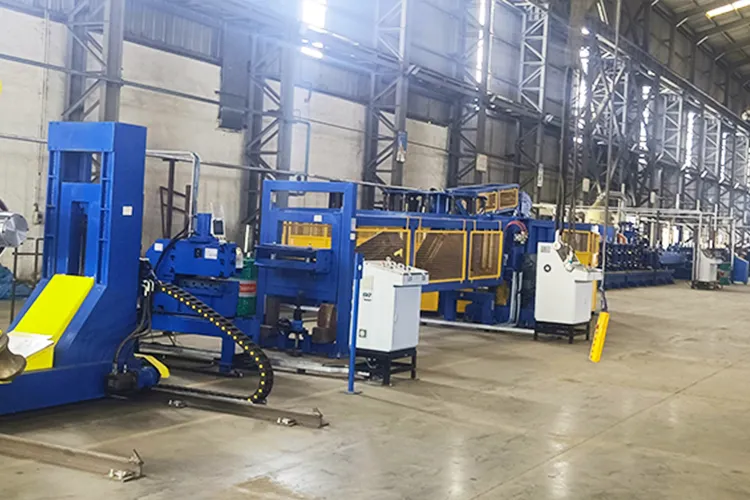

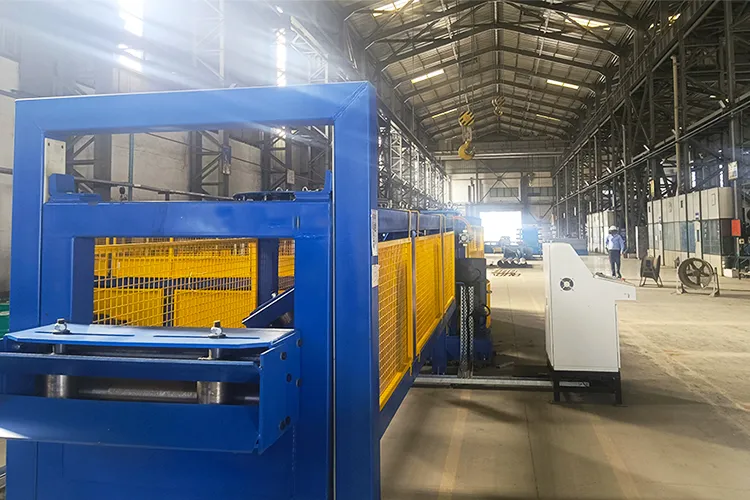

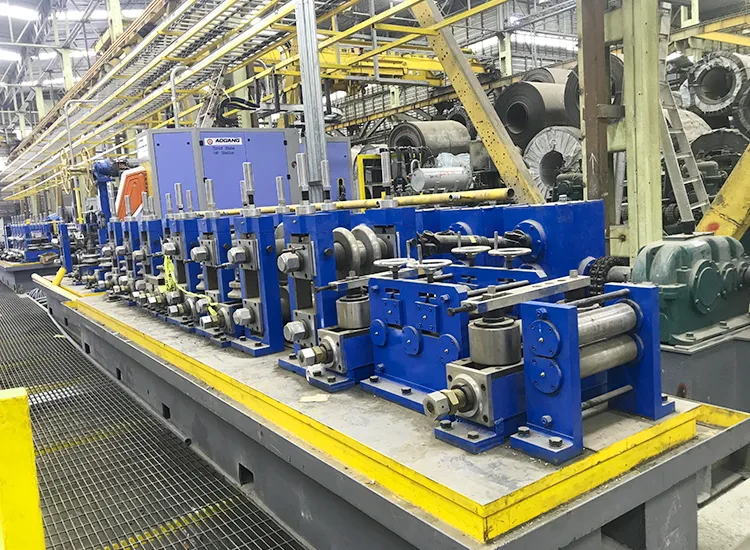

Our client for this project, a leading heat exchanger and condenser manufacturer in India, procured a Condenser Steel Pipe Making Machine from Aogang. They specialize in providing high-quality heat exchange solutions for the power, petrochemical, and refrigeration industries.
The advanced PLC control system ensures tube dimensional tolerances within ±0.05 mm.
Equipped with laser diameter gauges and an online inspection system for real-time quality monitoring, significantly reducing scrap rates.
Fully automated line minimizes manual intervention, increasing productivity by over 30%.

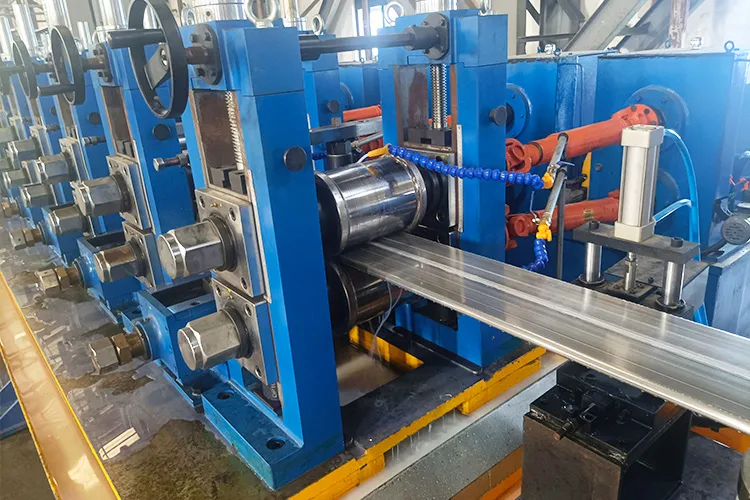

Automatic feeding, welding, sizing, and straightening enable continuous, stable 24/7 operation.

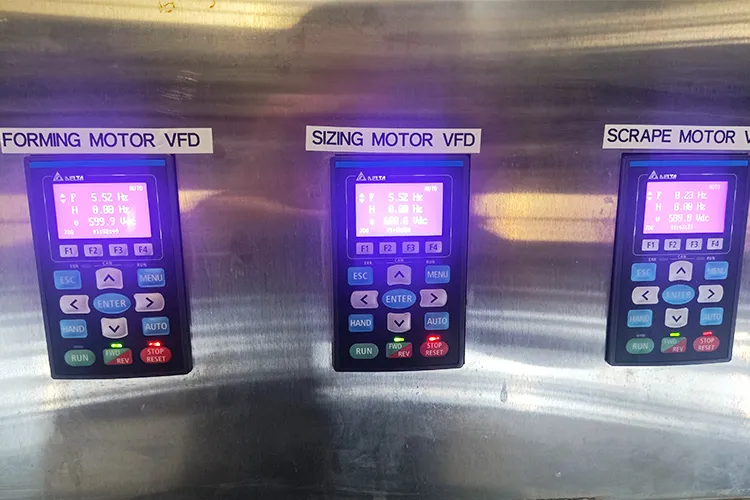

Variable frequency drive technology reduces total energy consumption by 15%.
Integrated waste recycling system minimizes material loss.
Key components are made of high-strength alloy steel with wear-resistant coating.
Modular design facilitates maintenance and reduces downtime by approximately 50%.
Integrated monitoring and control system ensures uninterrupted production and consistent tube quality.
High-quality components and robust construction reduce mechanical failures, providing long-term stable operation.
Parameters can be customized according to customer requirements.
| Item | Specification |
| Applicable Tube Material | Carbon steel, stainless steel (304/316) |
| Tube Diameter Range | Φ10 mm – Φ50 mm |
| Wall Thickness Range | 0.5 mm – 3.0 mm |
| Production Speed | 10 – 60 m/min (adjustable) |
| Welding Method | High-frequency induction welding (TIG optional) |
| Control System | PLC + HMI human–machine interface |
| Power Supply | 380V/50Hz (optional 440V/60Hz) |
| Total Power | Approx. 150 kW |
| Equipment Dimensions (L×W×H) | 45 m × 5 m × 3 m |

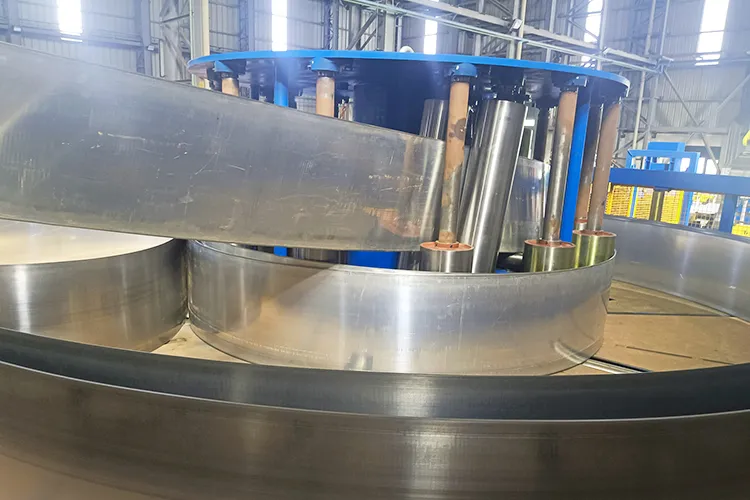

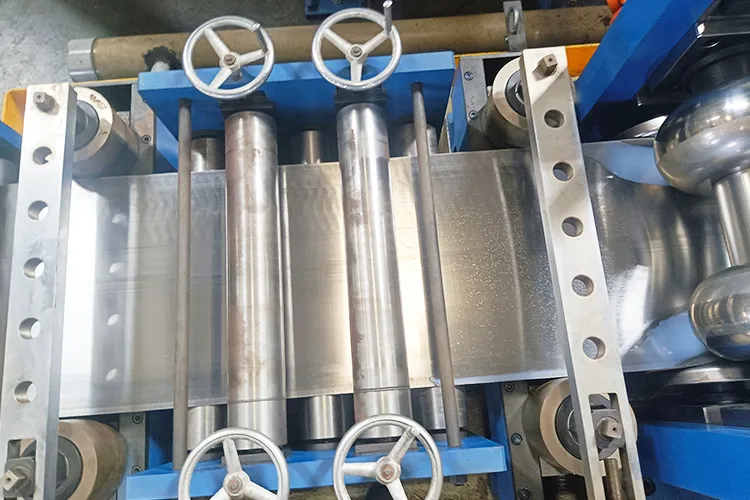

Steel Strip / Coil
Material: SPCC, SPHC, 304 stainless steel, 316L stainless steel, etc.
Thickness Tolerance: ±0.03 mm
Width Tolerance: ±0.1 mm
Surface Quality: Free from oxide scale, oil stains, and scratches
Lubricant
High-viscosity cold rolling oil to ensure smooth forming process
Reach out today to see how Aogang can support your tube mill needs
