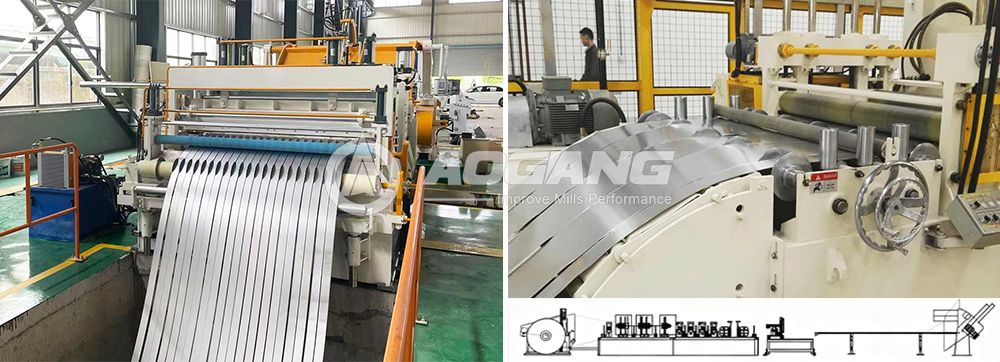

High Speed vs Conventional Slitting Lines Key Differences and Advantages

The difference between high-speed slitting lines and conventional slitting lines (often referred to as medium- to low-speed slitting lines) lies primarily in their design philosophy, technical configuration, and production objectives. In essence, high-speed lines can be considered a comprehensive upgrade and optimization of conventional lines.

While both high-speed and conventional slitting lines follow the same basic operating principle—uncoiling → leveling → slitting → recoiling—their fundamental difference is not in what they do, but how they do it. In other words, the methods and technologies used to carry out this process result in significant differences in precision, stability, efficiency, and product quality.

Detailed Comparison of Step-by-Step Operating Principles of High-Speed and Conventional Slitting Lines

Step 1: Uncoiling and Material Feeding

Conventional Line: The coil is passively unwound by a motor or hydraulic system, relying on simple brake pads or pneumatic devices to create initial tension. Tension fluctuates significantly, and coil tracking often depends on manual intervention.

High-Speed Line: The decoiler is driven by a servo motor, actively feeding the material according to instructions from the main control system. It generates constant, programmable tension in coordination with downstream units. An automatic centering system aligns the coil centerline with the production line during uncoiling.

Step 2: Leveling and Guiding

Conventional Line: A basic set of leveling rolls is used to flatten the material and relieve most internal stresses.

High-Speed Line: A multi-roll precision leveling machine removes internal stress more thoroughly. An entry guiding and correction device, equipped with hydraulic or electric actuators, performs millisecond-level adjustments, ensuring the strip enters the slitting knives perfectly straight.

Step 3: Core Process – Slitting

Principle (Both Lines): The upper and lower shafts rotate in opposition, and the circular knife edges make contact to continuously slit the material. The upper knife (rotary knife) and lower knife (stationary knife) maintain a minimal overlap (penetration) and lateral clearance.

Conventional Line: Shafts have lower rigidity and tend to vibrate at high speed. Knife clearance and penetration often require manual adjustment based on operator experience. The material may be “pulled” during cutting, resulting in burrs and edge deformation.

High-Speed Line: Uses heavy-duty, high-rigidity shafts dynamically balanced for vibration-free high-speed operation. Equipped with precision bushings and knife adjustment systems, it allows fast and accurate knife gap settings. Crucially, shaft rotation is perfectly synchronized with material speed, achieving “pure shear” cutting for smooth edges with minimal burrs.

Step 4: Strip Separation and Guiding

Conventional Line: Slit strips are roughly separated using simple dividers or guides, leading to possible friction and surface scratches.

High-Speed Line: Employs precision lead-screw or guide-rail separation systems. Each strip has its own smooth guiding path, ensuring complete separation without scratches.

Step 5: Recoiling – The Key to Success

Conventional Line: Recoilers are typically driven by a single motor with torque transmitted through a friction clutch. Tension control is crude; as coil diameter increases, tension cannot adjust automatically, leading to tight inner layers, loose outer layers, and common issues like “crown” (uneven winding) or loose coils.

High-Speed Line: The recoiler is a servo-motor-driven unit operating under torque or speed control, maintaining tension in coordination with the decoiler and main line. The system automatically calculates coil diameter changes and applies adjustable tension tapering, ensuring optimal tension for every layer from inner to outer. Outlet guiding devices continuously monitor each strip to ensure neatly wound coils.

In essence, the operation of a conventional slitting line is like a skilled craftsman using manual tools. Relying on experience and feel, the task can be completed, but speed, precision, and consistency are limited.

The operation of a high-speed slitting line is like a highly coordinated robotic orchestra. Each unit (uncoiler, leveling, slitting, recoiler) acts as a sensor-equipped robot directed by a central “brain” (PLC/industrial computer). They communicate and adjust in milliseconds using real-time data (speed, tension, position), ensuring extreme stability and precision even at very high speeds.

The key to high-speed line performance lies in closed-loop feedback and coordinated control, which is the technical foundation for achieving both high efficiency and high product quality.

Core Comparison Table Between High-Speed Slitting Lines and Conventional Slitting Lines

How to Choose the Right Slitting Line?

1.Based on production volume and order patterns:

If order quantities are small, specifications change frequently, and flexibility is the priority, a conventional slitting line is often more economical.

If you handle stable, large-volume orders (such as supplying the home appliance or automotive industry), a high-speed line can significantly enhance competitiveness.

2. Based on material type and quality requirements:

For general materials with no strict burr or edge-quality requirements, a conventional line is sufficient.

For thin materials, high-strength steel, high-surface-quality materials, or when customers have strict requirements on burrs or coil shape, a high-speed line is essential.

3. Based on return on investment:

Evaluate whether the efficiency gains, reduced scrap rate, and labor savings provided by a high-speed line can offset its higher equipment and maintenance costs.

For large-scale production enterprises, high-speed lines typically offer better long-term returns.

A high-speed slitting line is not just a “faster version” of a conventional line—it is a fully optimized, precision-engineered system designed for continuous, stable, high-quality, high-volume production. Its core value lies in achieving lower long-term production cost per ton and superior product quality through a higher initial investment. It represents an important step toward automation, intelligence, and high efficiency in the metal processing industry.

Aogang Slitting Line Advantages

1.High Speed and High Efficiency for Increased Productivity

Aogang slitting lines are equipped with advanced servo-driven systems that enable stable high-speed operation and significantly improve production efficiency.
The line speed can be flexibly adjusted based on material type and strip specifications, supporting continuous large-volume production and effectively reducing unit manufacturing costs.

2. Precision Slitting with Consistent Quality

The system uses high-rigidity knife shafts and high-precision circular blades to achieve accurate slitting with minimal burrs (as low as ≤0.02 mm).
A multi-stage automatic edge-guiding system ensures that the strip remains centered throughout the entire process, resulting in smooth edges and neatly wound coils.

3. Intelligent Control and Easy Operation

A fully automated control platform coordinates uncoiling, leveling, slitting, and recoiling through closed-loop feedback.
The system continuously monitors tension and line speed in real time to ensure stable operation and consistent output.

4. Flexible Application with Multi-Material Capability

Aogang slitting lines can process a wide range of materials, including carbon steel, galvanized steel, thin-gauge materials, high-strength steel, and precision alloys.
They support various strip widths and thicknesses to meet diverse production requirements across different industries.

5. Full Engineering Service and Technical Support

Aogang provides complete engineering services, including layout planning, installation and commissioning, operator training, and long-term maintenance support.
All equipment comes with a 12-month warranty and lifetime technical support to ensure stable and reliable performance.

6. High Return on Investment with Controlled Production Costs

Although the initial investment is higher, the combination of high speed, high accuracy, and automation significantly reduces scrap rates and labor costs.
This ensures the lowest long-term cost per ton and maximizes the overall return on investment.

Customized Solutions for All Slitting Line Requirements

Whether for a conventional slitting line or a high-speed slitting line, Aogang offers professional engineering and fully customized solutions tailored to each customer’s production needs.

Designed for high-volume, precision, and intelligent manufacturing—Aogang provides an integrated solution that enhances production capacity, cutting quality, and operational efficiency.
