A high frequency welded pipe production line converts steel strip into welded steel pipes through a series of coordinated manufacturing processes. For pipe manufacturers, planning a production line involves more than selecting individual machines. Product specifications, material characteristics, production targets, workshop conditions, and downstream handling requirements all influence the overall solution.
Understanding how the production stages work together helps manufacturers evaluate equipment requirements and prepare for a new pipe production project.
High frequency welded pipe production generally uses steel strip as the raw material. The strip is progressively formed into a tubular shape, and its edges are joined through high frequency welding. The welded tube then passes through subsequent processing stages to achieve the required dimensions and length.
The overall production process depends on the pipe specifications and the intended application. Different requirements for pipe diameter, wall thickness, material grade, and finished product shape may call for different machine configurations and tooling arrangements.
Before selecting a production line, manufacturers should define their target products and expected production requirements.

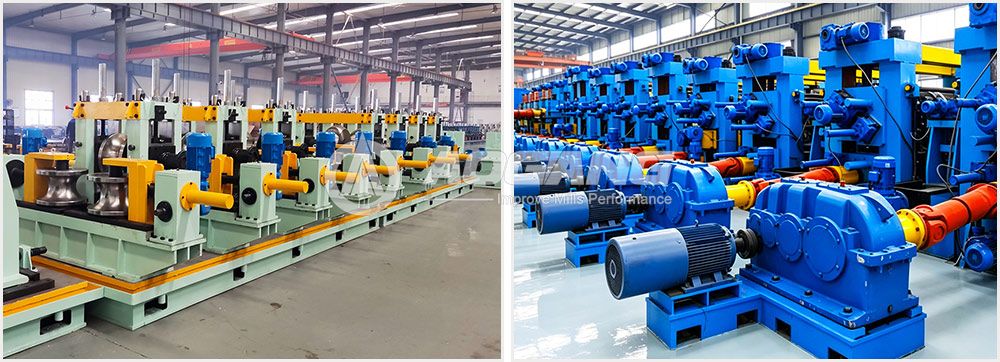

A high frequency welded pipe production line operates as an integrated manufacturing system. Each stage must work in coordination with the stages before and after it.
Production begins with steel coils being loaded and fed into the line. Coil handling, strip alignment, and preparation affect the stability of the material entering the forming section.
For continuous production, a shear and butt welding unit can connect the end of one steel strip to the beginning of the next. An accumulator stores strip material and helps maintain feeding continuity during coil changes, depending on the line configuration.

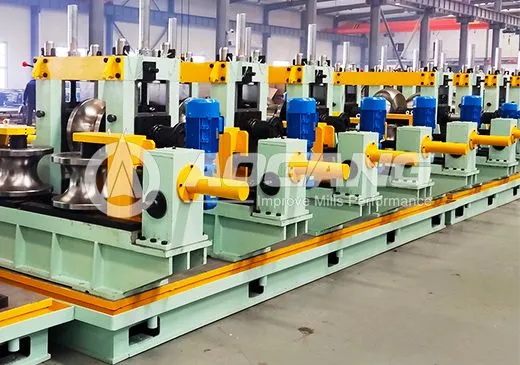

In the forming section, successive rolls gradually shape the flat steel strip into a tubular profile. The strip edges are brought together and heated by the high frequency welding system before pressure is applied to form the longitudinal weld.
Stable forming and consistent edge alignment are important for the welding process. Material properties, pipe dimensions, line speed, and welding settings all influence operating conditions.
The forming and welding sections therefore need to be considered together rather than selected as independent processes.
After welding and the required cooling process, the tube passes through sizing and straightening sections to achieve the specified dimensions and shape.
A cutting system then separates the continuously produced tube into the required lengths. The finished pipes are transferred to a run-out table or handling system for collection and subsequent inspection.
The cutting cycle and downstream handling capacity should be compatible with the upstream production speed. Otherwise, interruptions in pipe collection may affect the operation of the complete line.
The right production line depends on the products a factory intends to manufacture. Several factors should be confirmed before the equipment configuration is finalized.
Manufacturers should prepare a list of target pipe diameters, wall thicknesses, and finished lengths. If square or rectangular tubes are required, these dimensions should also be specified.
A machine's maximum diameter and maximum wall thickness do not necessarily apply to the same pipe specification. The supplier should therefore evaluate the actual product range when recommending a suitable configuration.
The steel grade, material properties, and strip dimensions influence forming and welding conditions. Manufacturers should provide the intended material specifications rather than relying only on general descriptions such as carbon steel.
Expected output should also be discussed alongside the product range. Actual production depends on pipe dimensions, material, line speed, cutting requirements, changeover frequency, and operating conditions.
Factories producing multiple pipe sizes need to consider how frequently the line will change between products. Roll tooling, adjustment procedures, and the time required for size changes can affect overall production efficiency.
The tooling plan should reflect the factory's regular product mix and anticipated future requirements. This helps manufacturers evaluate the balance between production flexibility, tooling investment, and changeover workload.
Workshop conditions should be reviewed before the production line layout is finalized. The available building length and width, crane capacity, coil loading area, electrical supply, cooling water, compressed air, and maintenance access may all affect the installation plan.
Material flow is another important consideration. Steel coils need to reach the uncoiler safely, while finished pipes must be collected and moved without obstructing production or maintenance activities.
For a new factory, layout planning should be coordinated with the production line configuration. For an existing workshop, the proposed arrangement should be checked against actual site dimensions and available facilities.
Several issues can create difficulties when a production line is planned without sufficient attention to the complete manufacturing process.
Selecting a line based only on maximum speed: The quoted maximum speed does not necessarily represent the output achievable for every pipe size and wall thickness. Production targets should be reviewed against the intended product specifications.
Overlooking size-change requirements: A factory with a broad product range may need a different tooling and changeover strategy from one producing a limited number of standard sizes.
Underestimating downstream handling: Cutting, pipe collection, inspection, and material movement should be considered alongside the main forming and welding process.
Confirming equipment before reviewing the workshop: Building dimensions, coil handling, utilities, and maintenance access should be checked before the final layout is approved.
Addressing these factors during the planning stage helps manufacturers develop a more practical production arrangement.
Target pipe diameter and wall thickness ranges
Required steel material grades and strip specifications
Pipe shape and finished length requirements
Expected production output and operating schedule
Product changeover frequency
Existing workshop dimensions or preliminary layout drawing
Requirements for auxiliary machines, pipe handling, and automation
Installation, commissioning, and operator training requirements
If some specifications have not yet been finalized, buyers can provide the expected product range and intended application for an initial technical discussion.
Clear project information helps the manufacturer assess the production requirements and recommend an appropriate equipment configuration.
Planning a high frequency welded pipe production line requires coordination between forming, welding, sizing, cutting, and material handling. The final configuration should reflect the manufacturer's product range, production targets, workshop conditions, and future operating needs.
Aogang Machinery provides customized pipe mill solutions for different steel pipe production requirements. Buyers can explore our Pipe Mill production line to learn more about available solutions and discuss the requirements of a specific project.
Preparing the pipe specifications, production targets, and workshop information in advance can help make the equipment selection and quotation process more efficient.
