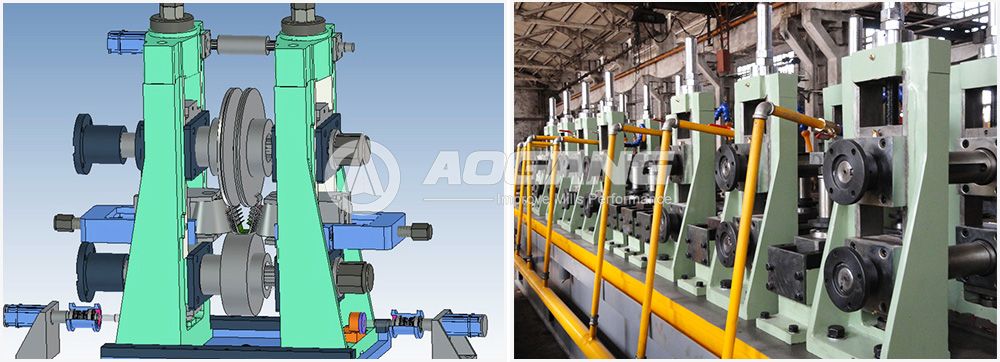

ERW Tube Mill Tooling Guide: Rolls, Dies and Forming Components

In an ERW tube mill production line, tooling plays a critical role in determining pipe quality, production stability, and overall manufacturing efficiency. The forming rolls, dies, and other tooling components directly affect pipe dimensions, surface quality, welding performance, and production speed.

For steel pipe manufacturers, selecting the right tooling system is essential to achieving consistent production results and reducing material waste.

What Is ERW Tube Mill Tooling?

ERW tube mill tooling refers to the forming and sizing components used during the steel pipe manufacturing process. These tooling components are an essential part of complete ERW tube mill production lines, helping manufacturers achieve stable operation, accurate pipe forming, and efficient production.

A complete ERW tube mill tooling system typically includes:

· Forming rolls

· Fin pass rolls

· Welding section rolls

· Sizing rolls

· Guide rolls

· Straightening and calibration components

Each component is designed according to pipe diameter, wall thickness, material grade, and production requirements.

Main Components of ERW Tube Mill Tooling

Forming Rolls

Forming rolls are the first key components in the tube forming process. They gradually bend the steel strip into an open tubular shape before high-frequency welding.

High-quality forming rolls help ensure:

· Accurate pipe forming

· Stable strip movement

· Reduced edge deformation

· Improved welding conditions

The design and machining accuracy of forming rolls directly influence the final pipe quality.

2. Fin Pass Rolls

Fin pass rolls control the pipe edges before the welding process. Proper roll design helps maintain accurate edge alignment and provides stable conditions for high-frequency welding.

Incorrect adjustment of fin pass rolls may cause:

· Uneven welding gaps

· Poor weld quality

· Pipe deformation

Therefore, precise tooling design is important for reliable ERW pipe production.

3. Sizing Rolls

After welding, sizing rolls are used to achieve accurate pipe dimensions and improve shape consistency.

Sizing rolls help control:

· Outside diameter accuracy

· Roundness

· Surface quality

· Final pipe shape

For manufacturers producing different pipe specifications, properly designed sizing tooling improves production flexibility.

How Tube Mill Tooling Affects Pipe Quality

The performance of an ERW tube mill depends not only on the main machine structure but also on tooling accuracy.

High-quality tooling can help manufacturers achieve:

Better Dimensional Accuracy

Precise roll design ensures stable forming and sizing processes, helping pipes meet required diameter and tolerance standards.

Improved Surface Quality

Proper tooling reduces scratches, deformation, and surface defects during production.

More Stable Welding Performance

Consistent forming conditions provide better edge alignment for high-frequency welding, improving weld reliability.

Reduced Production Waste

Optimized tooling reduces adjustment time, material waste, and production downtime.

Factors to Consider When Selecting ERW Tube Mill Tooling

When choosing tooling for an ERW tube mill, manufacturers should consider several important factors:

Pipe Size Range

Tooling design should match the required pipe diameter range and production specifications.

Material Type

Different materials, such as carbon steel, galvanized steel, and high-strength steel, may require different tooling designs.

Production Speed

High-speed tube mills require tooling with excellent machining accuracy and wear resistance.

Product Application

Tooling requirements may vary depending on whether pipes are used for construction, automotive, structural applications, or other industries.

Tooling Maintenance for Long-Term Tube Mill Performance

Regular inspection and maintenance of tooling components can extend service life and maintain production quality.

Common maintenance practices include:

· Checking roll surface condition

· Inspecting wear levels

· Adjusting roll alignment

· Replacing damaged components

· Keeping tooling records for different pipe sizes

Proper tooling management helps tube mill operators maintain stable production and reduce unexpected downtime.

Aogang ERW Tube Mill Solutions

With extensive experience in welded pipe production equipment, Aogang provides ERW tube mill solutions designed for stable operation, accurate forming, and efficient production.

From tube mill design and manufacturing to installation and commissioning, Aogang supports customers with complete production line solutions for round, square, and rectangular steel pipe manufacturing.

A properly designed tooling system is an important part of achieving high-quality ERW pipe production. By optimizing rolls, dies, and forming components, manufacturers can improve efficiency, reduce waste, and achieve long-term production reliability.
