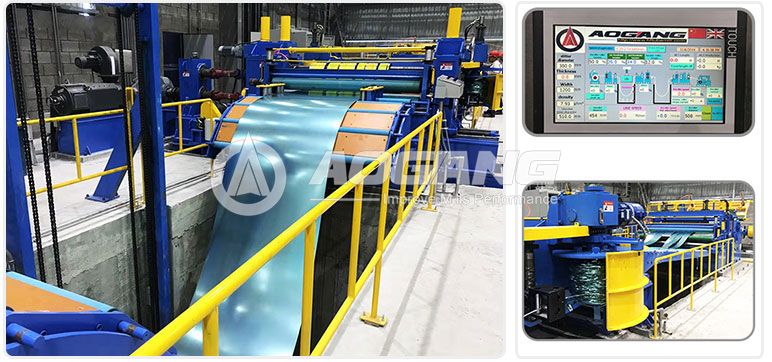

How to Choose a Slitting Line for Different Coil Thicknesses

Choosing a slitting line starts with understanding the steel coil you need to process. Among the key parameters, coil thickness has a direct influence on the cutting load, machine rigidity, tooling configuration, tension control, and overall production performance.

A line designed for thin-gauge steel may not be suitable for thicker coils. Therefore, buyers should consider the complete material range rather than selecting a machine based only on the most common coil thickness.

Why Coil Thickness Matters in Slitting Line Selection

As coil thickness increases, the force required for longitudinal cutting also increases. This places greater demands on the slitter head, knife shafts, machine frame, drive system, and recoiling system.

At the same time, very thin materials require stable guiding and tension control to reduce strip deformation and maintain consistent slitting quality.

For this reason, a suitable slitting line should be matched to the actual thickness range of the coils rather than simply choosing a larger machine.

Thin-Gauge Coil Slitting

Thin-gauge materials generally require greater attention to strip stability and tension control.

During processing, excessive tension or improper knife settings can affect strip shape and edge quality. A suitable configuration should therefore provide stable material guiding, accurate slitting, and controlled recoiling.

Thin materials are also commonly processed at higher line speeds, making stable strip handling an important consideration.

Medium-Gauge Coil Slitting

Medium-gauge steel provides a balance between cutting force and production speed.

For these applications, buyers should consider not only the material thickness but also the coil width, material strength, required strip width, and production volume.

The slitter head and tension system should be selected according to the complete working range. This helps maintain stable cutting performance when processing different coil specifications.

Heavy-Gauge Coil Slitting

Thicker steel coils require higher cutting forces and stronger mechanical components.

The slitting section needs sufficient rigidity to handle the increased load, while the drive and recoiling systems must be capable of handling the corresponding material weight and tension requirements.

For heavy-gauge applications, it is particularly important to provide the manufacturer with the maximum coil thickness, width, weight, and material grade before requesting a quotation.

Thickness Is Not the Only Selection Factor

Although thickness is important, it should not be considered independently. A slitting line should be designed according to the complete processing range.

Key information normally includes:

Material type and grade

Minimum and maximum coil thickness

Minimum and maximum coil width

Maximum coil weight

Coil outside and inside diameter

Required finished strip

Number of strips

Requied production speed

Slitting accuracy requiremen

For example, a line processing 0.5–3 mm carbon steel coils may have different requirements from a line processing 3–10 mm high-strength steel, even when their maximum widths are similar.

Consider Your Future Production Requirements

It is also useful to consider whether the material range may change in the future.

If a factory currently processes thin coils but plans to add thicker materials, this should be discussed during the initial machine design. Similarly, if the required strip widths or coil weights may increase, these requirements should be considered before selecting the final configuration.

The goal is not to choose the largest slitting line available, but to select a configuration that matches the actual production range while leaving reasonable room for future requirements.

Choose a Slitting Line Based on Your Complete Coil Range

There is no single slitting line configuration suitable for every coil thickness. Material thickness should be evaluated together with coil width, material grade, coil weight, strip width, production speed, and required slitting quality.

Before requesting a quotation, preparing these parameters can help the manufacturer recommend a more suitable configuration and avoid unnecessary oversizing or insufficient capacity.

For more information about Aogang's Coil Slitting Line Solutions, please visit our product page or contact our team with your coil specifications.
