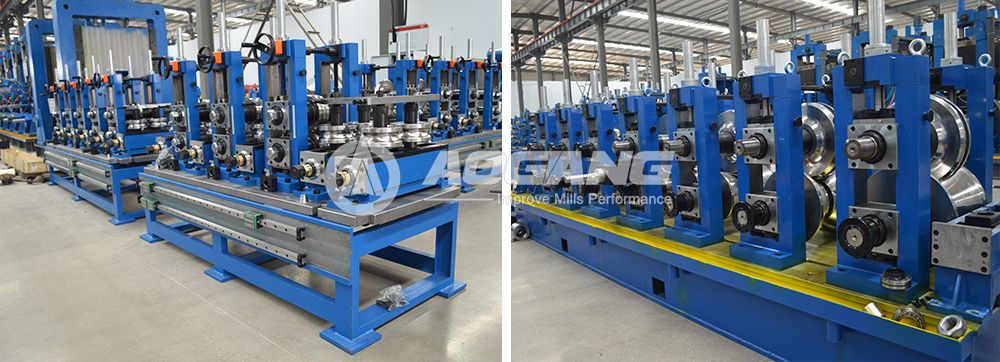

Carbon Steel Tube Mill for Efficient Welded Pipe Production

A carbon steel tube mill is a complete production line that processes carbon steel strips into welded steel pipes through continuous forming and high-frequency welding. It is currently a mainstream equipment in the welded pipe manufacturing industry.

With the continuous development of industries such as construction, energy, mechanical manufacturing, and automotive, the market demand for carbon steel pipes is steadily increasing. As a core equipment in steel pipe production, the Carbon Steel Tube Mill plays a key role in achieving high efficiency, stability, and precision in manufacturing. This article provides a brief overview of the carbon steel tube mill from three aspects: its working principle, application scope, and key advantages.

Working Principle of the Carbon Steel Tube Mill

The Carbon Steel Tube Mill is a complete production line that continuously processes carbon steel strips into steel pipes. Its main production process includes the following stages:

Uncoiling and Feeding

Carbon steel coils are uncoiled and fed into the production line at a stable speed.

Forming Section
The strip gradually bends through multiple forming stands to form an open tube blank, preparing it for subsequent welding.

High-Frequency Welding
The edges of the tube blank are heated using high-frequency induction welding, and the longitudinal seam is securely welded under the pressure of forming rollers.

Sizing and Straightening
The welded steel pipe passes through sizing and straightening units, ensuring precise outer diameter and stable pipe shape.

Cutting to Length and Discharge
Finished pipes are cut to the specified length and conveyed to the finished goods area for inspection or further processing.

The entire production line operates in a continuous and automated manner, ensuring stable and consistent product quality.

Application Scope

Carbon steel pipes produced by the tube mill are widely used across multiple industries due to their excellent mechanical properties and cost-effectiveness:

Construction and Infrastructure: scaffolding, structural pipes, guardrails, steel structural supports

Oil and Gas: medium- and low-pressure pipelines and structural pipes

Mechanical Manufacturing: equipment structural components, machine supports, load-bearing parts

Automotive Industry: chassis tubes, exhaust system pipes

Furniture and Storage Equipment: steel furniture frames, racks, and industrial equipment pipes

Advantages and Features

Compared with traditional pipe-making methods, the carbon steel tube mill offers several significant advantages:

High Production Efficiency
The combination of continuous forming and welding allows high-speed and stable production, significantly improving output.

Stable Product Quality
Precision roller design and controlled welding ensure high seam strength and consistent dimensional accuracy.

High Degree of Automation
Equipped with a PLC control system, parameters are centralized, reducing manual intervention and lowering operating costs.

Wide Specification Adaptability
By changing forming dies and adjusting parameters, pipes of different diameters and wall thicknesses can be produced.

Low Overall Manufacturing Cost
High material utilization, controllable energy consumption and labor costs provide good economic efficiency.

In the context of increasing automation and efficiency in steel pipe manufacturing, the carbon steel tube mill remains a mainstream equipment choice, offering mature processes, broad application scope, and reliable performance.

Common Questions about the Carbon Steel Tube Mill

Q1: What is the maximum diameter and wall thickness this tube mill can produce? What is the production speed?

A1:Production specifications depend on the model and configuration. Conventional carbon steel tube mills can produce pipes with an outer diameter of approximately Φ10–Φ610 mm (or larger) and wall thickness of 0.5–20 mm.

Production speed depends on pipe diameter, wall thickness, and material grade. For standard medium and small pipes, line speeds generally reach 20–130 m/min. We can recommend the most suitable model according to your product range and production targets.

Q2: How strong is the high-frequency welded seam? Can it reach the base material strength? How does it compare to seamless pipes?

A2:Modern high-frequency welding (HFW/ERW) technology is highly mature. By precisely controlling heating temperature and pressure, the welded seam forms a dense forged structure. Under normal conditions, the seam strength of high-quality welded pipes can reach or even exceed that of the base material and can be verified via non-destructive testing such as ultrasonic inspection.

Compared with seamless pipes, welded pipes offer advantages in dimensional accuracy, wall thickness uniformity, and manufacturing cost, making them widely used in structural and medium- to low-pressure fluid transport applications.

Q3: How automated is the production line? Is operation and maintenance complicated? How many operators are needed?

A3:The carbon steel tube mill uses a PLC + touchscreen centralized control system. The interface is intuitive and parameters are easy to set. Normally, the production line requires only 1–3 operators for monitoring. Maintenance mainly involves routine care of forming rollers, welding systems, and cutting devices, which is not difficult after training.

Q4: Can it only produce round pipes? Is it possible to produce square, rectangular, or other shaped pipes?

A4:Standard carbon steel tube mills are mainly for producing round pipes. With additional square/rectangular forming modules, round pipes can be further processed into square or rectangular shapes. For complex shaped pipes, specially designed equipment is required.

Q5: How is the energy consumption? Is it energy-efficient?

A5:Modern carbon steel tube mills focus on energy efficiency and stable operation. With high-efficiency high-frequency welders, servo-driven systems, and optimized transmission structures, energy consumption can be reduced by approximately 10–20% compared to traditional mills under the same production capacity.

Aogang’s Advantages

As a professional manufacturer of carbon steel tube mills and pipe equipment, Aogang Machinery Co., Ltd. has over 20 years of industry experience, specializing in welded pipe lines, ERW mills, forming equipment, and auxiliary systems. Serving over 2,000 customers worldwide, Aogang products are widely used in construction, automotive, energy, and mechanical manufacturing industries.

Strong R&D and Manufacturing Capability

Aogang has its own production base, R&D center, and advanced CNC machining centers, equipped with automated manufacturing lines and precision facilities, offering customized solutions according to customer requirements.

Advanced Technology and Stable Performance

Products adopt PLC control, servo drives, and high-frequency welding technologies to achieve fast, stable production and consistent weld quality, supporting multiple pipe types (round, square/rectangular, and special-shaped pipes) to meet diverse production needs.

Efficient Delivery and Quality Assurance

Strict quality management ensures reliable equipment through processing, assembly, testing, and delivery. Certifications such as CE and SGS provide global customers with confidence in equipment reliability.

Comprehensive Global Support

Aogang has established a worldwide service network, providing full services from design, installation, and commissioning to training and long-term technical support, ensuring smooth production and continuous capacity optimization.

Extensive Industry Application

Aogang’s carbon steel tube mills are highly recognized in the domestic market and exported to Europe, Southeast Asia, the Middle East, and South America, gaining global trust with their stability and cost-effectiveness.

Conclusion

With manufacturing trends moving toward higher efficiency, automation, and quality, carbon steel tube mills continue to occupy a key position in the welded pipe industry. As equipment and control systems continue to advance, these mills are expected to deliver even greater production value across more industry applications.
