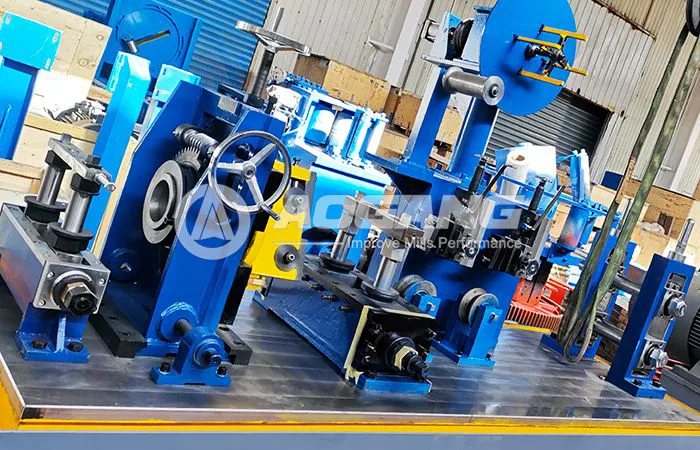

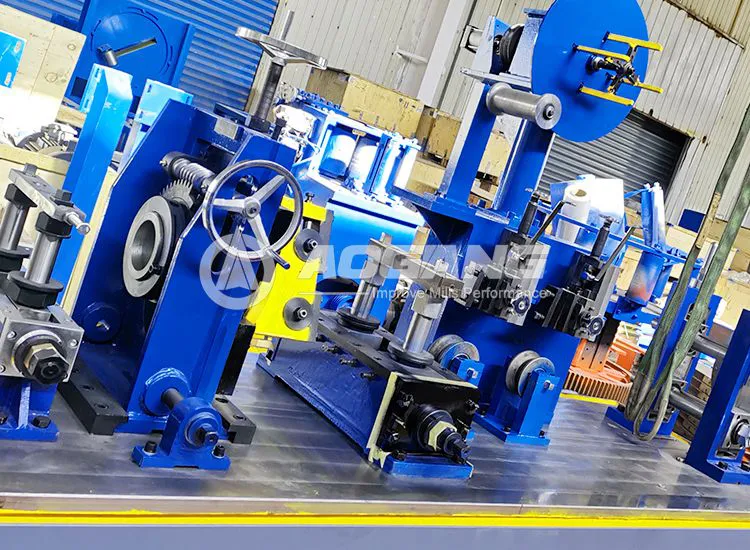

High frequency welding unit on Aogang ERW 76 tube mill machine

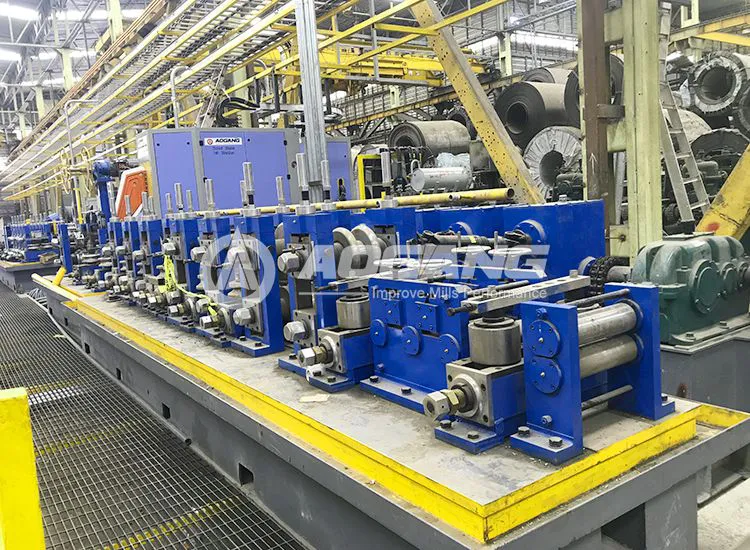

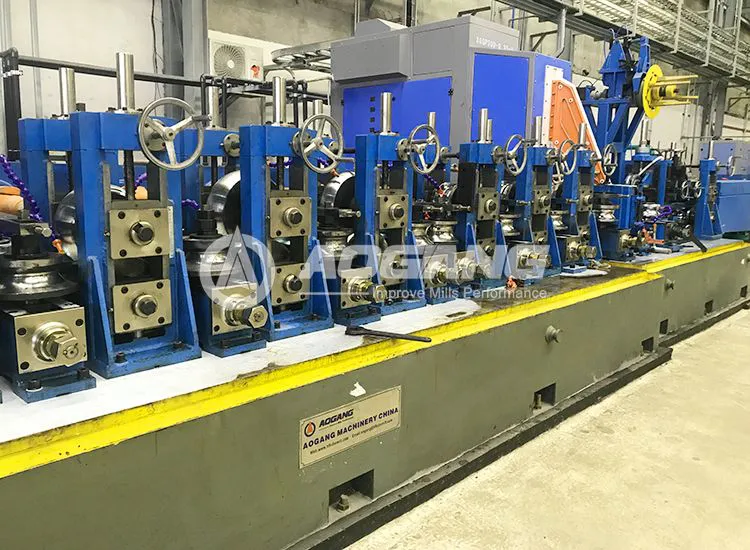

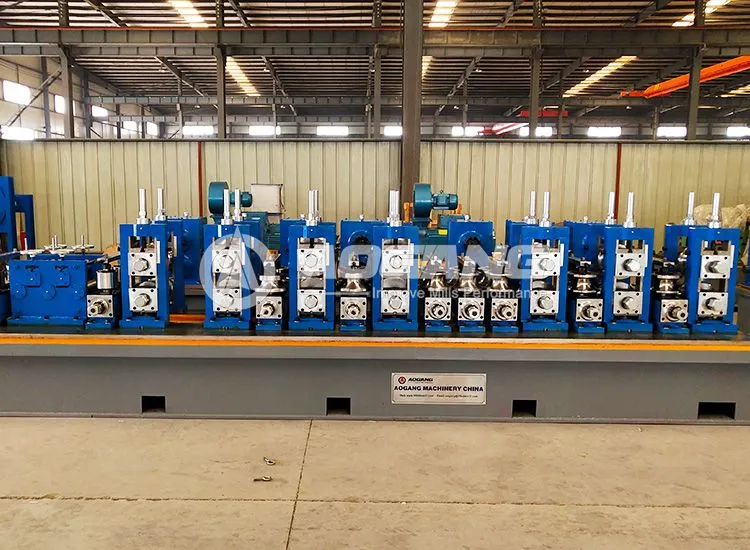

Aogang ERW 76 pipe making machine installation at customer site

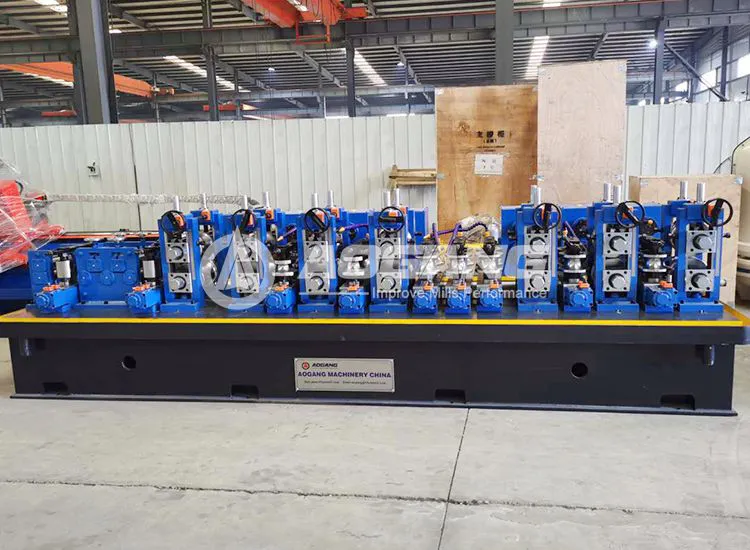

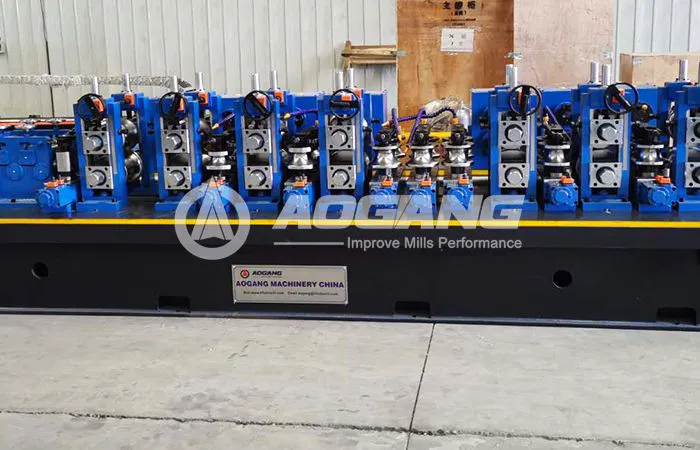

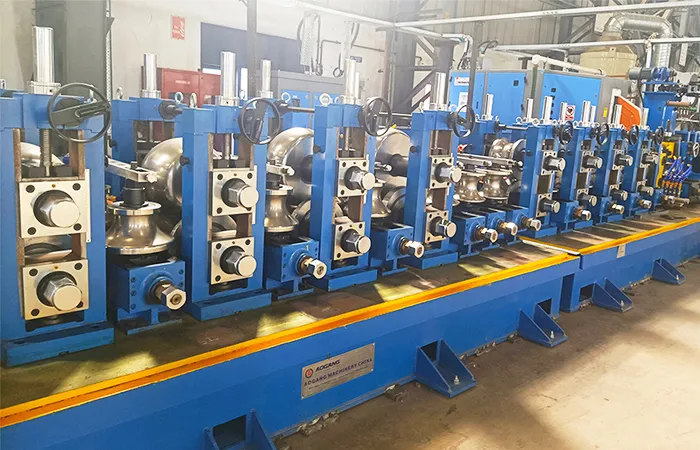

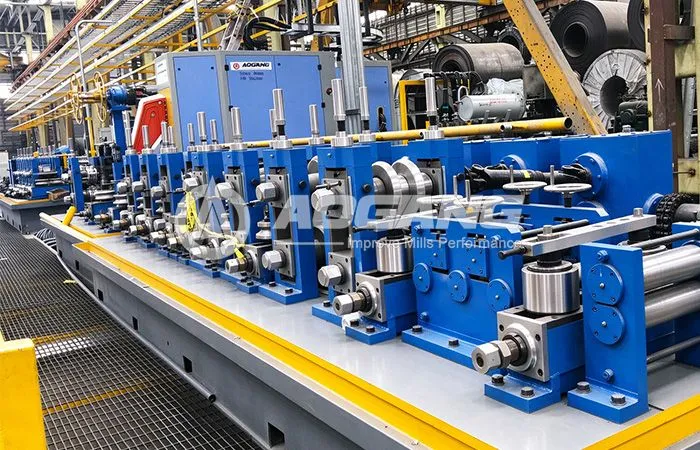

Aogang ERW 76 tube mill production line for 76mm steel pipe manufacturing

ERW 76 Tube mill

The ERW 76 Tube Mill is a high-efficiency pipe making machine designed for the production of round, square, and rectangular steel pipes. Suitable for pipe diameters ranging from 22mm to 76mm and wall thicknesses from 0.9mm to 4.0mm, this machine delivers stable HF welding performance, precise forming accuracy, and reliable continuous operation.

Widely used in the furniture, automotive, construction, and structural tubing industries, the ERW 76 Tube Mill combines advanced forming technology with an automated control system to ensure high production efficiency and consistent product quality. Its modular design allows flexible configuration according to different production requirements.

Inquire Now + Next Product +

Product Description

Aogang ERW 76 Tube Mill is a complete steel pipe production line utilizing advanced Electric Resistance Welding (ERW) technology to manufacture high-quality welded steel pipes and tubes. The production line is designed for stable operation, low maintenance, and long service life, making it an ideal solution for pipe manufacturers seeking efficient and cost-effective production.

The machine supports continuous production speeds of up to 50–80 m/min, depending on pipe specifications and material properties. Motor systems, electrical components, and control systems can be customized according to customer requirements to meet local standards and project needs.

Frequently Asked Questions

Q1: What is the maximum wall thickness the ERW 76 Tube Mill can process?

A: The ERW 76 Tube Mill is designed to process steel pipes with wall thicknesses ranging from 0.9mm to 4.0mm, depending on material grade and production requirements.

Q2: Does Aogang provide installation and training services?

A: Yes. Aogang provides comprehensive technical support, including installation guidance, commissioning assistance, operator training, and after-sales service.

Q3: Can the electrical and motor systems be customized?

A: Yes. Electrical components, motor brands, and control systems can be configured according to customer preferences and local power standards.

Q4: What is the delivery time for an ERW 76 Tube Mill?

A: The typical delivery period is 60–90 days depending on machine configuration, production schedule, and project requirements.

Q5: What raw materials can be used with this machine?

A: The machine is suitable for carbon steel, galvanized steel, low-alloy steel, and other commonly used strip materials for welded pipe production.

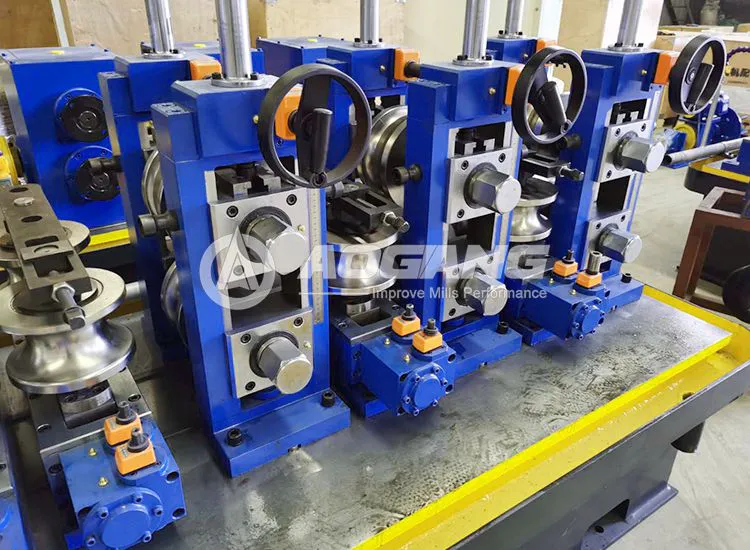

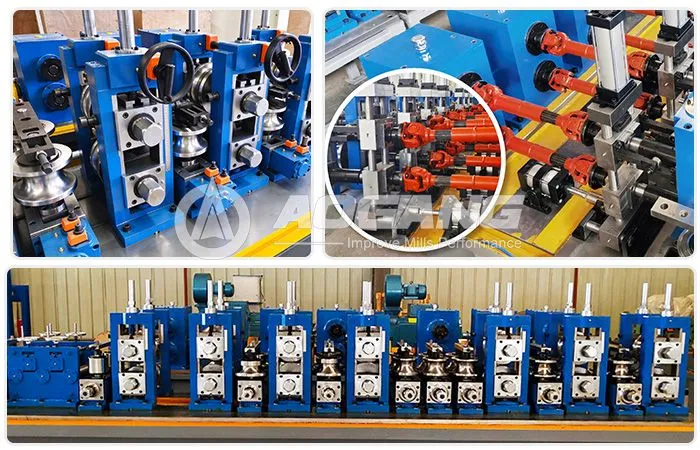

recision forming and sizing section of Aogang ERW 76 pipe mill

Product Advantages

High Efficiency Production

With a line speed of 50-80 m/min, it significantly boosts productivity and shortens delivery cycles.

Intelligent Automation

Fully automated process control minimizes manual intervention, reducing operational costs.

Superior Stability

The reinforced frame design ensures low vibration even at high speeds, guaranteeing dimensional accuracy of pipes.

High-Quality Yield

Advanced welding technology keeps defect rates at industry-leading lows, minimizing material waste.

Flexible Configuration

Supports optional high-end motors from Siemens, Yaskawa, and other brands to accommodate diverse production needs.

Strong Forming Capability

Optimized forming structure ensures stable shaping on larger pipe sizes and maintains reliable wall thickness consistency.

ERW76 Steel Tube Mill Technical Parameter

Customized as per customer requirements

Finished product	Round Pipe	Φ22mm-φ76mm Thickness: 0.9mm-4.0mm
	Square & rectangle tube	19mm×19mm-60mm×60mm Thickness: 0.9mm-3.0mm
	Length	5m-12m
	Length Tolerance	±1.5mm
	Production Speed	50-80 m/min
Raw Material	Coil material	● HR/CR carbon steel or galvanized steel ● High-Strength Low -Alloy- Steel(HSLA) ● Advanced High-Strength Steels (AHSS)
	Width	70mm-240mm Thickness: 0.9mm-4.0mm
	Coil ID	φ480-φ520mm
	Coil OD	Φ800～φ1800mm
	Coil Weight	2.5-3.0Tons
