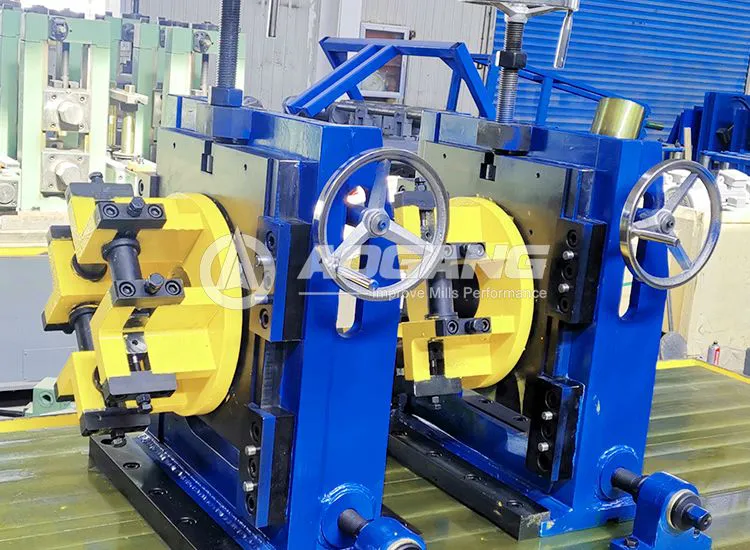

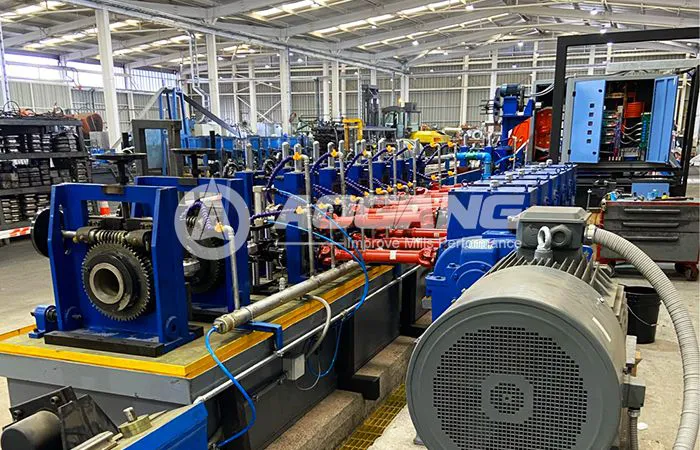

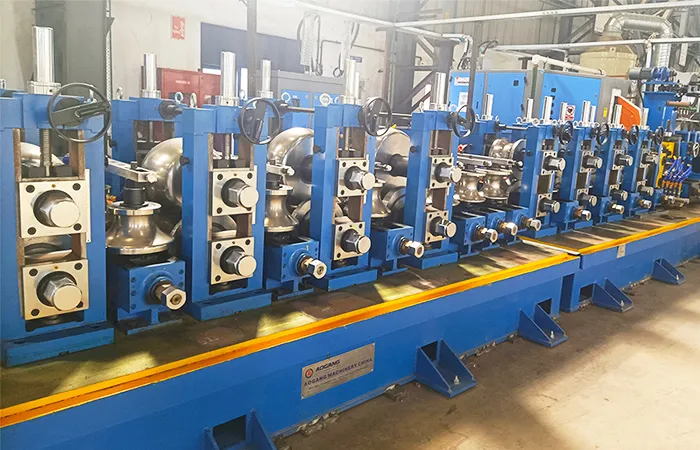

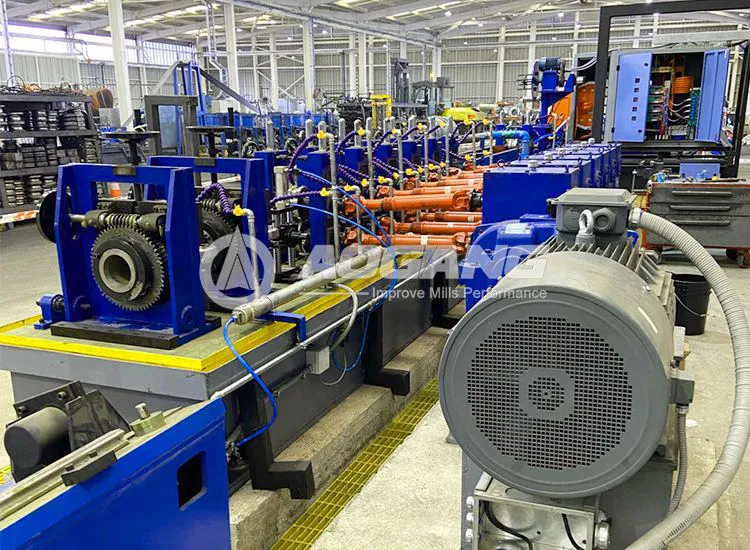

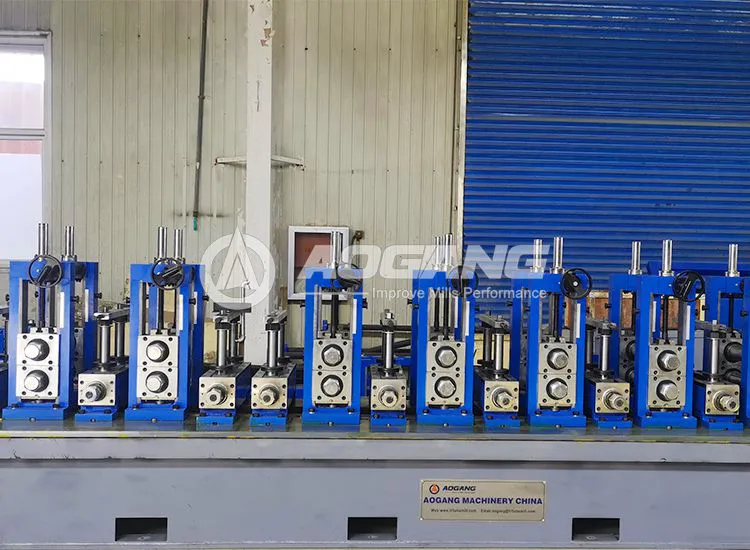

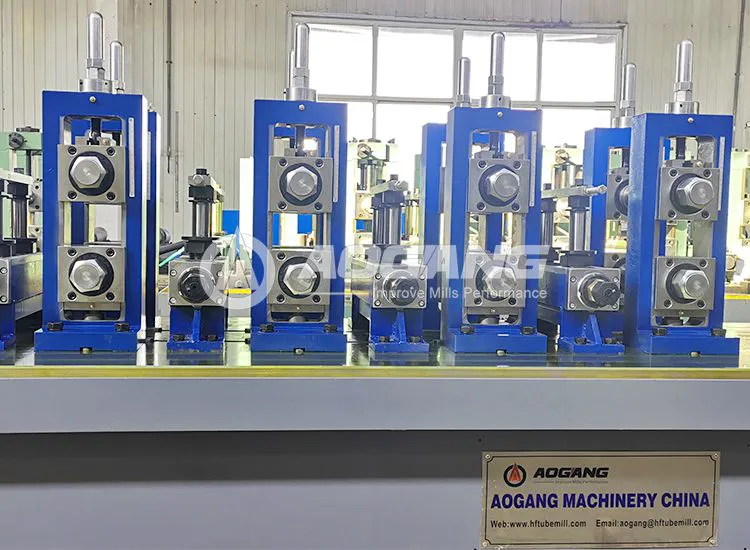

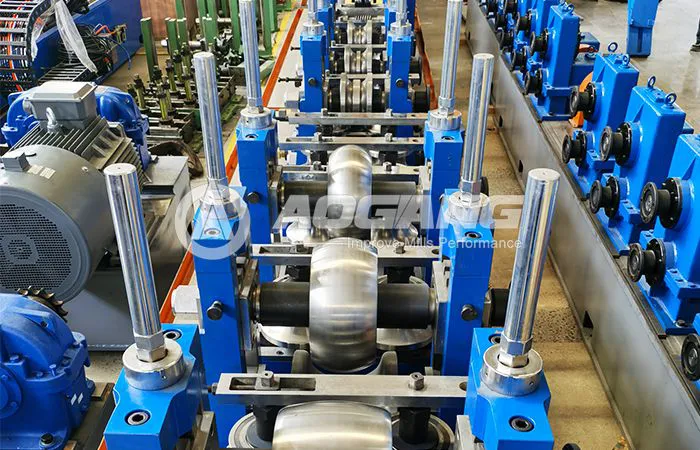

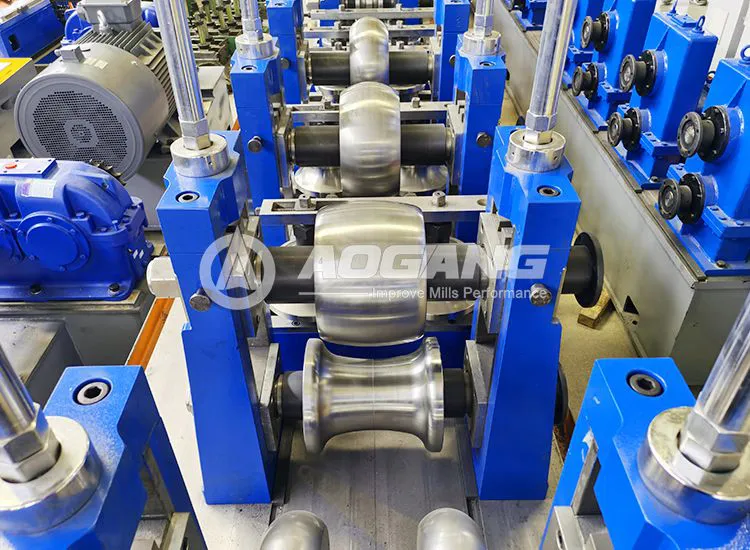

ERW 50 Tube Mill

The ERW 50 Tube Mill is a highly efficient and automated welding pipe equipment, specifically designed for producing round, square, and rectangular pipes with an outer diameter of 16mm-50mm and a wall thickness of 0.7mm-3.0mm. It is widely used in construction, automotive, furniture, agricultural sectors, and other fields, featuring high stability and low defect rates. Customized motor configurations are also supported.

Inquire Now + Next Product +

Product Description

The ERW50 Tube Mill is a high-performance welded pipe production line that utilizes advanced ERW (Electric Resistance Welding) technology to efficiently manufacture steel pipes and profiled tubes of various specifications. As part of Aogang’s ERW Tube Mill solutions, it features a modular design to meet diverse industrial needs, such as pipeline engineering, machinery manufacturing, and chemical equipment.

The equipment supports high-speed continuous production (up to 120 meters per minute) and can be optionally equipped with internationally renowned motors from brands like Siemens and Yaskawa, ensuring precise and reliable power delivery. With an automated control system and a high-strength structural design, it achieves stable operation and high-quality output, meeting stringent industry standards.

Product Advantages

High Efficiency Production

With a line speed of 120 meters per minute, it significantly boosts productivity and shortens delivery cycles.

Intelligent Automation

Fully automated process control minimizes manual intervention, reducing operational costs.

Superior Stability

The reinforced frame design ensures low vibration even at high speeds, guaranteeing dimensional accuracy of pipes.

High-Quality Yield

Advanced welding technology keeps defect rates at industry-leading lows, minimizing material waste.

Flexible Configuration

Supports optional high-end motors from Siemens, Yaskawa, and other brands to accommodate diverse production needs.

Quick Size Changeover

Optimized forming structure enables fast pipe size adjustments, reducing downtime and increasing overall production efficiency.

ERW 50 Tube Mill Technical Parameter

Customized as per customer requirements

Finished product	Round Pipe	Φ16mm-φ50mm Thickness: 0.7mm-3.0mm
	Square & rectangle tube	15mm×15mm-40mm×40mm Thickness: 0.7mm-2.5mm
	Length	5m-12m
	Length Tolerance	±1.5mm
	Production Speed	20-120 m/min
Raw Material	Coil material	● HR/CR carbon steel or galvanized steel ● High-Strength Low -Alloy- Steel(HSLA) ● Advanced High-Strength Steels (AHSS)
	Width	50mm-160mm Thickness: 0.7mm-3.0mm
	Coil ID	φ480-φ520mm
	Coil OD	φ1000-φ1500mm
	Coil Weight	2.5Tons
