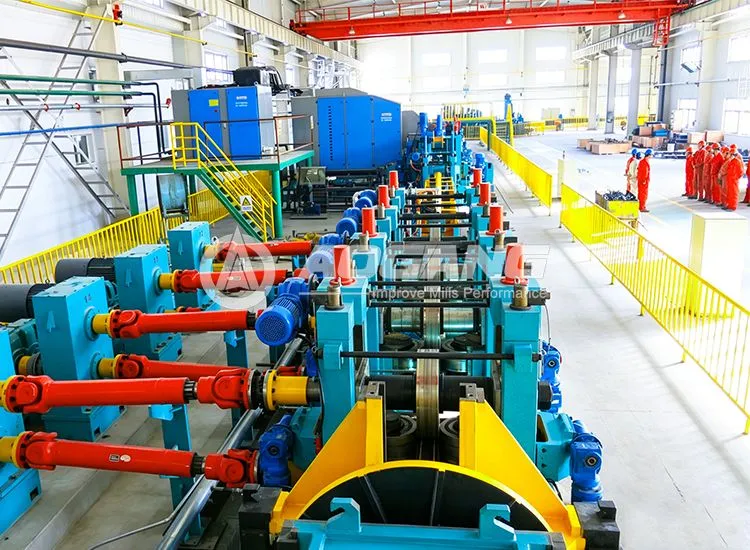

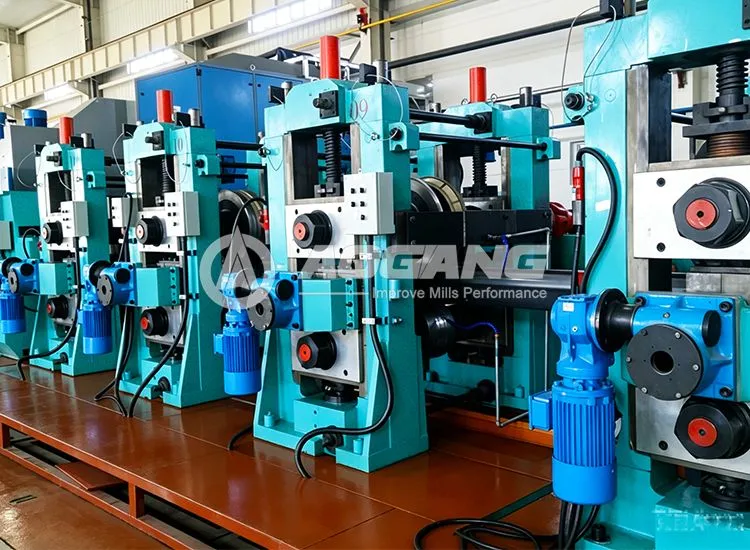

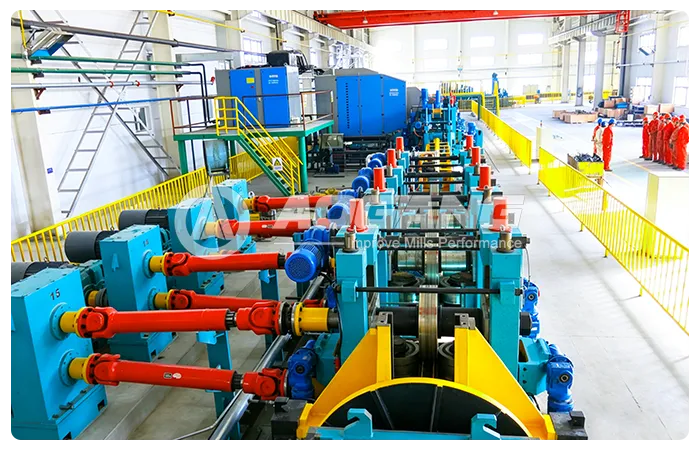

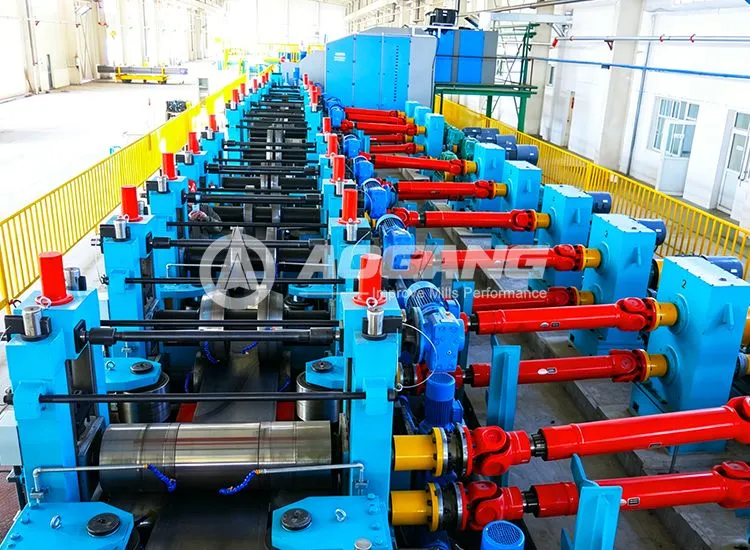

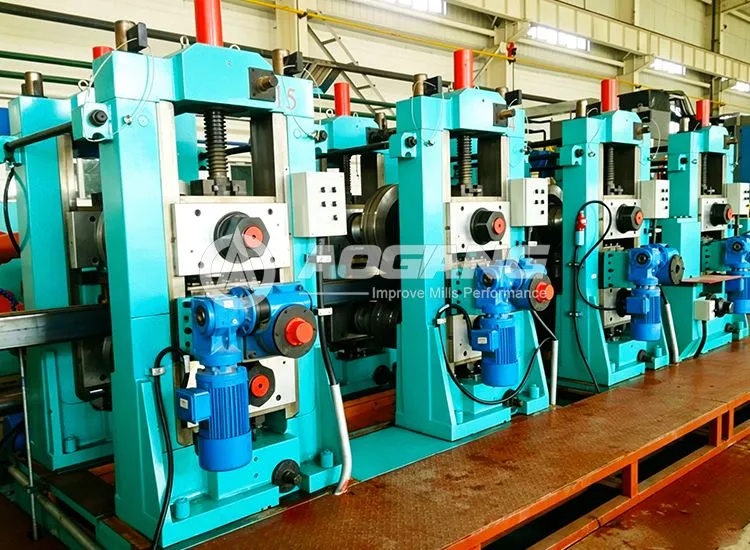

The ERW 325 Tube Mill is a large diameter ERW Tube Mill designed to produce round steel pipes with an outer diameter of 165mm–325mm and wall thicknesses of 3.0mm–14.0mm. It can also manufacture corresponding square and rectangular pipes, providing a reliable solution for large diameter welded steel pipe production.

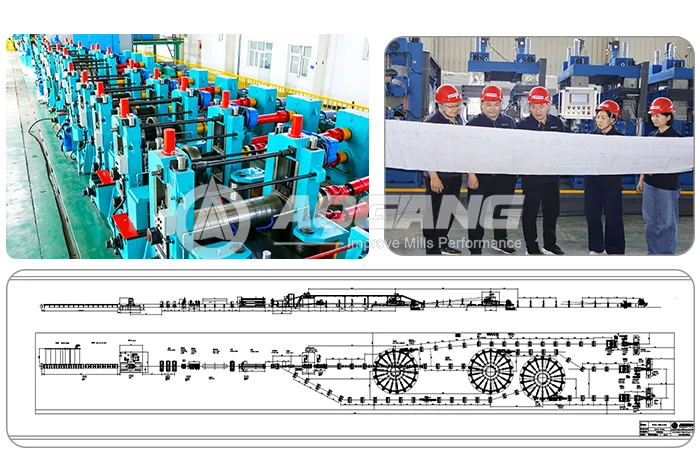

The production line integrates uncoiling, forming, high-frequency welding, sizing, and cutting processes into a complete continuous production system. With an optimized line layout and stable operation performance, it is suitable for efficient manufacturing of large-size and thick-wall steel pipes.
The ERW 325 Tube Mill adopts advanced high-frequency welding technology to ensure stable seam quality and consistent pipe output. The optimized forming structure and automated control system help maintain precise production parameters throughout the manufacturing process.
The line supports the production of round, square, and rectangular steel tubes for various applications, including construction, structural engineering, automotive components, mechanical manufacturing, oil and gas transportation, furniture, agriculture, and chemical industries.
The control system can be customized with electrical components and motor solutions from brands such as Siemens, Yaskawa, and Allen-Bradley. This enables precise parameter adjustment, reduces manual intervention, and improves overall production efficiency.
As an experienced tube mill manufacturer, Aogang provides customized welded pipe production solutions based on customers’ capacity requirements, raw materials, and finished pipe specifications. With mature process design and technical support, we help customers achieve stable production and long-term equipment performance.
A: The ERW 325 Tube Mill can produce welded steel pipes with outer diameters of 165mm–325mm and wall thicknesses of 3.0mm–14.0mm, including square and rectangular tubes.
A: The machine is suitable for carbon steel, galvanized steel, and low-alloy steel strips for welded pipe production.
A: Yes. Aogang provides customized solutions, installation guidance, commissioning support, operator training, and after-sales service based on customer requirements.
Adopts FF (Flexible Forming) technology, reducing roller consumption by up to 50%, effectively lowering spare parts cost and maintenance pressure.
Equipped with automatic adjustment functions, significantly reducing roller change and setup time, improving production efficiency.
Ensures more uniform deformation across each stand, improving welding quality and dimensional accuracy.
Optimized process design and stable control system help reduce defective products and improve overall yield.
Capable of producing round, square, and rectangular pipes, meeting diverse production requirements across industries.
Optional integration with Siemens, Yaskawa, and Allen-Bradley systems ensures stable operation and high reliability.
| Finished product | Round Pipe | Φ114mm-φ325mm |
| Thickness: 3.0mm-14.0mm | ||
| Thickness: 3.0mm-12.7mm(material: X70, N80) | ||
| Square & rectangle tube | 140mm×140mm-255mm×255mm | |
| Thickness:3.0mm-12.0mm | ||
| Length | 5m-12m | |
| Length Tolerance | ±3.0mm | |
| Production Speed | 10-40m/min | |
| Raw Material | Coil material | ● HR/CR carbon steel |
| ● High-Strength Low -Alloy- Steel(HSLA) | ||
| ● Advanced High-Strength Steels (AHSS) | ||
| Width | 360mm-1020mm | |
| Thickness: 3.0mm-14.0mm | ||
| Coil ID | Φ580-φ630mm | |
| Coil OD | Φ900～φ2000mm | |
| Coil Weight | 15.0Tons |

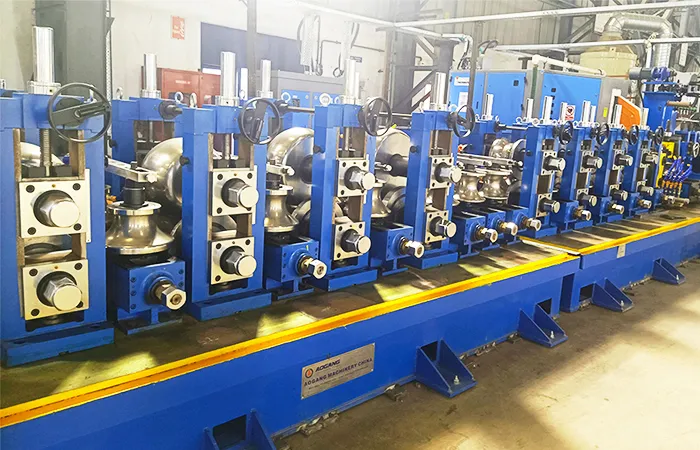

These video cases highlight actual installation and commissioning processes, demonstrating Aogang’s proven expertise, attentive service, and the dependable performance of our equipment. Each production line can be tailored to customer specifications, delivering comprehensive one-stop solutions.
