ERW 165 Tube mill

The ERW 165 Tube Mill is a high-performance ERW Tube Mill designed for medium and large diameter welded steel pipe production. It is capable of producing steel pipes with outer diameters of 60mm–165mm and wall thicknesses of 2.0mm–6.0mm, as well as corresponding square and rectangular tubes. It is widely used in construction, automotive, furniture, agricultural, and other industrial applications, featuring stable forming, reliable welding performance, and low defect rates. Customized motor configurations are also available according to customer requirements.

Inquire Now + Next Product +

Product Description

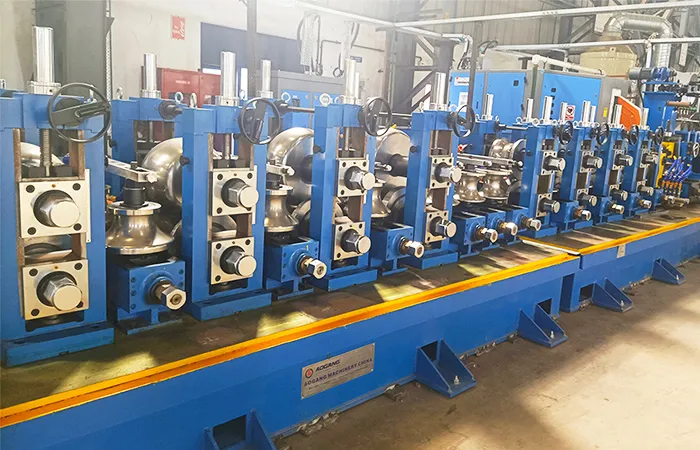

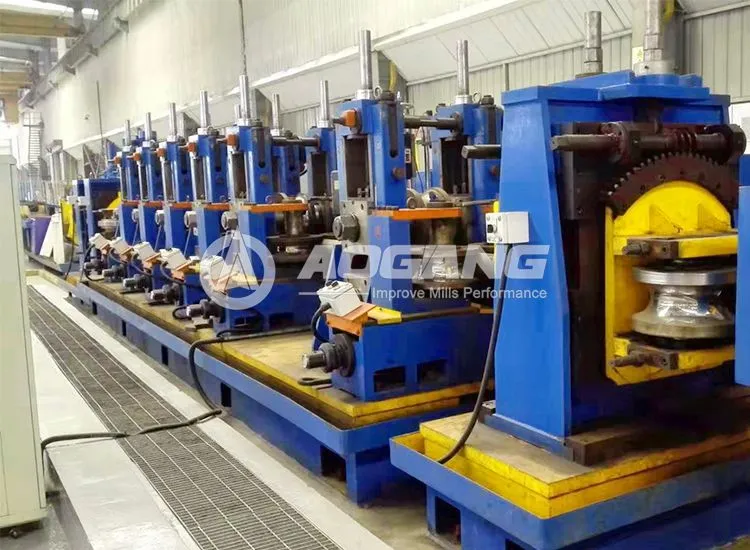

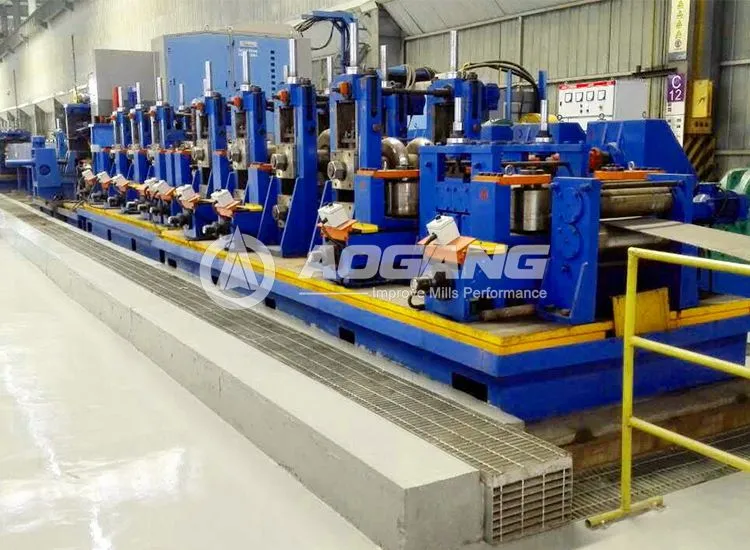

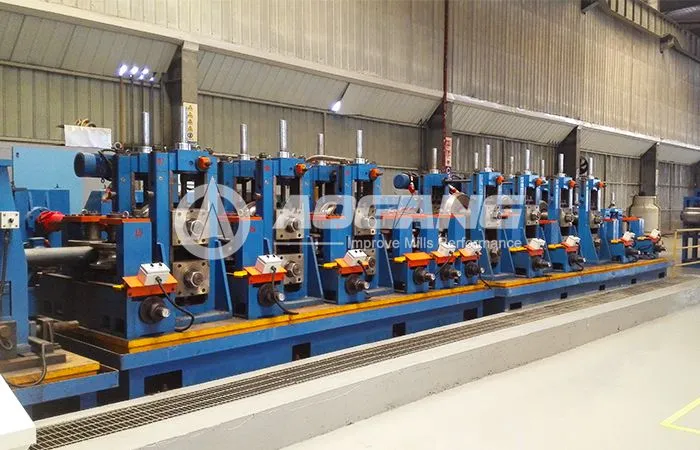

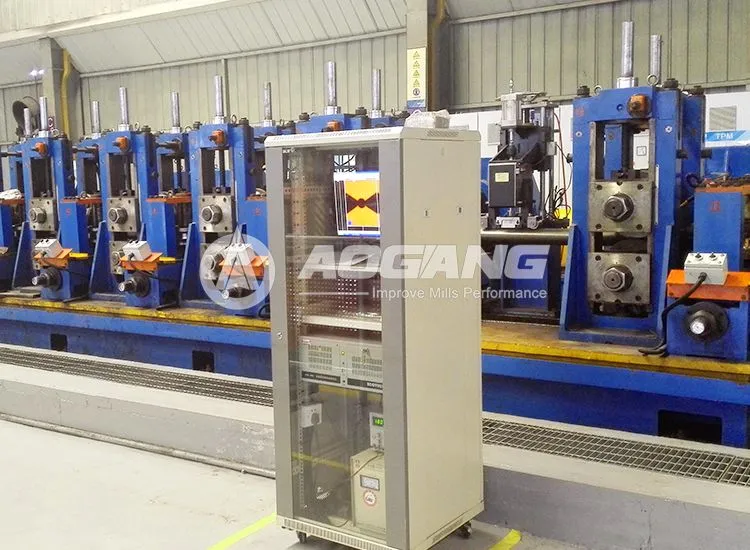

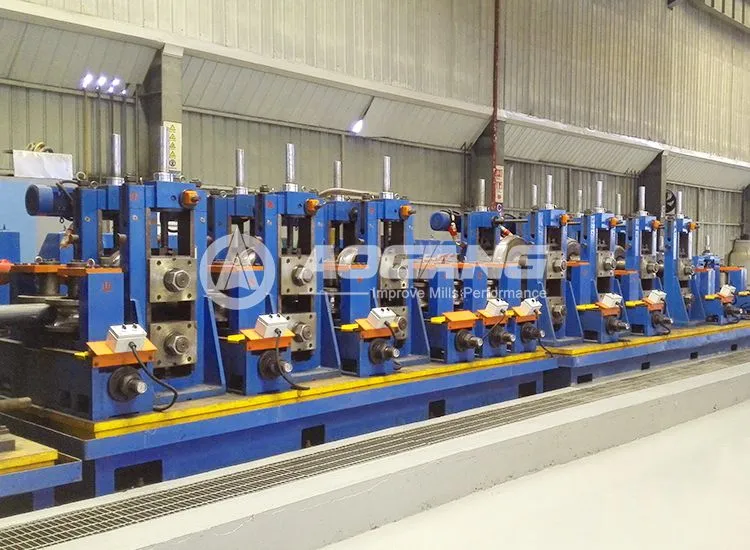

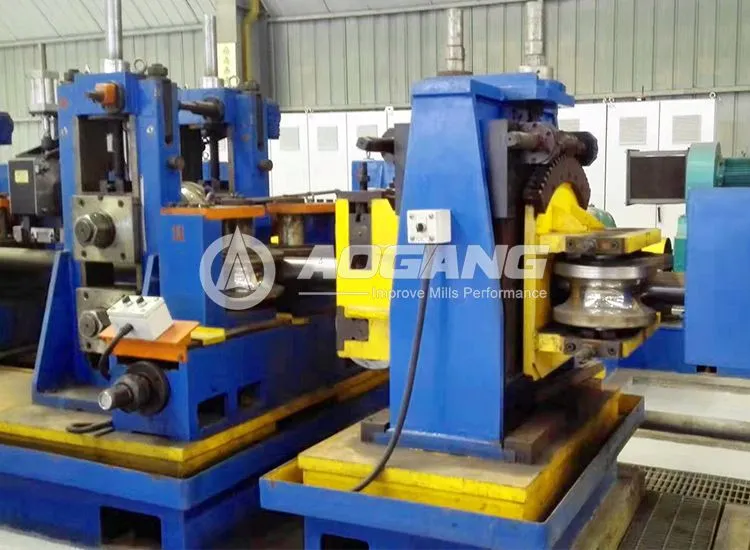

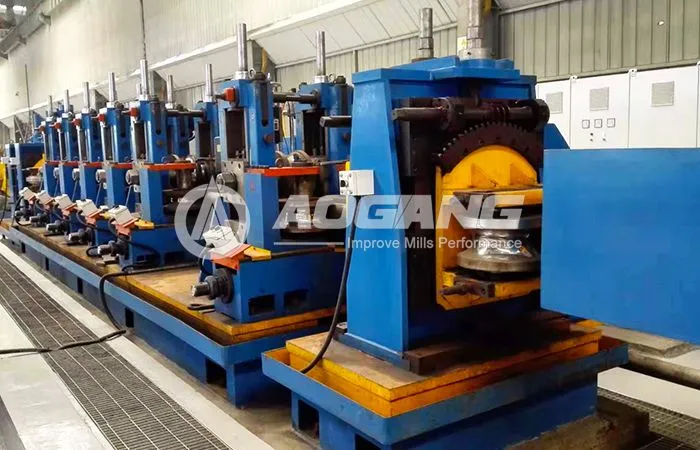

The ERW 165 Tube Mill is a robust welded pipe production line that utilizes advanced ERW (Electric Resistance Welding) technology to efficiently manufacture steel pipes and profiled tubes in various specifications. Its modular design provides flexible solutions for applications such as pipeline engineering, machinery manufacturing, structural tubing, and chemical equipment.

The production line supports continuous operation with speeds of up to 50 m/min, depending on pipe specifications and material conditions. It can be equipped with internationally recognized motor brands such as Siemens and Yaskawa, ensuring precise power transmission and reliable performance. With an automated control system and high-strength structural design, the ERW 165 Tube Mill delivers stable operation, consistent welding quality, and long-term service life.

Frequently Asked Questions

Q1: What pipe sizes can the ERW 165 Tube Mill produce?

A: The ERW 165 Tube Mill can produce welded steel pipes with outer diameters of 60mm–165mm and wall thicknesses of 2.0mm–6.0mm, including corresponding square and rectangular tubes.

Q2: What materials can be processed by the ERW 165 Tube Mill?

A: The machine is suitable for carbon steel, galvanized steel, and low-alloy steel strips used for welded pipe production.

Q3: What industries use the ERW 165 Tube Mill?

A: The ERW 165 Tube Mill is widely used in construction, structural tubing, automotive components, machinery manufacturing, and other industrial applications.

Q4: Can the ERW 165 Tube Mill produce square and rectangular tubes?

A: Yes. With suitable tooling and configurations, the production line can manufacture corresponding square and rectangular steel tubes.

Q5: Does Aogang provide installation and technical support?

A: Yes. Aogang provides technical support including installation guidance, commissioning assistance, operator training, and after-sales service.

Product Advantages

High Efficiency Production

With a line speed of 20-50m/min, it significantly boosts productivity and shortens delivery cycles.

Intelligent Automation

Fully automated process control minimizes manual intervention, reducing operational costs.

Superior Stability

The reinforced frame design ensures low vibration even at high speeds, guaranteeing dimensional accuracy of pipes.

High-Quality Yield

Advanced welding technology keeps defect rates at industry-leading lows, minimizing material waste.

Flexible Configuration

Supports optional high-end motors from Siemens, Yaskawa, and other brands to accommodate diverse production needs.

Heavy-Duty Forming Capability

Reinforced structural design ensures stable shaping and consistent wall thickness for large-diameter, thick-walled pipes, suitable for demanding industrial applications.

ERW 165 Tube Mill Technical Parameter

Customized as per customer requirements

Finished Product	Round Pipe	Φ60mm-φ165mm Thickness: 2.0mm-6.0mm
	Square & rectangle tube	50mm×50mm-130mm×130mm Thickness:2.0mm-5.0mm
	Length	5m-12m
	Length Tolerance	±1.5mm
	Production Speed	20-50m/min
Raw Material	Coil material	● HR/CR carbon steel ● High-Strength Low -Alloy- Steel(HSLA) ● Advanced High-Strength Steels (AHSS)
	Width	190mm-520mm Thickness: 2.0mm-6.0mm
	Coil ID	Φ580-φ630mm
	Coil OD	Φ900～φ2000mm
	Coil Weight	10.0Tons
