ERW TUBE MILL
Aogang Machinery Co., Ltd.
Aogang Machinery Co., Ltd.

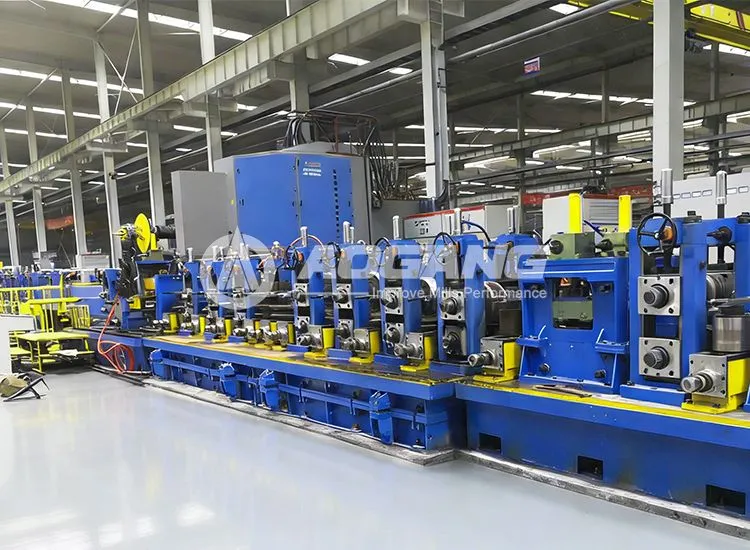

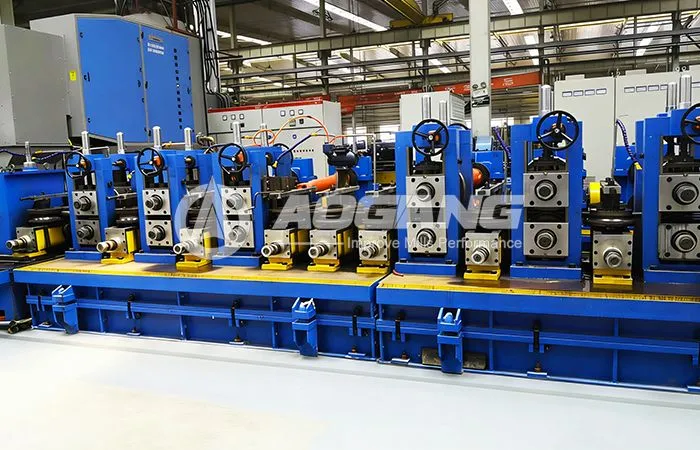

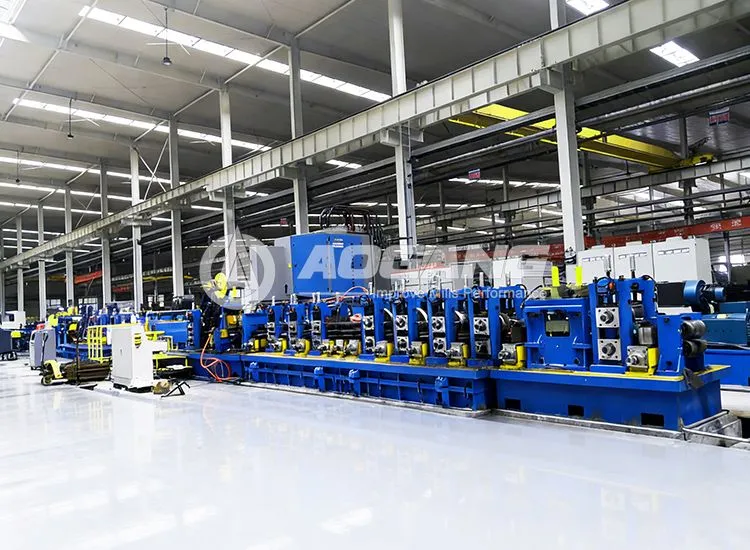

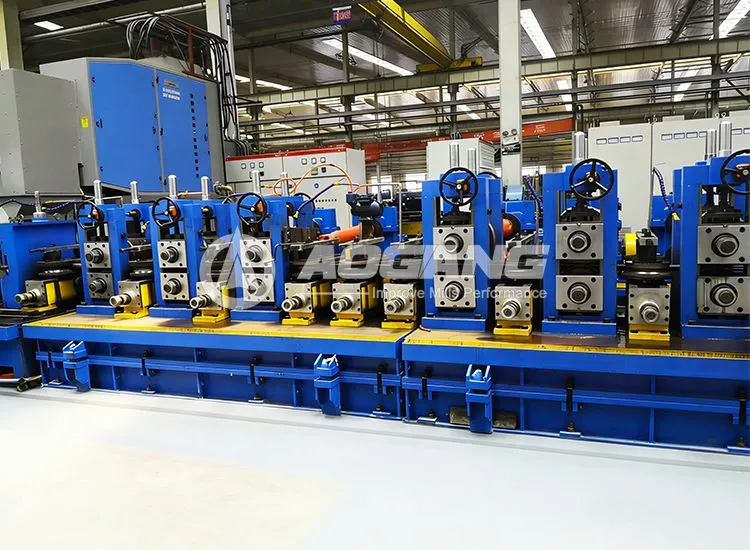

The ERW 89 tube mill is a high-efficiency pipe making machine designed for the production of small and medium-diameter welded steel pipes. It is suitable for round pipes with an outer diameter of 22–76 mm and a wall thickness of 0.9–4.0 mm, and can also produce corresponding square and rectangular tubes.
This machine is widely used in industries such as GI pipe manufacturing, construction, automotive, general mechanical tubing, oil and gas, conduit systems, agriculture, and chemical applications. With a stable overall structure, it maintains reliable forming and welding quality under high-speed operation, meeting the requirements of continuous production.
The ERW 89 tube mill adopts a proven high-frequency electric resistance welding process. The entire production line is compact and well-arranged, with smooth transitions between strip forming, welding, sizing, and cutting, effectively ensuring forming stability and welding consistency during high-speed production. The line speed can reach up to 80 m/min, significantly improving productivity while maintaining product quality.
Based on Aogang’s long-term manufacturing experience in tube mill equipment, this model has been optimized in terms of structural design, key component selection, and overall line matching. The machine features high rigidity and stable operation, making it suitable for long-term continuous production. It helps reduce failure rates and unplanned downtime, enabling customers to achieve stable and efficient steel pipe manufacturing.
The production line supports a maximum speed of up to 80 m/min, effectively increasing output while ensuring forming and welding quality, making it suitable for large-scale continuous production.
With a robust overall structure and well-matched stations, the machine operates stably under high-speed conditions, reducing vibration and production fluctuations.
The mature ERW high-frequency welding process ensures uniform weld formation, helping improve dimensional consistency and finished pipe quality.
Capable of producing round, square, and rectangular pipes, the machine meets the requirements of GI pipes, construction, mechanical, automotive, and various industrial pipeline applications.
The smooth integration of each process allows long-term continuous operation, effectively reducing failure rates and unplanned downtime.
The ERW 89 tube mill is built with a robust structure and high-quality components, ensuring long-term stable operation, low maintenance requirements, and consistent welded pipe quality under continuous high-speed production.
| Finished product | Round Pipe | Φ22mm-φ89mm |
| Thickness: 09mm-4.0mm | ||
| Square & rectangle tube | 19mm×19mm-60mm×60mm | |
| Thickness:09mm-3.0mm | ||
| Length | 5m-12m | |
| Length Tolerance | ±1.5mm | |
| Production Speed | 50-80 m/min | |
| Raw Material | Coil material | ● HR/CR carbon steel or galvanized steel |
| ● High-Strength Low -Alloy- Steel(HSLA) | ||
| ● Advanced High-Strength Steels (AHSS) | ||
| Width | 70mm-240mm | |
| Thickness: 0.9mm-4.0mm | ||
| Coil ID | Φ480-φ520mm | |
| Coil OD | Φ800～φ1800mm | |
| Coil Weight | 2.5-3.0Tons |

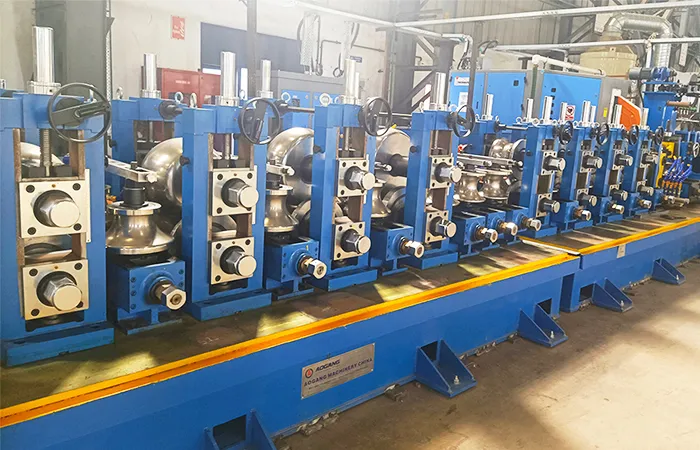

This immersive video provides a comprehensive overview of our high-efficiency intelligent The ERW Tube Mill solution. Witness the complete automated process from coil uncoiling, precision forming & welding, to accurate cutting and final bundling. Whether producing carbon steel pipes, galvanized tubes or custom-profile pipes, Voestalpine delivers tailored solutions with proven reliability and operational excellence.
Reach out today to see how Aogang can support your tube mill needs
