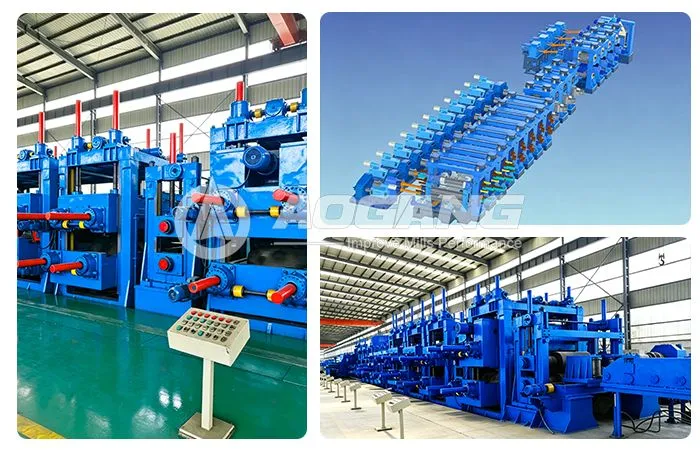

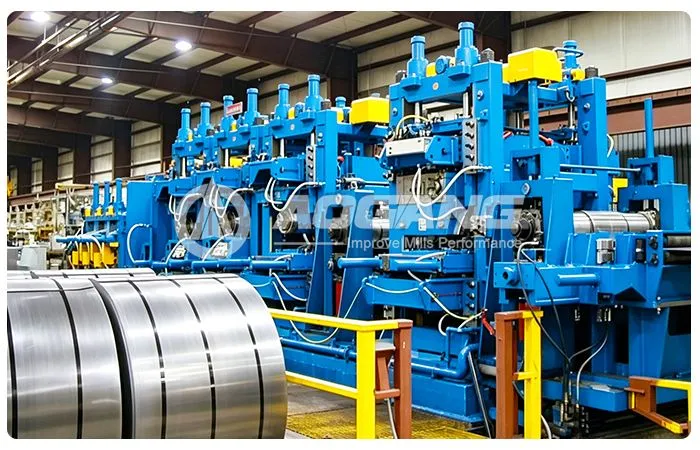

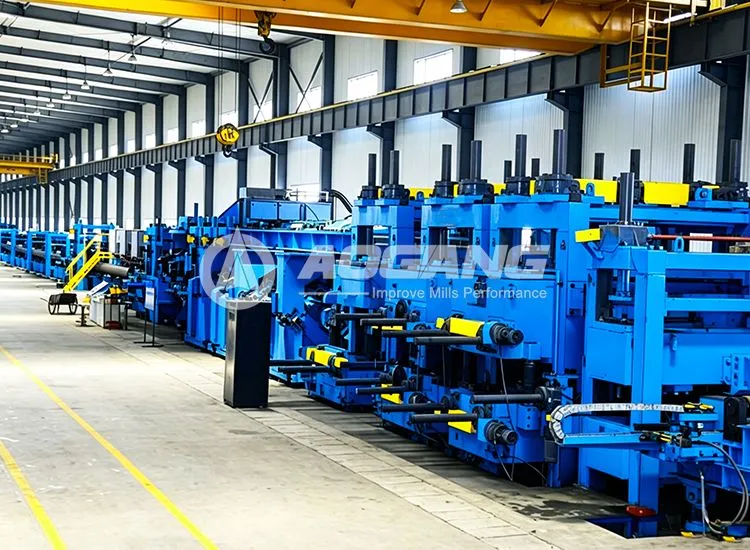

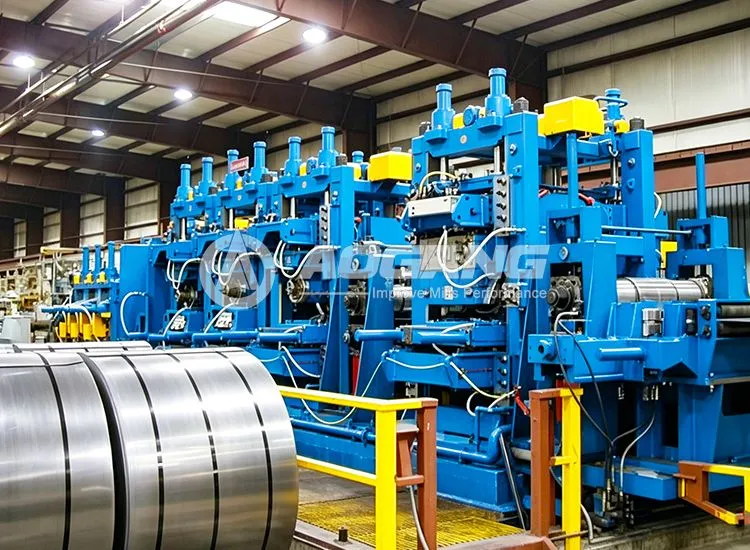

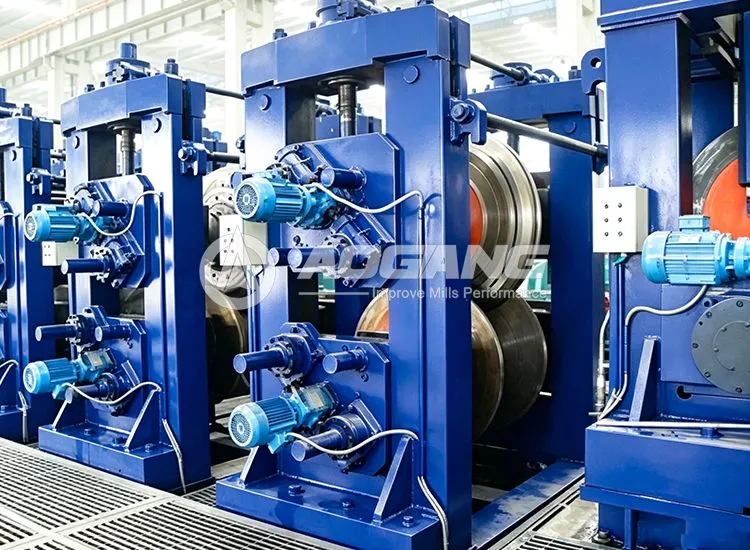

ERW660 Tube Mill | High Precision Large Pipe Mill

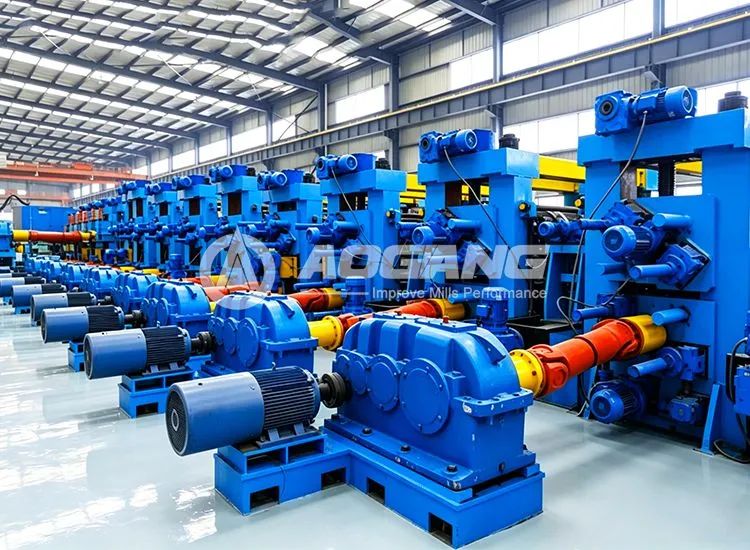

ERW 660 Tube Mill

The ERW 660 Tube Mill is a large-diameter welded pipe production line designed for manufacturing high-strength and heavy-wall steel pipes. It can stably produce longitudinal welded steel pipes with an outer diameter ranging from Φ406mm to Φ660mm, and can also be configured for producing square and rectangular tubes according to customer requirements.

This equipment is widely used in industries such as construction structures, oil and gas transportation, steel structures, and heavy machinery, providing an efficient solution for large-diameter welded steel pipe production.

Inquire Now +

Product Description

As part of Aogang's complete ERW Tube Mill solutions, the ERW 660 Tube Mill adopts advanced high-frequency welding technology and precision forming technology. Through a continuous and automated production process, it integrates uncoiling, leveling, forming, high-frequency welding, sizing, and cutting into a complete pipe manufacturing line.

The production line features a reasonable design, stable operation, and reliable performance, making it especially suitable for the production of large-diameter and heavy-wall steel pipes requiring high precision, consistent welding quality, and long-term production stability.

Aogang Machinery provides complete ERW 660 Tube Mill solutions, including process design, equipment selection, production line configuration, automation system integration, installation guidance, commissioning, and technical support. The solution can be customized according to customer production capacity and pipe specifications, helping customers achieve efficient production, stable operation, and reliable long-term performance.

FAQ

1. What pipe sizes can the ERW660 Tube Mill produce?

The ERW 660 Tube Mill is designed for manufacturing welded steel pipes with an outer diameter range of Φ406mm to Φ660mm. The production range can be customized according to customer requirements.

2. What materials can be processed by the ERW660 Tube Mill?

The ERW 660 Tube Mill can process carbon steel, mild steel, and galvanized steel for large-diameter welded pipe production. Material specifications can be configured based on different production requirements.

3. Does Aogang provide complete solutions for ERW660 Tube Mill projects?

Yes. Aogang Machinery provides complete solutions including process design, equipment manufacturing, installation guidance, commissioning, and technical support to meet different customer production requirements.

Product Advantages

High-efficiency FF forming process

The optimized FF forming design reduces roller consumption by up to 60%, significantly lowering production costs.

Automatic adjustment system

Equipped with intelligent fast adjustment functions, enabling quick specification changes and reducing roll change and setup time.

High-precision forming quality

Uniform deformation design across stands improves pipe roundness, straightness, and dimensional consistency.

Low defect rate production

Advanced control system ensures stable operation, significantly reducing defective products and improving overall yield.

High-strength steel compatibility

Capable of processing API 5L X70 and API 5CT N80 high-strength steel grades, meeting the strict requirements of oil & gas transportation and oil well tubing applications.

High-end electrical system optional

Optional Siemens or Allen-Bradley control systems are available, enabling higher levels of automation and intelligent production control.

ERW 660 Tube Mill Technical Parameter

Customized as per customer requirements

Finished product	Round Pipe	Φ406mm-φ660mm
		Thickness: 8.0mm-20.0mm
		Thickness: 8.0mm-12.7mm(material: X70, N80)
	Square & rectangle tube	140mm×140mm-255mm×255mm
	Square & rectangle tube	Thickness:6.0mm-18.0mm
	Length	5m-12m
	Length Tolerance	±3.0mm
	Production Speed	10-30m/min
Raw Material	Coil material	● HR/CR carbon steel
		● High-Strength Low -Alloy- Steel(HSLA)
		● Advanced High-Strength Steels (AHSS)
	Width	1275mm-2075mm
	Width	Thickness: 8.0mm-20.0mm
	Coil ID	Φ580-φ630mm
	Coil OD	Φ900～φ2000mm
	Coil Weight	30.0Tons

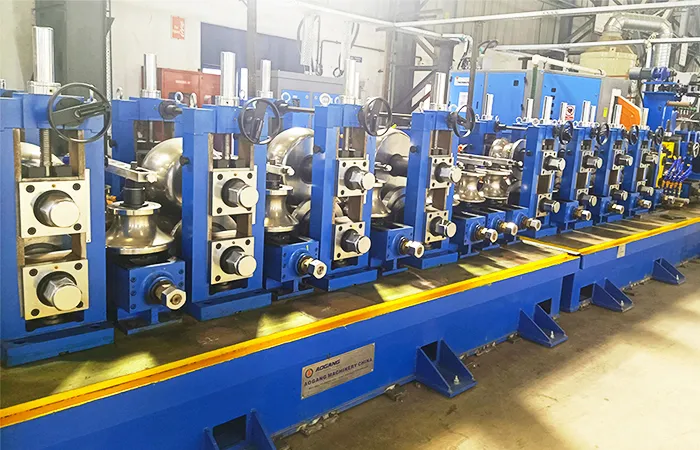

ERW Tube Mill Line Video Showcase

These video cases showcase real installation and commissioning processes, allowing you to directly see Aogang’s extensive industry experience, professional service, and the stable performance of our equipment. Our production lines can be customized to meet customer requirements, offering one-stop solutions.

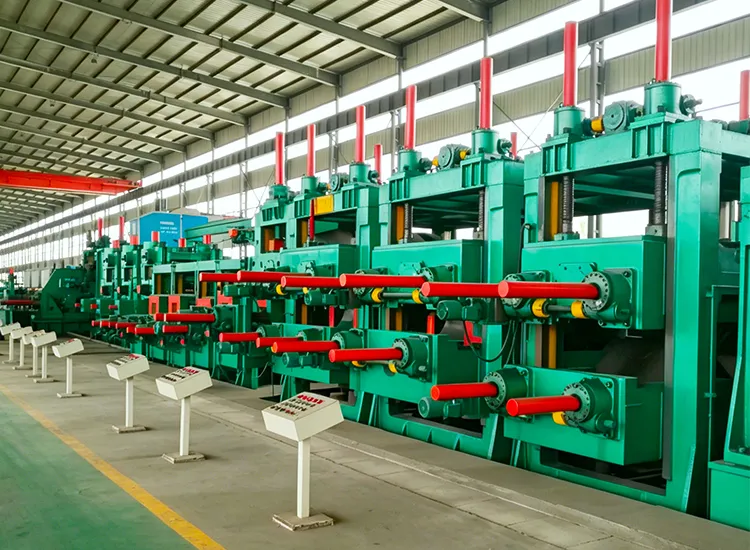

ERW 508 Tube Mill

The ERW 508 Tube Mill is a high-performance ERW Tube Mill designed for manufacturing large diameter welded steel pipes with outer diameters ranging from 325mm to 508mm. It is suitable for producing round, square, and rectangular steel tubes with high precision and stable production performance. The line is widely used in construction, oil and gas, automotive, and heavy machinery industries.

ERW406 Tube Mill

The ERW 406 Tube Mill is a large diameter ERW Tube Mill designed for the production of welded steel pipes with outer diameters ranging from 219mm to 406mm, as well as corresponding square and rectangular tubes. This production line is developed for large diameter and thick-wall pipe manufacturing and is widely used in industries such as construction structures, oil and gas transportation, engineering machinery, and automotive applications. It meets the requirements for high-strength and high-quality industrial piping.

ERW325 Tube Mill

The ERW 325 Tube Mill is a large diameter ERW Tube Mill designed to produce round steel pipes with an outer diameter of 165mm–325mm and wall thicknesses of 3.0mm–14.0mm. It can also manufacture corresponding square and rectangular pipes, providing a reliable solution for large diameter welded steel pipe production. The production line integrates uncoiling, forming, high-frequency welding, sizing, and cutting processes into a complete continuous production system. With an optimized line layout and stable operation performance, it is suitable for efficient manufacturing of large-size and thick-wall steel pipes.

ERW 273 Tube Mill

The ERW 273 Tube Mill is a high-efficiency straight seam welding machine designed for medium to large-diameter steel pipe production, capable of manufacturing round, square, and rectangular pipes with an outer diameter of up to 273 mm. It adopts mature high-frequency resistance welding (HFRW) technology to achieve continuous production from steel strip to finished pipe. The production line operates stably with high forming precision, making it ideal for large-scale manufacturing across various industrial sectors.

ERW 165 Tube mill

The ERW 165 Tube Mill is a high-performance ERW Tube Mill designed for medium and large diameter welded steel pipe production. It is capable of producing steel pipes with outer diameters of 60mm–165mm and wall thicknesses of 2.0mm–6.0mm, as well as corresponding square and rectangular tubes. It is widely used in construction, automotive, furniture, agricultural, and other industrial applications, featuring stable forming, reliable welding performance, and low defect rates. Customized motor configurations are also available according to customer requirements.

ERW 127 Tube mill

The ERW 127 Tube Mill is a high-performance ERW Tube Mill designed for the production of round steel pipes with an outer diameter of 48 mm–127 mm and a wall thickness of 1.5 mm–5.0 mm, as well as corresponding square and rectangular tubes.
