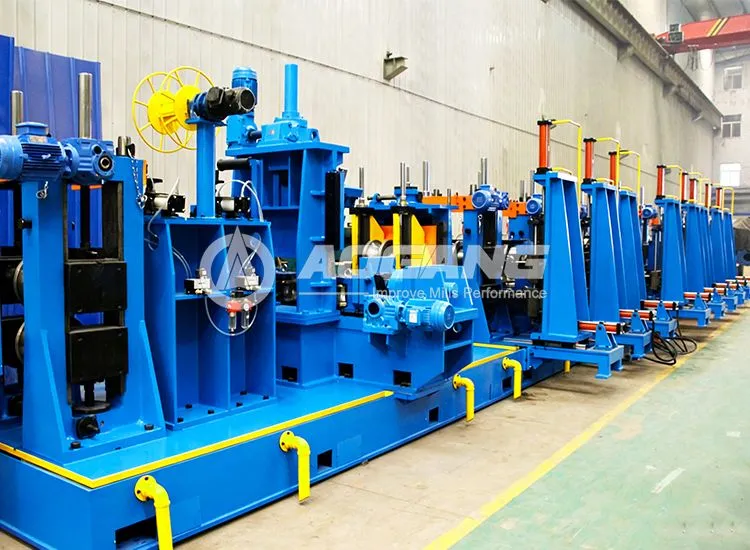

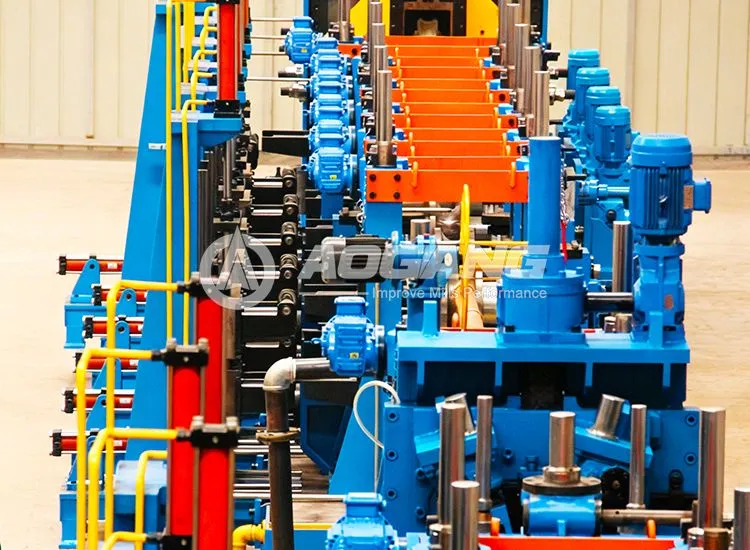

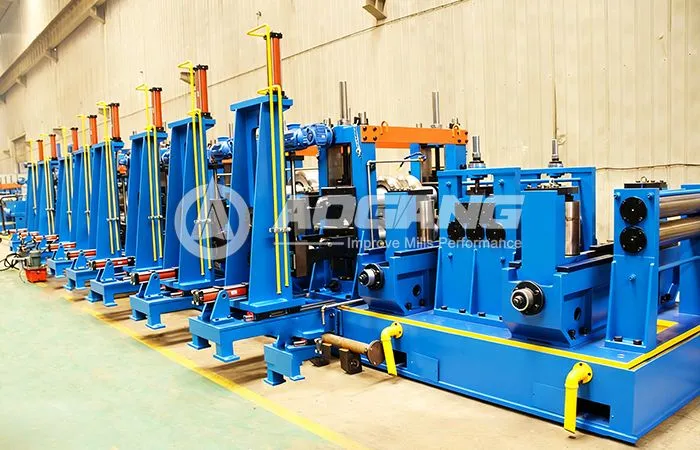

ERW 273 Tube Mill

The ERW 273 Tube Mill is a high-efficiency ERW Tube Mill designed for medium and large diameter welded steel pipe production. It is capable of manufacturing round, square, and rectangular steel pipes with an outer diameter of up to 273 mm. The machine adopts advanced high-frequency electric resistance welding (ERW) technology to achieve continuous production from steel strip to finished pipes. With stable operation and high forming accuracy, it is suitable for large-scale steel pipe manufacturing in various industrial applications.

Inquire Now + Next Product +

Product Description

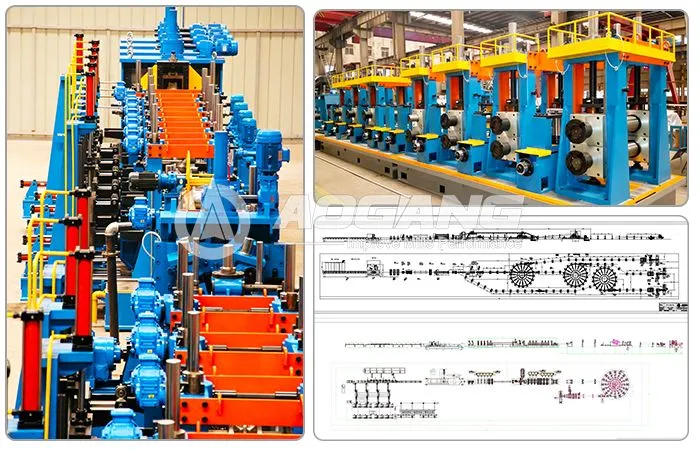

The ERW 273 Tube Mill integrates uncoiling, forming, high-frequency welding, sizing, straightening, and cutting into a complete automated production line. The optimized line layout ensures smooth material flow between each section, improving production efficiency and maintaining long-term stable operation.

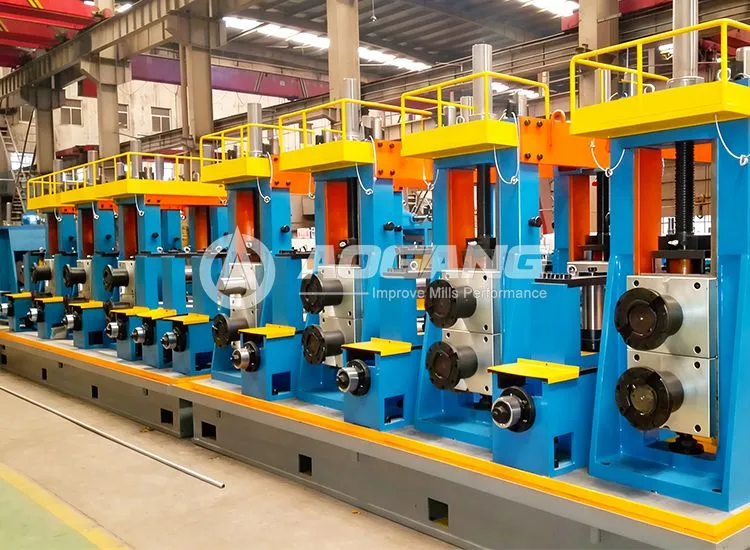

During the forming process, the machine uses precision roll design to gradually shape the steel strip, ensuring consistent pipe roundness and dimensional accuracy. The high-frequency welding system provides concentrated heating and reliable welding performance, ensuring strong and stable weld quality.

The sizing and straightening sections further improve finished pipe accuracy, producing pipes with uniform dimensions and smooth surfaces. Equipped with an automatic flying saw system, the production line enables online cut-to-length operations, reducing downtime and improving overall productivity.

The entire line supports automated control and flexible parameter adjustment according to different production requirements. It can handle multiple pipe specifications and allows customized configurations to meet various industrial production needs.

Frequently Asked Questions

Q1: What pipe sizes can the ERW 273 Tube Mill produce?

A: The ERW 273 Tube Mill is designed for medium and large diameter welded steel pipe production and can manufacture round, square, and rectangular pipes with a maximum outer diameter of 273 mm.

Q2: What materials can be processed by the ERW 273 Tube Mill?

A: The machine is suitable for carbon steel, galvanized steel, and low-alloy steel strips used for welded pipe manufacturing.

Q3: What welding technology does the ERW 273 Tube Mill use?

A: The ERW 273 Tube Mill adopts high-frequency electric resistance welding technology to provide stable welding quality and continuous production performance.

Q4: Can the ERW 273 Tube Mill produce square and rectangular tubes?

A: Yes. With suitable roll tooling and production configurations, the line can manufacture corresponding square and rectangular steel tubes.

Q5: Does Aogang provide installation and technical support?

A: Yes. Aogang provides installation guidance, commissioning support, operator training, and after-sales technical service.

Product Advantages

High Production Stability

Mature line structure ensures smooth operation, suitable for long-term continuous production.

Reliable Weld Quality

Advanced high-frequency welding technology produces uniform, strong welds with consistent quality.

Excellent Forming Performance

Optimized roll design ensures high dimensional accuracy and smooth surface finish of the finished pipes.

High Level of Automation

Reduces manual intervention, improving production efficiency and operational safety.

Flexible Product Switching

Supports production of multiple pipe specifications, meeting diverse market demands.

Customizable Solutions

Can be tailored to customer requirements, enhancing equipment adaptability.

ERW 273 Tube Mill Technical Parameter

Customized as per customer requirements

Finished product	Round Pipe	Φ114mm-φ273mm
	Round Pipe	Thickness: 2.0mm-10.0mm
	Square & rectangle tube	140mm×140mm-215mm×215mm
	Square & rectangle tube	Thickness:2.0mm-8.0mm
	Length	5m-12m
	Length Tolerance	±1.5mm
	Production Speed	10-40m/min
Raw Material	Coil material	● HR/CR carbon steel
		● High-Strength Low -Alloy- Steel(HSLA)
		● Advanced High-Strength Steels (AHSS)
	Width	360mm-860mm
	Width	Thickness: 2.0mm-10.0mm
	Coil ID	Φ580-φ630mm
	Coil OD	Φ900–Φ2000mm
	Coil Weight	15.0 Tons

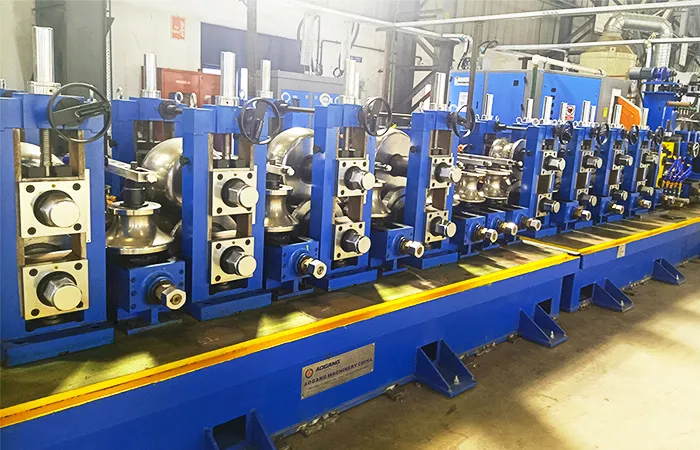

ERW Tube Mill Line Video Showcase

These video cases highlight actual installation and commissioning processes, demonstrating Aogang’s proven expertise, attentive service, and the dependable performance of our equipment. Each production line can be tailored to customer specifications, delivering comprehensive one-stop solutions.

ERW 165 Tube mill

The ERW 165 Tube Mill is a high-performance ERW Tube Mill designed for medium and large diameter welded steel pipe production. It is capable of producing steel pipes with outer diameters of 60mm–165mm and wall thicknesses of 2.0mm–6.0mm, as well as corresponding square and rectangular tubes. It is widely used in construction, automotive, furniture, agricultural, and other industrial applications, featuring stable forming, reliable welding performance, and low defect rates. Customized motor configurations are also available according to customer requirements.

ERW 127 Tube mill

The ERW 127 Tube Mill is a high-performance ERW Tube Mill designed for the production of round steel pipes with an outer diameter of 48 mm–127 mm and a wall thickness of 1.5 mm–5.0 mm, as well as corresponding square and rectangular tubes.

ERW 101.6 Tube Mill

The ERW 101.6 Tube Mill is a high-efficiency ERW Tube Mill designed for welded steel pipe production. It is capable of producing steel pipes with outer diameters of 42mm–101.6mm and wall thicknesses of 1.0mm–4.5mm, as well as corresponding square and rectangular tubes. The machine is widely used in construction, automotive, furniture, agricultural, and other industrial applications, featuring stable operation, high production efficiency, and low defect rates. Customized motor configurations are also available according to customer requirements.

ERW 76 Tube mill

The ERW 76 Tube Mill is a high-efficiency ERW Tube Mill designed for the production of round, square, and rectangular steel pipes. Suitable for pipe diameters ranging from 22mm to 76mm and wall thicknesses from 0.9mm to 4.0mm, this machine delivers stable HF welding performance, precise forming accuracy, and reliable continuous operation.

ERW 89 Tube Mill

The ERW 89 Tube Mill is a high-efficiency ERW Tube Mill designed for the production of small and medium-diameter welded steel pipes. It is suitable for round pipes with an outer diameter of 32–89 mm and wall thicknesses of 1.2–4.5 mm, and can also produce corresponding square and rectangular tubes.

ERW 60 Tube Mill

The ERW60 Tube Mill is designed for producing welded steel pipes with an outer diameter of 19mm-63mm and a wall thickness of 0.8mm-3.5mm, as well as corresponding square and rectangular tubes. As part of Aogang’s ERW Tube Mill solutions, it is widely applied in construction, automotive, furniture, agricultural, and other industries.

ERW 50 Tube Mill

The ERW 50 Tube Mill is a highly efficient and automated welding pipe equipment, specifically designed for producing round, square, and rectangular pipes with an outer diameter of 16mm-50mm and a wall thickness of 0.7mm-3.0mm. It is widely used in construction, automotive, furniture, agricultural sectors, and other fields, featuring high stability and low defect rates. Customized motor configurations are also supported.
