CUT to LENGTH MACHINE
Aogang Machinery Co., Ltd.
Aogang Machinery Co., Ltd.

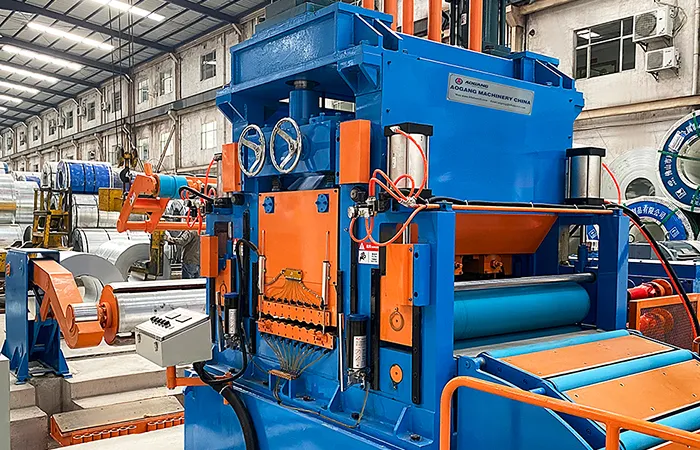

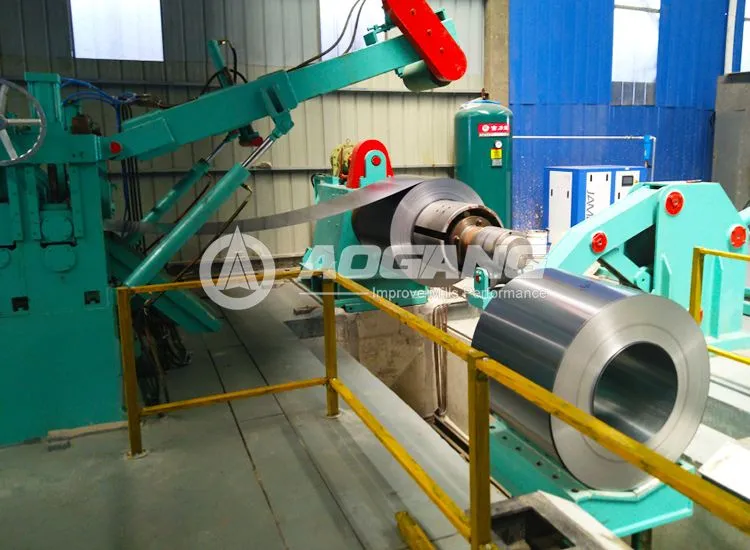

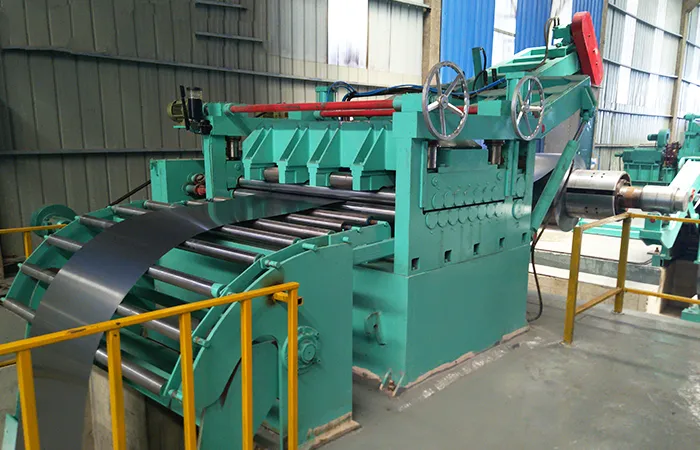

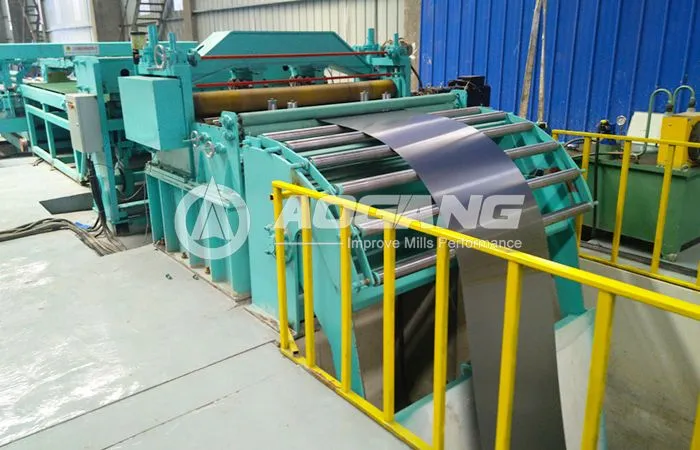

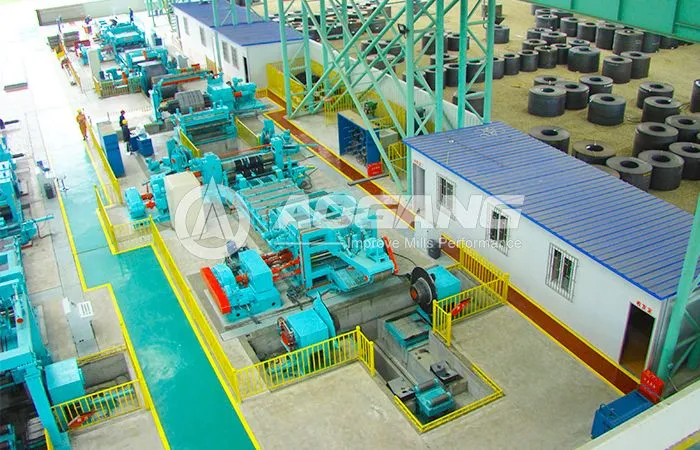

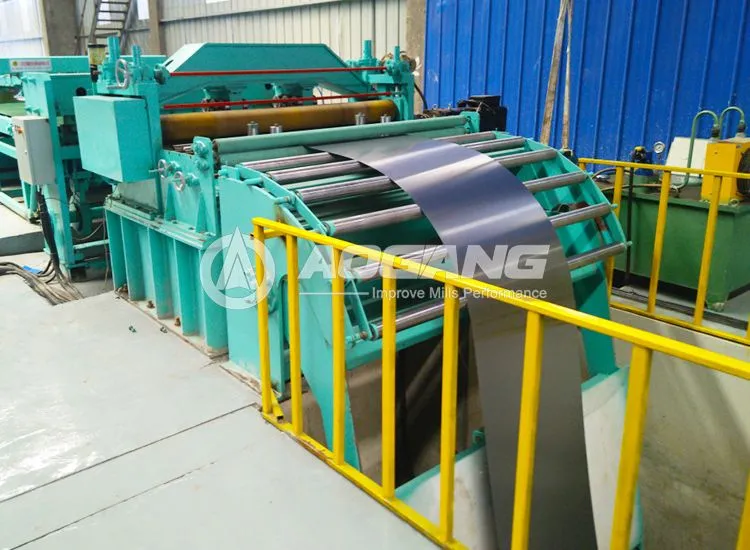

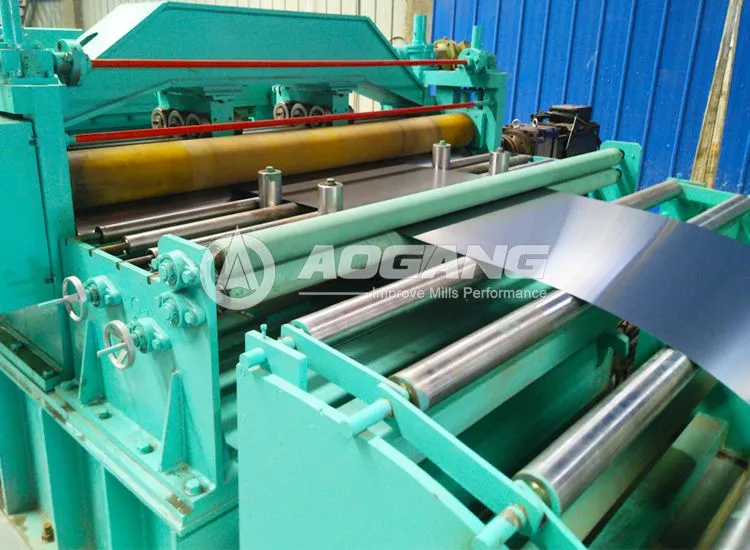

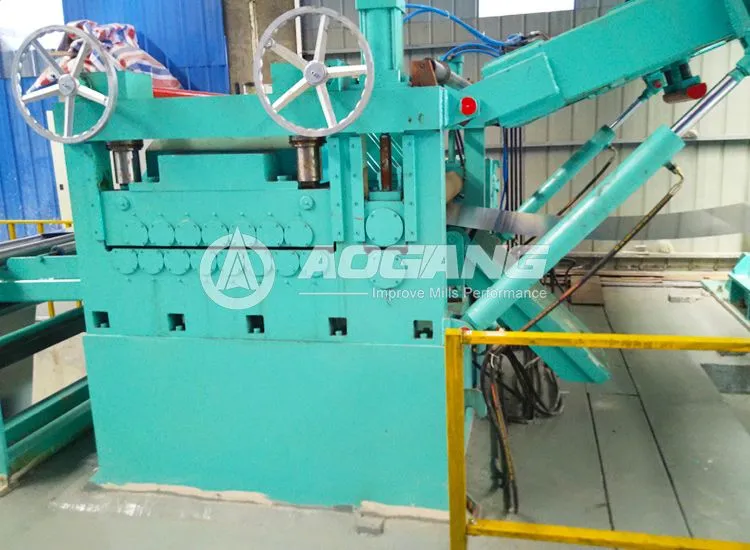

The Aogang Steel Coil Cutting Machine is specially designed for precision processing of carbon steel coils, leveling and cutting them into sheets. Featuring high leveling accuracy, precise cutting, and reliable operation, it provides an efficient solution for processing hot-rolled, cold-rolled, galvanized, pre-painted, and high-strength steel coils.
The machine is suitable for processing various carbon steel coil materials and is widely used in construction, automotive, steel service centers, tube manufacturing, metal fabrication, and other industries requiring precision sheet production. As part of Aogang's Cut to Length Machine solutions, the Steel Coil Cutting Machine can be configured according to different material and production requirements.
Designed with a high-precision leveling system, servo length control, and automatic shearing technology, the machine delivers excellent sheet flatness, accurate cutting lengths, clean cut edges, and stable production performance. Available models can process coil widths from 120 mm to 2,000 mm, material thicknesses from 0.3 mm to 30 mm, and line speeds up to 130 m/min, depending on the configuration.
The modular design allows flexible configurations based on coil width, thickness, production capacity, automation level, and factory layout. Optional automatic stacking and material handling systems can further improve production efficiency and reduce labor requirements.
Aogang provides customized steel coil cutting machine solutions, including project consultation, equipment design, manufacturing, installation, commissioning, operator training, spare parts supply, remote technical assistance, and comprehensive after-sales service to support reliable long-term operation.
A: The machine is designed for processing carbon steel, hot-rolled steel, cold-rolled steel, galvanized steel, pre-painted steel, and high-strength steel coils. Customized configurations are available for different material specifications and production requirements.
A: Depending on the selected model and configuration, the machine can process steel coils with thicknesses ranging from 0.3 mm to 30 mm and coil widths up to 2,000 mm.
A: The machine uses high-precision leveling rollers, servo length control, and an automatic shearing system to achieve good sheet flatness, accurate cutting lengths, clean cut edges, and consistent finished sheet quality.
A: Yes. Aogang provides customized steel coil cutting machine solutions based on coil width, material thickness, production speed, automation level, and factory layout to meet different production requirements.
A: Aogang provides comprehensive after-sales services, including installation, commissioning, operator training, spare parts supply, remote technical assistance, and long-term maintenance support throughout the equipment lifecycle.
Equipped with advanced hydraulic cutting systems to ensure accurate sheet length and smooth, burr-free edges.
Integrated automatic uncoiling, leveling, feeding, cutting, and stacking to reduce labor costs and improve production efficiency.
Suitable for carbon steel, hot-rolled steel, cold-rolled steel, galvanized steel, pre-painted steel, and high-strength steel coils.
Available in customized configurations based on coil width, thickness, cut length, production speed, and automation requirements.
Built with high-strength components and a robust machine structure to ensure reliable long-term operation.
Designed for continuous high-speed production with automatic stacking to maximize productivity and minimize downtime.
| Model | Material Width (mm) | Thickness Range (mm) | Speed (m/min) |
| CTL600 | 120-600 | 0.3-2.0 | 10-120 |
| CTL800 | 120-800 | 0.7-3.5 | 10-80 |
| CTL1300 | 400-1300 | 0.8-4.5 | 10-60 |
| CTL1600 | 600-1600 | 2.0-6.0 | 10-60 |
| CTL1800 | 900-1800 | 3.0-8.0 | 10-60 |
| CTL2000 | 1000-2000 | 6.0-16.0 | 10-30 |
| CTL2200 | 1000-2200 | 8.0-20.0 | 10-20 |
| CTL2500 | 1000-2500 | 8.0-20.0 | 10-20 |
Through these video cases, you can directly experience Aogang’s strength and craftsmanship in high-end manufacturing—from precise installation and commissioning to the stable and efficient performance of our equipment. We provide fully customizable production lines to help customers achieve intelligent, one-stop solutions.
Reach out today to see how Aogang can support your tube mill needs
