Brazilian steel structure enterprise introduces Aogang 24017 large cold roll forming line

Customer Background

The client is a large light steel structure construction company based in Brazil, specializing in the design and fabrication of steel structures for industrial plants, warehouses, and commercial buildings. With the continued growth in demand for light steel structures within the Brazilian construction industry, the client urgently needed a high-capacity, high-precision, large-scale cold-formed production line to meet the material supply needs for the concurrent construction of multiple projects. Ultimately, the client selected Aogang's customized 24017 large cold roll forming line.

Equipment Advantages

High Production Capacity

Can simultaneously support the supply of materials for multiple construction projects.

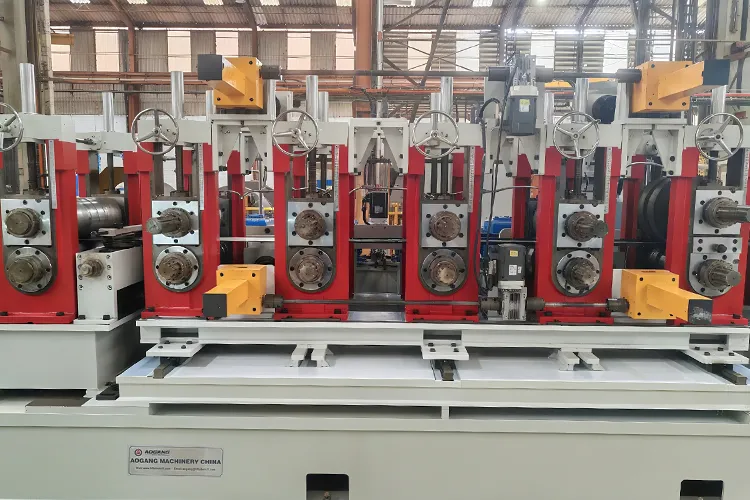

High-Precision Cold Roll Forming

Ensures cross-sectional consistency of profiles, enhancing the overall stability and safety of steel structures.

Diverse Profile Production Capabilities

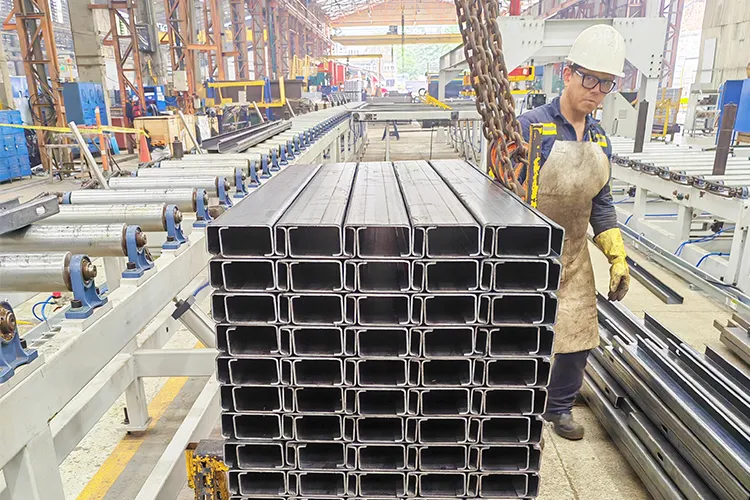

Supports the production of a variety of cold-formed profiles, including H-beams, C/Z-beams, and U-beams, for widespread use in factories, warehouses, and commercial building structures.

Intelligent Automation Control

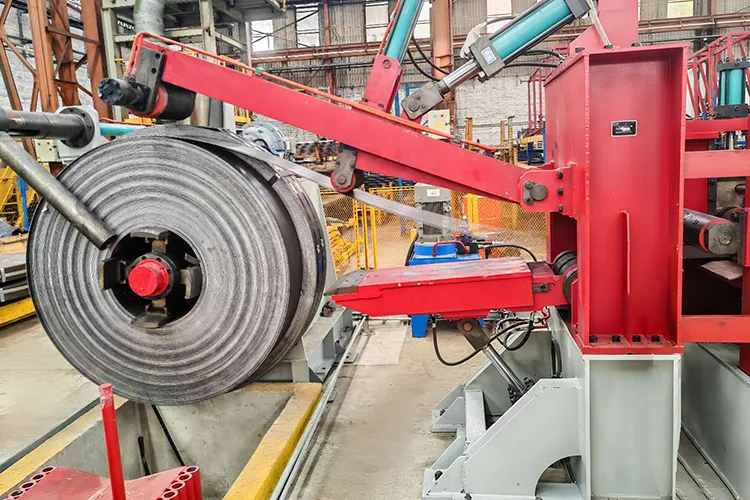

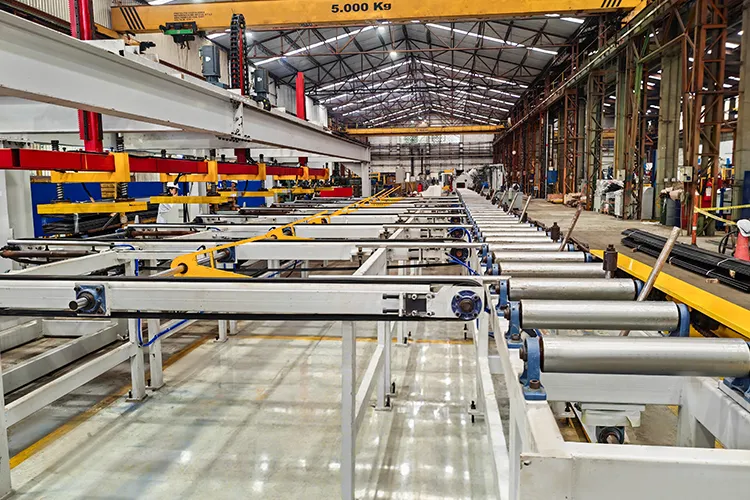

Utilizes a fully automated PLC control system for automated loading, forming, cutting to length, and stacking, significantly reducing labor costs.

Stability and Reliability

Key components are made of high-strength alloy steel, ensuring a long machine life. The modular design facilitates maintenance and supports remote diagnostics and technical support.

Technical Specifications

Customized as per customer requirements.

Model	24017 Large Cold Bending Production Line
Forming Specification Range	H-beam: Web Height 100–600 mm
Forming Specification Range	C/Z-beam: Width 100–350 mm
Section Wall Thickness Range	3.0 mm – 14.0 mm
Forming Speed	10 – 35 m/min
Finished Product Length	6.0 m – 15.0 m (Customizable)

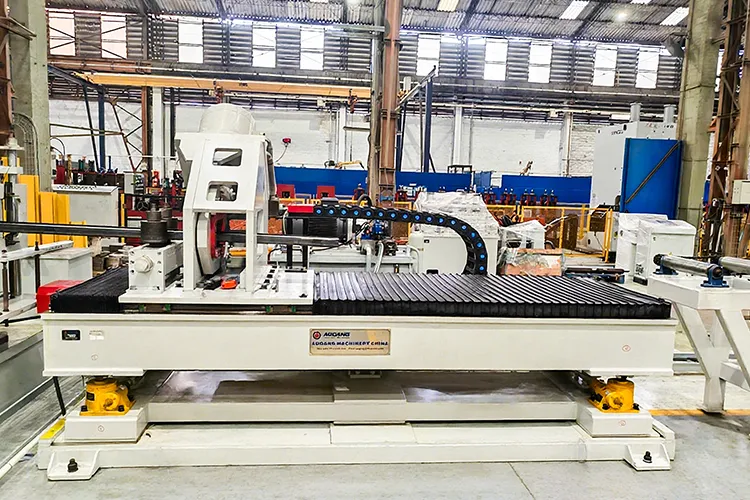

Cutting Method	Servo Flying Cut / Hydraulic Cut
Control System	PLC Fully Automatic Control
Annual Capacity (Single Shift)	Over 80,000 tons
