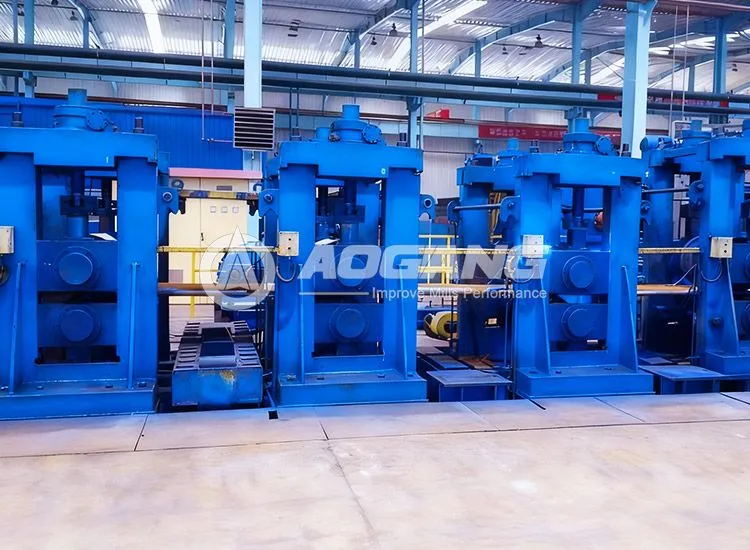

The Aogang Steel Piling Roll Forming Line is a specialized solution within our Cold Roll Forming Machine range, designed for efficient production of high-strength steel sheet piles from heavy-gauge hot-rolled steel coils up to 8 mm thick. Featuring a quick-change cassette system, a single line can produce up to 8 different profiles, providing flexible production for permanent and temporary foundation, retaining, and protection projects.
With the growing use of steel sheet piles in construction and infrastructure, efficient and accurate forming equipment is essential for maintaining stable production and consistent profile quality. The Aogang line combines high forming efficiency with flexible profile changeover, supporting production speeds of 15–20 m/min for heavy-gauge hot-rolled steel coils.
The innovative cassette quick-change system allows operators to switch profiles quickly without prolonged downtime, improving production flexibility for projects requiring multiple sheet pile specifications.
Steel piling roll forming lines are used for producing steel sheet piles for:
· Foundation construction
· Retaining walls
· Temporary excavation support
· Cofferdams
· Infrastructure projects
· Flood and erosion protection
The line is designed for heavy-gauge hot-rolled steel coils and can process material up to 8 mm thick, depending on the required profile and production configuration.
With the quick-change cassette system, a single production line can be configured to produce up to 8 different steel sheet pile profiles.
The cassette design allows forming components to be changed quickly when switching between different profiles, reducing setup time and minimizing production downtime.
The line can achieve a production speed of approximately 15–20 m/min, depending on the material, profile specification, and production configuration.
Yes. The line can be configured according to steel sheet pile profile specifications, material thickness, production capacity, and other project requirements.

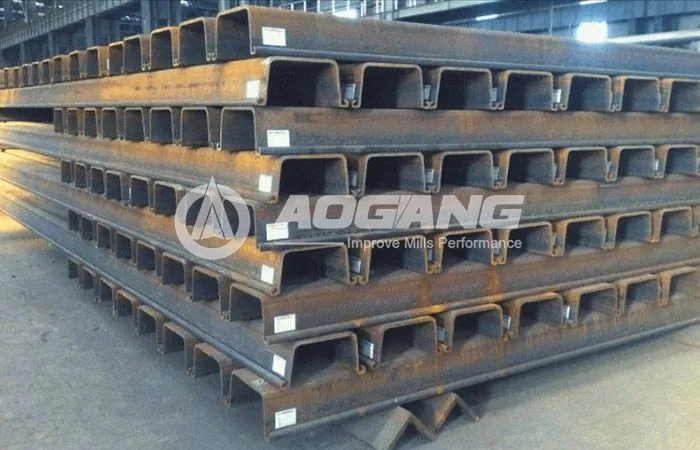

Steel sheet piles are commonly used for foundations, retaining walls, excavation support, cofferdams, and temporary or permanent protection structures in construction and infrastructure projects.
Cassette quick-change design supports fast switching between up to 8 profiles, improving flexibility and productivity.
Line speed of 15–20m/min, meeting large-scale continuous production demands.
Handles hot-rolled steel up to 8mm thickness with reliable forming quality.

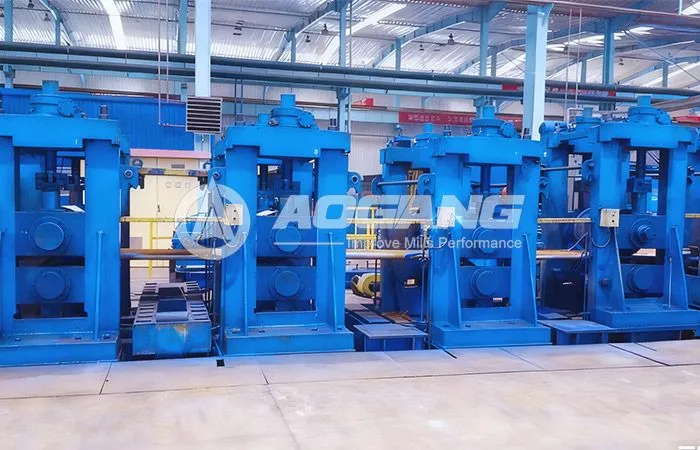

Fully integrated automation system reduces manual operation and ensures stable performance.

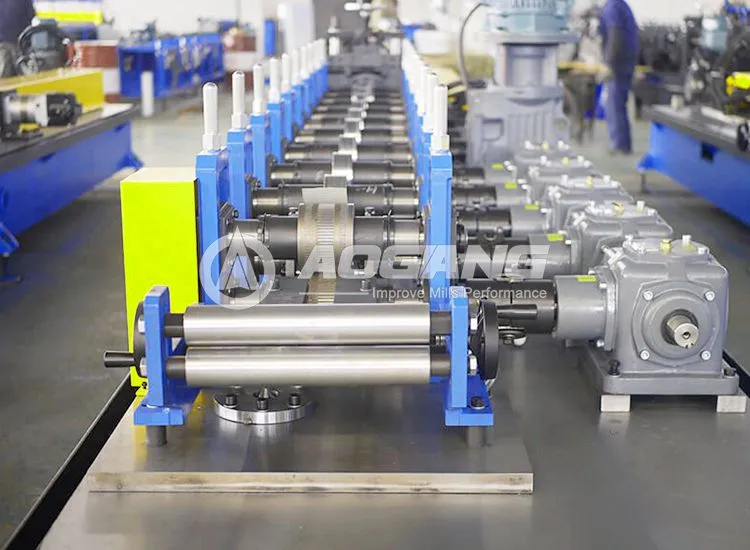

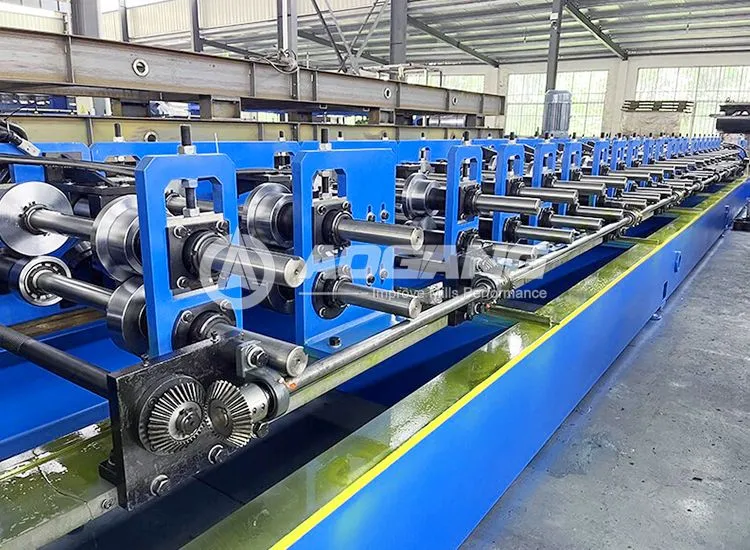

Gear-driven system ensures precise transmission, longer service life, and reduced maintenance costs.
High-precision roller design and closed-loop control help maintain consistent section accuracy, reducing material deviation and ensuring stable piling quality.
| Raw Material Specs | Material Type | S355JR (Hot-rolled steel plate) | Other grades optional |
| Yield Strength | σs < 400 MPa | ||
| Coil Thickness | 6.0 – 8.0 mm | ||
| Max Coil Width | ≤ 1000 mm | ||
| Coil Inner Diameter | Ø 762 mm | ||
| Coil Outer Diameter | Ø 1000 – 2000 mm | ||
| Max Coil Weight | ≤ 18 tons | ||
| Finished Product Specs | Section Types | Up to 8 different profiles with quick-change chuck system | One machine, multiple sections |
| Product Length | 2000 – 12000 mm | Customizable | |
| Equipment Performance | Line Speed | 15 – 20 m/min | |
| Total Power | Approx. 350 kW | ||
| Control System | Operation Mode | Highly automated, supports quick changeover |
