Highway Guardrails Roll forming Mill

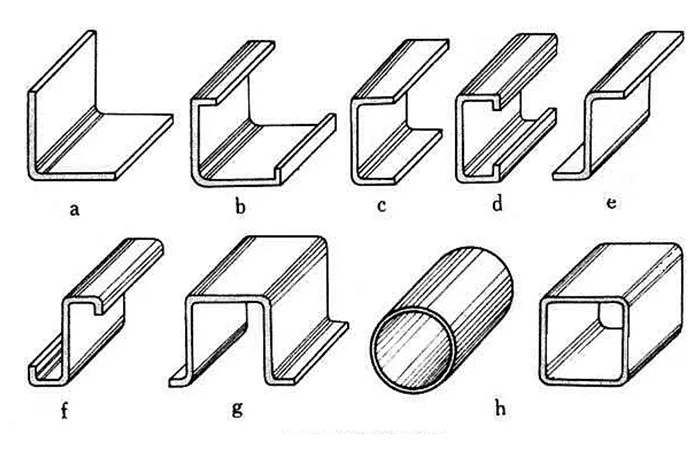

This cold roll forming mill is used to process cold and hot rolled steel strips into various open cold-formed sections, such as C, Z, U, M, L shapes, widely used for highway guardrails, C/Z purlins, automotive profiles, and more.

Inquire Now + Next Product +

Product Description

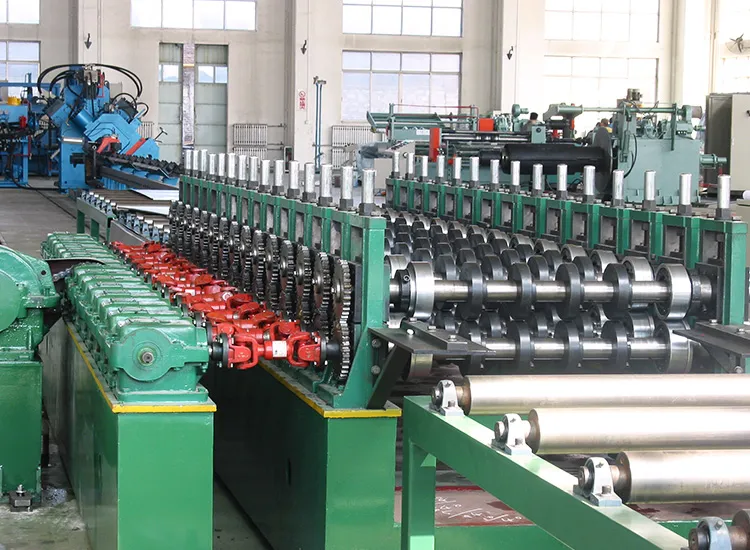

The highway guardrails roll forming mill utilizes an automated control system to efficiently and accurately process cold and hot rolled steel strips into open cold-formed sections such as C, Z, U, M, L shapes.

The equipment is widely used for producing highway guardrails, C/Z purlins, and automotive profiles. The working process includes: uncoiler → feeding → leveling → punching → roll forming → hydraulic cutting → output table.

Product Advantages

Automatic Size Change

The equipment can automatically change sizes within 1 minute, greatly improving production efficiency and reducing downtime.

High-Efficiency Transmission System:

The gearbox transmission structure provides higher strength and stability, extending the equipment's service life.

Fully Automated Operation

The automated control system reduces human intervention, lowers operational difficulty, and ensures a stable and safe production process.

Easy Installation and Maintenance

The simple design makes the equipment easy to install and maintain, reducing downtime and maintenance costs.

Wide Applicability

In addition to highway guardrails, the equipment can also produce C/Z purlins and automotive profiles, meeting custom requirements for various industries.

Highway Guardrails Rollforming Mill Technical Parameters

Customized as per customer requirements

Raw Material Specifications	Material Type	Cold-rolled steel, Hot-rolled steel, Galvanized steel	Stainless steel optional
	Material Thickness	2.0 – 6.0 mm	Depends on profile type
	Material Width	≤ 1250 mm	Customizable

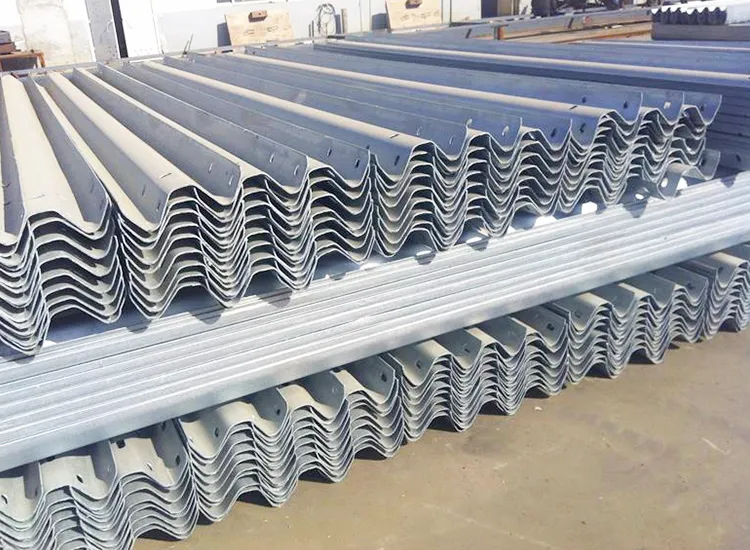

Finished Product Specifications	Profile Type	Highway guardrail (W-beam guardrail, Three-wave guardrail) and other open profiles (C-type, Z-type, U-type, M-type, L-type)	Customizable
Equipment Performance	Changeover Time	≤ 1 minute	Automatic adjustment
	Forming Speed	10 – 25 m/min	Depends on material thickness and punching
Control System	Control Core	PLC + Touch Screen
Control System	Operation Mode	Fully Automatic / Semi-Automatic / Manual	Easy installation, operation and maintenance

Highway Guardrails Rollforming Mill Video Case

These video cases showcase real installation and commissioning processes, allowing you to directly see Aogang’s extensive industry experience, professional service, and the stable performance of our equipment. Our production lines can be customized to meet customer requirements, offering one-stop solutions.
