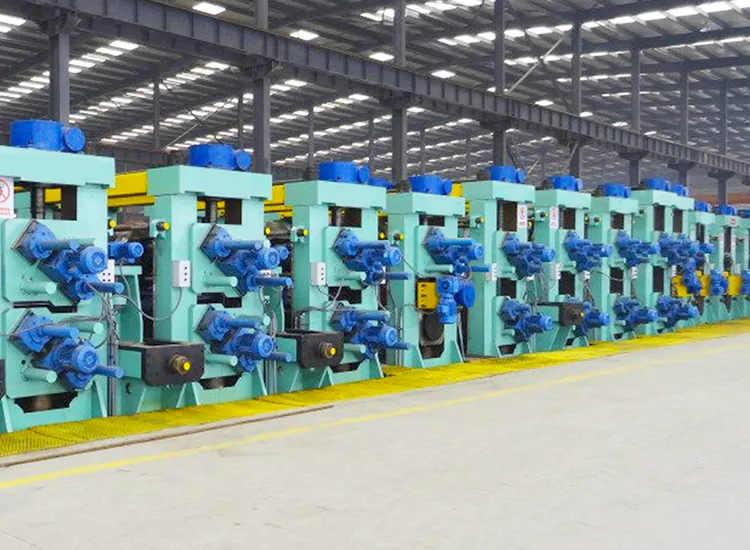

Cold Roll Forming Mill

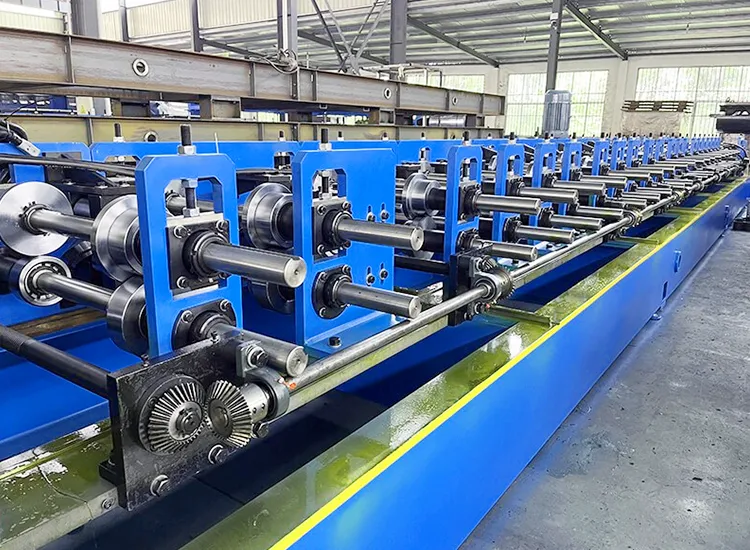

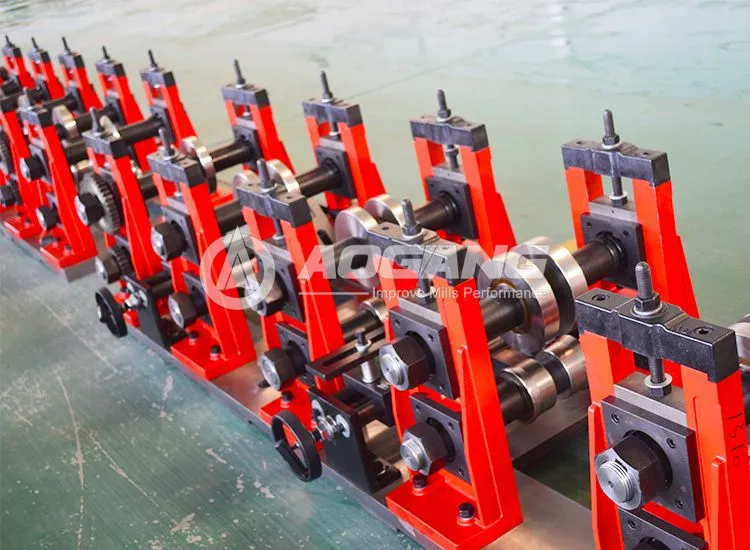

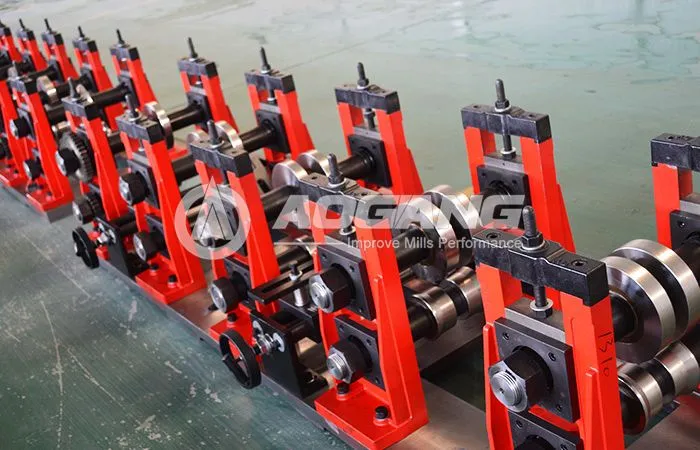

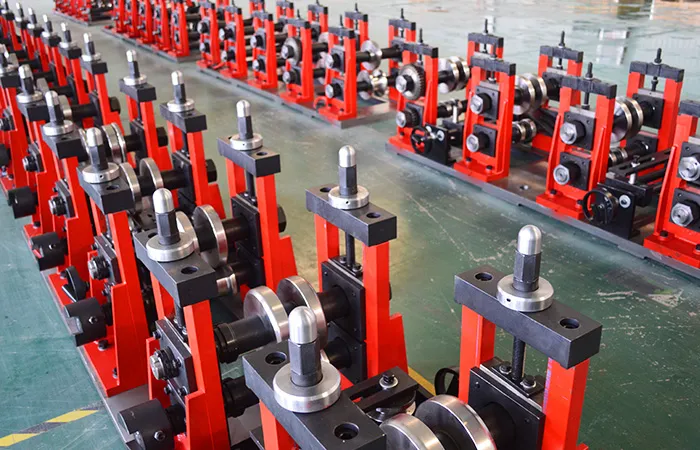

The cold roll forming mill is configured according to the required profile shape, material grade, strip thickness, product dimensions, production speed, and automation requirements. Precision-designed forming rollers gradually shape the strip without heating, helping maintain dimensional accuracy and minimize material waste. The forming stations can be engineered for standard profiles as well as customized steel sections based on customer drawings and production specifications.

For applications requiring multiple profile specifications, the mill can be equipped with an automatic fast changeover system. This enables efficient switching between different product sizes while reducing setup time and production downtime. A high-strength gearbox transmission system provides stable power transmission and reliable operation during continuous production, while the modular machine structure simplifies installation, maintenance, and future equipment upgrades.

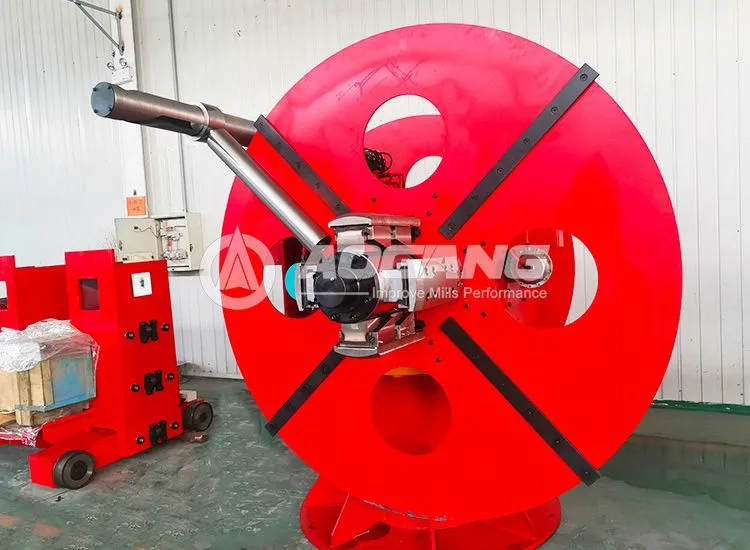

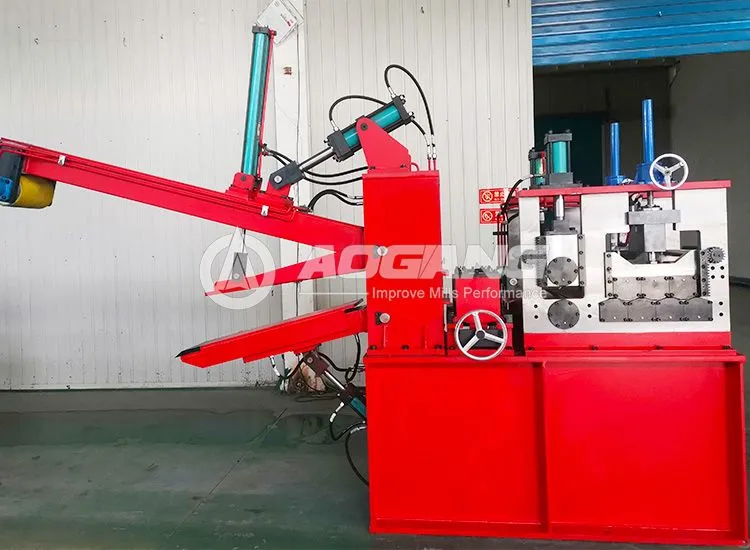

A complete cold roll forming line can include an automatic decoiler, feeding system, leveling unit, punching equipment, roll forming mill, hydraulic cutting system, and finished-product discharge or stacking system. The line configuration can be adjusted according to the production process and finished-product requirements, allowing different levels of automation and auxiliary equipment to be integrated into the system.

Applications

Construction: C/Z purlins, light steel keels, structural profiles, framing components, and other building sections.

Transportation: Highway guardrails, railway components, and other formed steel sections.

Automotive: Vehicle body components, structural parts, and customized steel sections.

Industrial Applications: Custom open-section profiles manufactured according to customer drawings, dimensions, and production requirements.

With over 30 years of experience, Aogang provides complete turnkey roll forming solutions, including equipment customization, production line configuration, plant layout design, installation, commissioning, and operator training. Each Cold Roll Forming Mill can be configured to match the customer's material, profile, production capacity, and automation requirements, providing a practical solution for stable and efficient profile production.

Frequently Asked Questions (FAQs)

What is a cold roll forming mill?

A cold roll forming mill is a continuous metal forming system that gradually shapes steel strips into a specified profile through multiple forming roller stations. It is commonly used to manufacture C, Z, U, M, L, and other open-section steel profiles without heating the material during the forming process.

How does a cold roll forming mill work?

Steel coil is loaded onto the decoiler and fed through the leveling and forming sections. The strip passes through multiple roller stations, with each station gradually changing its shape until the required profile is achieved. Depending on the product, punching, cutting, and finished-product collection can be integrated into the same production line.

What profiles can a cold roll forming mill produce?

Aogang cold roll forming mills can produce C, Z, U, M, and L profiles, as well as purlins, light steel keels, highway guardrails, structural sections, and other customized open-section profiles. The roll tooling and forming stations are designed according to the required profile dimensions.

What equipment is included in a complete cold roll forming line?

A complete line may include an automatic decoiler, feeding system, leveler, punching unit, cold roll forming mill, hydraulic cutting system, and finished-product discharge or stacking equipment. The configuration depends on the product, material, production speed, punching requirements, and desired automation level.

Can the cold roll forming mill be customized?

Yes. Aogang can customize the mill according to the required profile shape, material grade, strip thickness, product dimensions, production speed, punching pattern, cutting requirements, automation level, and factory layout. Customized roll tooling and auxiliary equipment can also be integrated according to the production process.

What is the difference between a cold roll forming mill and a complete roll forming line?

A roll forming mill refers primarily to the forming section that gradually shapes the steel strip through multiple roller stations. A complete roll forming line can include the mill together with decoiling, feeding, leveling, punching, cutting, and finished-product handling equipment to create a continuous production process.
