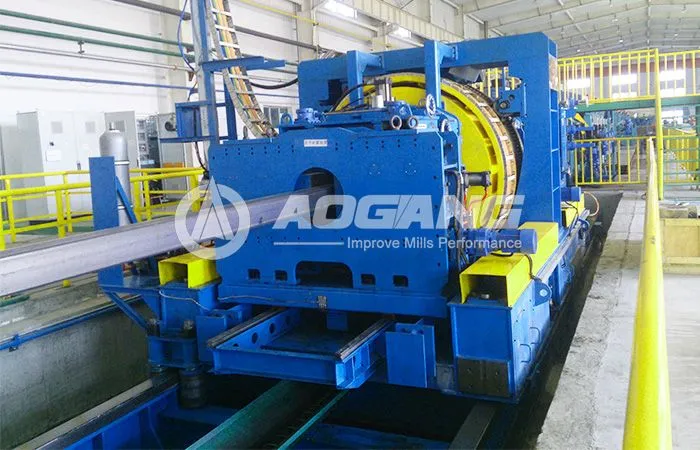

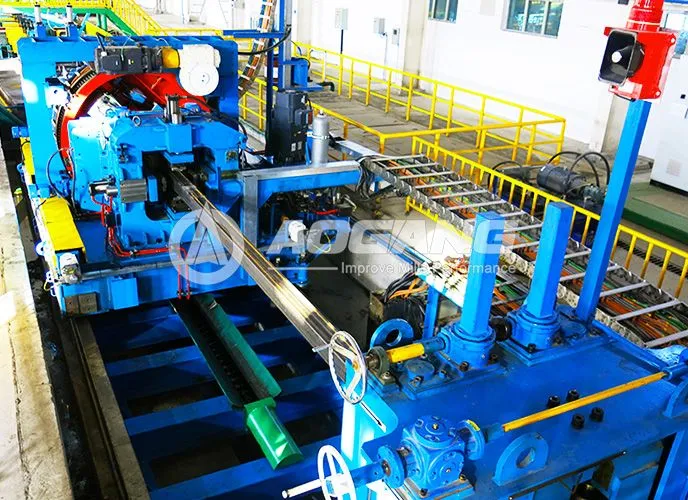

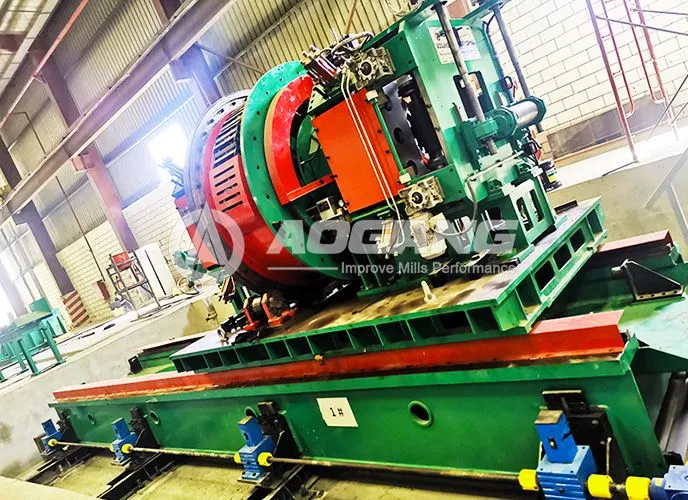

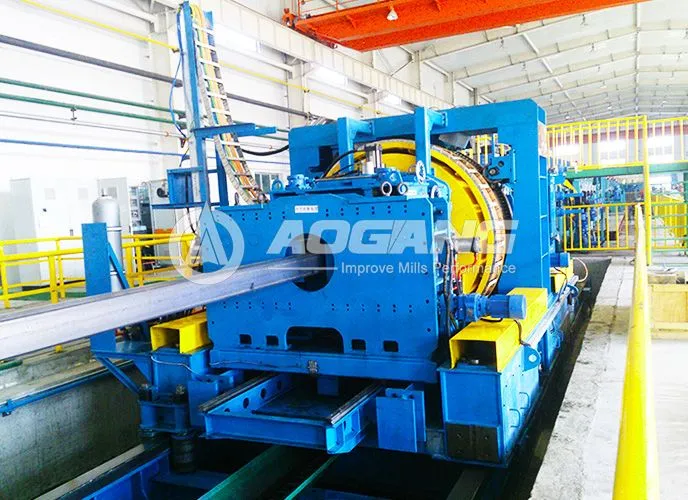

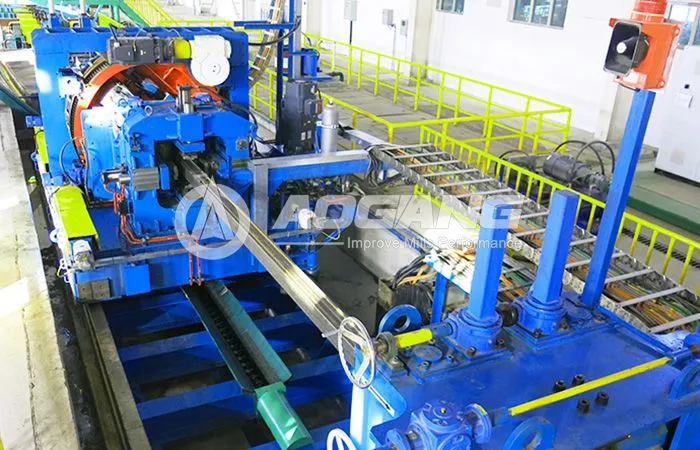

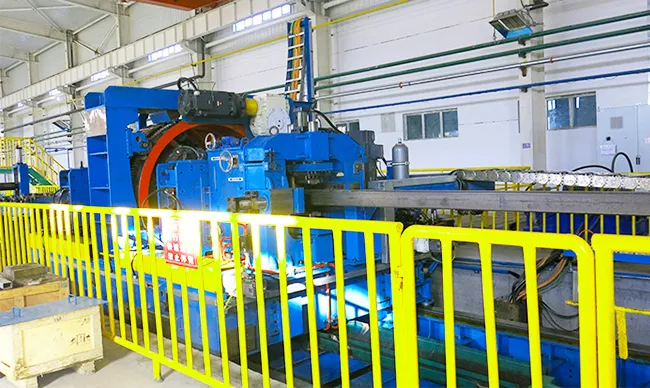

NC Milling Saw for Tube Mill

The NC milling saw is a high-precision and high-efficiency CNC cutting machine, specially designed for the end-face processing of steel pipes and other metal profiles. Equipped with Siemens motion control systems, it automatically programs the cutting path based on the tube’s cross-sectional shape, enabling intelligent profiling and milling. With cold milling technology, smooth cutting surfaces, and intelligent automation, it is widely used in welded pipe, structural tube, and fluid pipe production lines.

Inquire Now + Next Product +

Product Description

Aogang NC milling saw integrates advanced cold milling technology with Siemens servo drive systems to achieve fully automated and high-speed cutting.The system is designed with optimized feed curves, high-speed operation, and durable tooling, making it an ideal cutting solution for modern tube mills.

Operators only need to input the pipe specifications on the touch screen, and the system automatically calculates the best cutting parameters, greatly simplifying operation and reducing downtime.

FAQ

1. What is an NC milling saw?

An NC milling saw is a CNC-controlled cutting machine designed for precise end-face processing of steel pipes and metal profiles. It uses programmed cutting paths to achieve accurate and consistent results.

2. What types of pipes can the NC milling saw process?

The NC milling saw can be used for steel pipes and various metal profiles in welded pipe, structural tube, and fluid pipe production lines. Processing capability depends on the pipe size, wall thickness, and machine configuration.

3. How does the NC milling saw work?

The operator enters the pipe specifications through the touch screen. The control system calculates the cutting parameters and automatically controls the cutting path according to the pipe cross-sectional shape.

4. What are the advantages of cold milling technology?

Cold milling provides precise machining without the thermal effects associated with conventional hot cutting methods. It helps produce smooth and accurate cutting surfaces while reducing heat-related deformation.

5. Can the NC milling saw be integrated into a tube mill line?

Yes. The NC milling saw can be integrated into tube mill production lines for automated pipe cutting and end-face processing, helping improve production efficiency and reduce manual operation.

6. Is the NC milling saw suitable for different pipe sizes?

Yes. The machine can be configured according to the required pipe diameter, wall thickness, profile shape, cutting length, and production requirements.

7. How is the NC milling saw operated?

Operators enter the required pipe specifications through the touch screen. The system automatically calculates the relevant cutting parameters, simplifying operation and reducing setup time.

Product Advantages

Cold Milling Cutting Process

Minimizes heat during cutting, prevents stress deformation, and keeps pipe walls intact.

High-quality Cutting Surface

Smooth, burr-free edges save secondary processes like chamfering or grinding, reducing cost and time.

Efficient Production Speed

High blade speed and dual-blade synchronous cutting shorten cycle time and match modern tube mill line speed.

Intelligent Automation

CNC module with optimized software allows fully automatic operation with easy size input.

User-friendly & Low Maintenance

Touch-screen interface, intuitive operation, minimal maintenance required.

Full Siemens Servo Motor

±2mm Length Accuracy , Ensures precise, stable, and reliable operation.

NC Milling Saw Technical Parameters

Customized as per customer requirements

Applicable Pipe OD	Φ165 mm – Φ630mm (customizable)
Pipe Wall Thickness	3 mm – 20 mm
Cutting Speed	Up to 80 m/min (line speed)
Cutting Method	Cold milling with dual saw blades
Drive System	Siemens servo control
Noise Level	≤80 dB
Control Interface	Siemens PLC + HMI touch screen
Cooling & Lubrication	Circulating water & oil system
