Polish Auto Customer Purchases Steel Pipe Mill. The customer in this project is a well-known European automotive parts manufacturer with over 30 years of experience supplying high-strength steel structural components to major automotive brands. Its core products include door impact beams, body reinforcement components, battery tray frames, and other critical safety parts. To support production of these precision steel components, the company acquired Aogang’s steel pipe making machine, ensuring high-quality, efficient, and reliable pipe production.

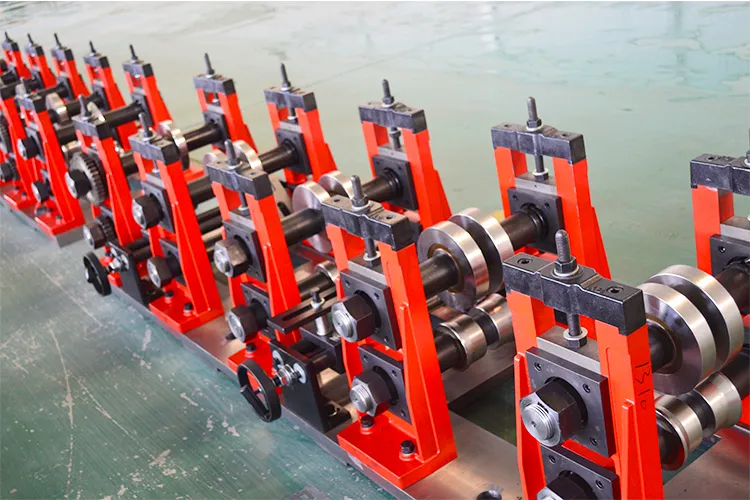

Servo motor drive combined with a high-rigidity roll shaft system achieves forming accuracy up to ±0.05 mm, meeting the strict tolerance requirements of automotive safety parts.
Equipped with a laser online thickness gauge and vision inspection system for real-time dimension monitoring, ensuring zero defective products.
Optimized roll material and heat treatment process for ultra-high-strength steel (UHSS) processing, effectively minimizing material springback.
Special straightening mechanism ensures part straightness, meeting the assembly precision requirements of body structure components.
Fully automated process: decoiling → punching → roll forming → cutting → stacking, enabling unmanned operation and boosting efficiency by 40%.
Core components use German-imported bearings and wear-resistant alloy steel rolls, providing a service life of over 15 years.
Energy recovery system reduces power consumption by 20%, compliant with EU CE energy efficiency standards.
The production line can handle a wide range of tube sizes and custom profiles, allowing quick format changeovers for small or large batches, meeting diverse automotive manufacturing requirements.
Parameters can be customized according to customer requirements.
| Item | Parameter |
| Applicable Materials | High-Strength Steel (HSS/UHSS), Aluminum Alloy |
| Material Strength Range | 300 MPa – 1500 MPa |
| Material Thickness | 0.8 mm – 4.0 mm |
| Forming Width | 50 mm – 300 mm |
| Production Speed | 6 – 30 m/min (adjustable) |
| Number of Forming Stations | 12 – 20 (depending on section complexity) |
| Cutting Accuracy | ±0.1 mm |
| Control System | Siemens PLC + 10" Touch Screen |
| Total Installed Power | 75 kW |
| Overall Line Dimensions | 25 m × 4 m × 2.5 m |
1. Steel Coils
Grade: DP600 / DP800 dual-phase steel, Martensitic Steel (MS1200), 22MnB5 hot stamping steel Thickness Tolerance: ±0.03 mm
Width Tolerance: ±0.5 mm
Surface Treatment: Galvanized / Al-Si coated (for corrosion resistance)
2. Auxiliary Materials
Lubricant: High-viscosity forming oil (to reduce roll wear)
